Mandrel for Steel Factory
Hunan Kemeida Electric Co., Ltd.- Certification:CE, ISO 9001:2000
- Casting Metal:Cast Steel
- Casting Form Material:Metal
- Casting Method:Special Casting
- Transport Package:Wooden Case
- Trademark:KMD
Base Info
- Production Capacity:6month,1set
- Origin:China
- Model NO.:pay-off reel
Description
Basic Info.
Model NO. pay-off reel Origin China Production Capacity 6month/1setProduct Description

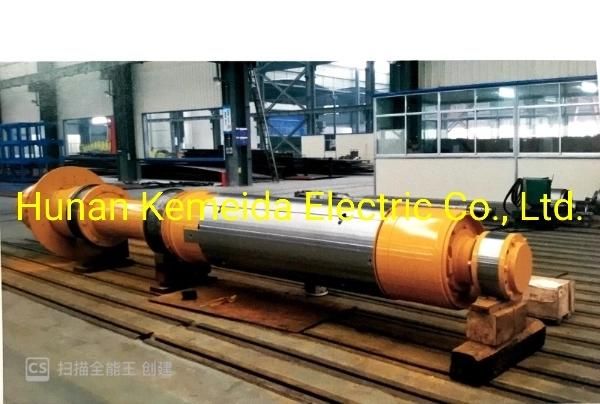

Mandrel for steel factoryProduct introduction:
Product name: hot rolling mandrel
Coiling tempreture: 550-850ºC

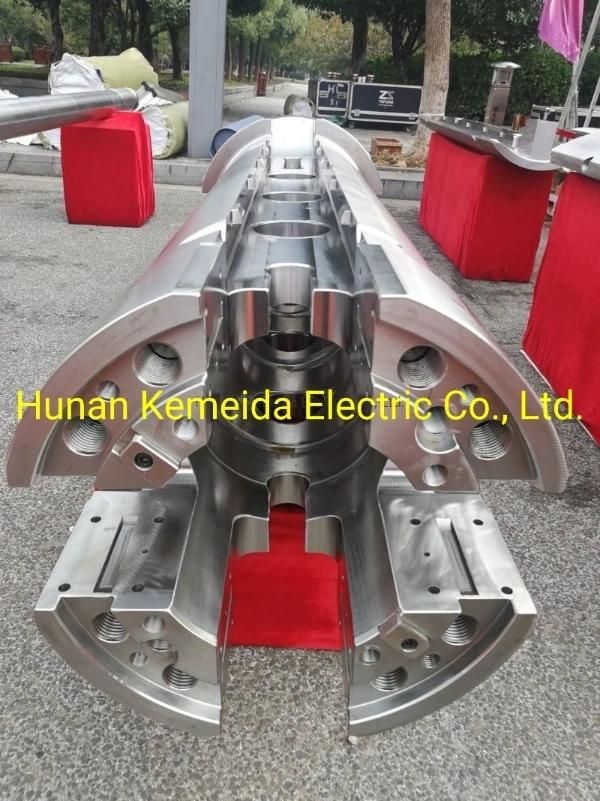

Main parts: Mandrel body, spreader bar, segment, link, wedge and spreading cylinder.

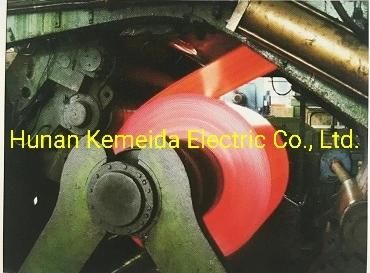

Application: coiling hot coils
Description: the mandrel is the key part of hot rolling tension reel for coils.
The Spreading Principle Of Mandrel: spreader bar moves inside mandrel body in axial director driven by hydraulic cylinder. the slant of spreader bar pushes the wedge inside radial hole of mandrel body to move outward.the wedge upper surface pushes segment to expand outward.wedge diameter will expand,after coiling coils,spreader bar moves in the opposite direction driven by hydraulic cylinder,and pulls segment inward to shrink through link.wedge moves inward and mandrel diameter becomes smaller to discharge state. then you can begin to discharge coil.

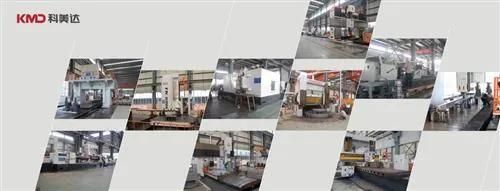

KMD introduction:
Location: Yueyang
Established year: 1997
Staffs: 800
Engineer members: 180
Main lines: Electromagnetic liftings, electromagnetic sirrers, magnetic separators, Cable reels, Mandrels, Oil film bearing seat, etc.
Export countries: over 40 countries including Vietnam, Pakistan, Phillipines, India, Korea, Myanmar, Laos, Thailand, Mylaysia, Russia, Ukrain, Indonesia, Turkey, Spain, USA, etc.
Certifications: CE, ISA, ISO9001
Applications: Metallurgy, Electricity, Mining, Cement industry, Sugar industry, Food, Building materials, Traffic, Light industry, etc.
Welcome to visit our factory!!
Product photos
