• Surface Treatment：Polishing
• Surface Roughness：Ra0.4
• Standard：GB
• Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
• Trademark：dingli
• Origin：China
• Production Capacity：100

Basic Info.

Surface Treatment Polishing Surface Roughness Ra0.4 Standard GB Certification CE, RoHS, ISO 9001:2000, ISO 9001:2008 Trademark dingli Origin China Production Capacity 100

Product Description

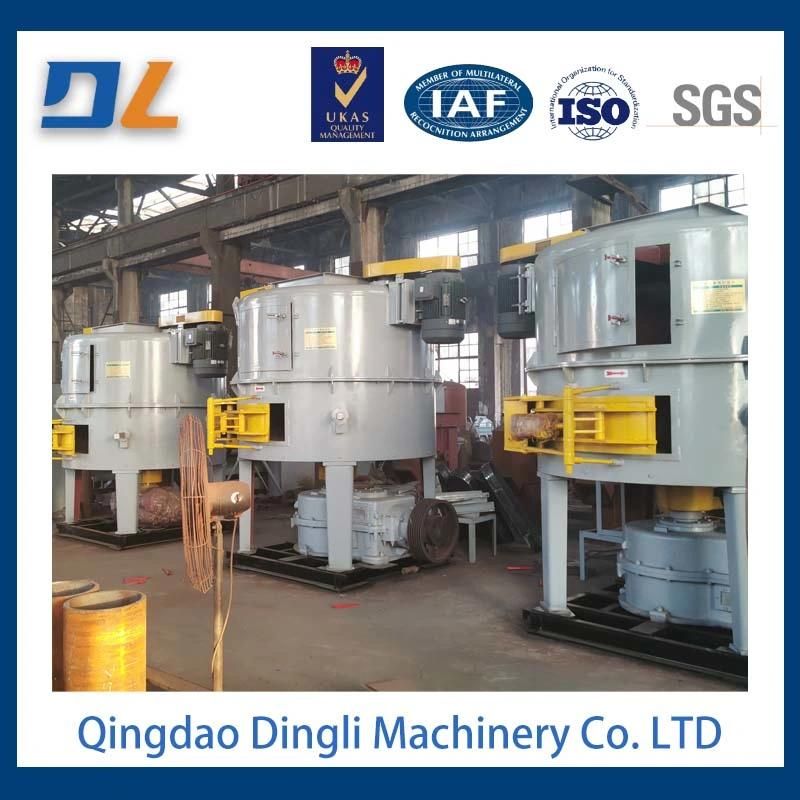

GS series high-efficiency rotor sand mixer has the following characteristics:

1. All components have an unusually stable structure.
2. The gearbox is driven by a fast hydraulic coupling to protect the mixer.
3. Minimal maintenance needs. With automatic lubrication device.
4. Wear-resistant parts are easy to access and replace.
5. Machined sites and bases.
6. The mixer fits accurately with the chassis and the wall to minimize wear.
7. Large output, high energy utilization cost, especially economic.
8. Sand quality is stable, uniform and loose.
9. Protect motor with fast hydraulic coupling. Triangle belt direct drive.
10. Large side sand mouth, quick and clean automatic sand.
11. Accurate formula weighing, automatic temperature measurement and moisture control.
12. Molding sand has stable quality and excellent performance.
13. Special auxiliary material adding method and strong mixing effect ensure short cycle high yield.
14. Water is radially injected into the mixture, and the molding sand is not agglomerated.
15. Excellent heating effect can reduce the amount of shadow soil consumption.
16 because of the new sand can be used to spray feeding method. The layout of sand mixing machine is almost not limited by space and installation conditions, so that the original sand treatment system is reformed. It is easy to replace the original sand mixer with GS series high speed rotor mixer.
17. The auxiliary materials are directly sprayed into the wet sand to improve the mixing and blasting efficiency.
18. It can reduce the loss of auxiliary materials caused by exhaust dust removal system.
19. High operational safety.
20. Good working environment, sealed and dustproof, no ash loss.

Technical parameters:

Product Model G520-55 GS23-75 GS25-12
Name high-efficiency rotor sand mixing machine High-efficiency rotor sand mixing machine high-efficiency rotor sand mixing machine
Diameter (mm) φ2000 φ2240 φ2500
- Feeding quantity (kg) 1200-1500 1800-2500 2800-3500
Productivity (TH) 25-30 96-50 55-70
Main motor power (KW) 55 75 132
Rotor machine power (KW) 2x30 2x45 2x55
Spindle speed (Rmin) 31.72 27.72 27.32
