• Model NO.：Die Cast Aluminium
• Pressure Chamber Structure：Vertical
• Tolerance Grade：CT5-7 for Die Cast Aluminium
• Casting Surface Quality Level：Ra3.2-6.3 for Die Cast Aluminium
• Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008, as Customer Requests
• Casting Material：A380, ADC12, or as Clients Require
• Manufacturing Process：Die Casting, Cast Aluminum
• Casting Tolerance：CT5-7 for Aluminium Die Casting Parts
• Machining Process：CNC Machining, Lathing, Milling, Turning, Boring,
• Machining Tolerance：up to It7, Ra 0.8~3.2, According to Customer Req
• Surface Treatment：Powder Coating, Painting etc. as Clients Require
• Rough Surface Roughness：Ra1.6-25, or as Customer Request
• Package of Die Cast Aluminium：Multilayer Wooden Box,Pallet, with Big Plastic Bag
• Lead Time：45 Days for Die Cast Aluminium
• Service：Custom Die Cast Aluminium Product
• Transport Package：Multilayer Wooden Box with Big Plastic Bag Inside
• Specification：Die Cast Aluminium
• Trademark：Matech
• Origin：Zhejiang
• HS Code：8432900000
• Production Capacity：150 Tons,Month of Die Cast Aluminium

Basic Info.

Model NO. Die Cast Aluminium Pressure Chamber Structure Vertical Tolerance Grade CT5-7 for Die Cast Aluminium Casting Surface Quality Level Ra3.2-6.3 for Die Cast Aluminium Certification CE, RoHS, ISO 9001:2000, ISO 9001:2008, as Customer Requests Casting Material A380, ADC12, or as Clients Require Manufacturing Process Die Casting, Cast Aluminum Casting Tolerance CT5-7 for Aluminium Die Casting Parts Machining Process CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Machining Tolerance up to It7, Ra 0.8~3.2, According to Customer Req Surface Treatment Powder Coating, Painting etc. as Clients Require Rough Surface Roughness Ra1.6-25, or as Customer Request Package of Die Cast Aluminium Multilayer Wooden Box/Pallet, with Big Plastic Bag Lead Time 45 Days for Die Cast Aluminium Service Custom Die Cast Aluminium Product Transport Package Multilayer Wooden Box with Big Plastic Bag Inside Specification Die Cast Aluminium Trademark Matech Origin Zhejiang HS Code 8432900000 Production Capacity 150 Tons/Month of Die Cast Aluminium

Product Description

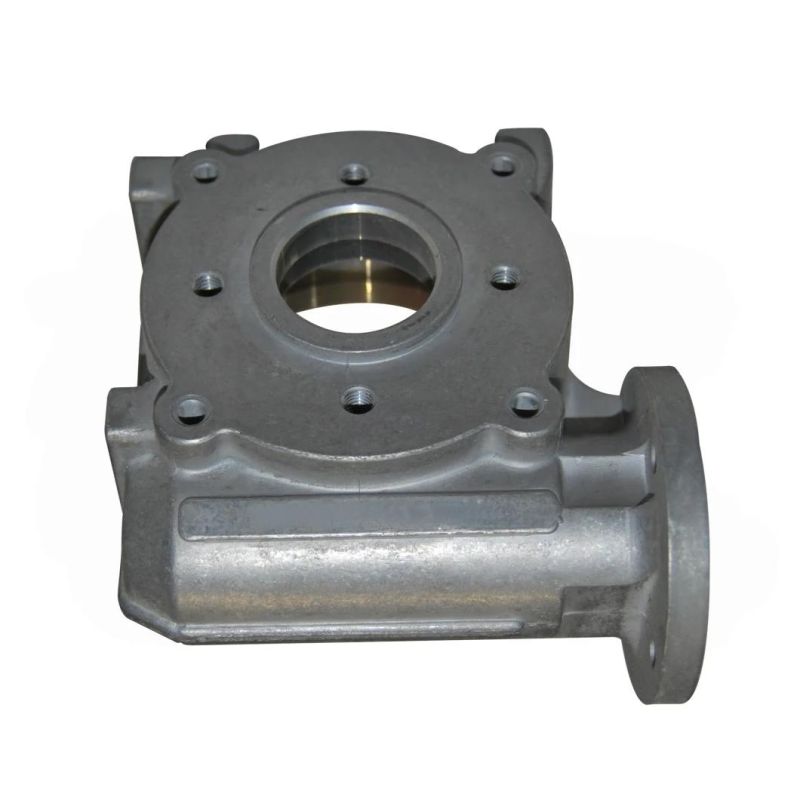

Competitive Casting Product Custom Die Cast Aluminium

Item Name	Competitive Casting Product Custom Die Cast Aluminium
General Products         Application/Service Area	Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine,  transportation equipment, Valve and Pump system, Agriculture machine  metal Parts, engine bracket, truck chassis bracket, gear box , gear housing ,  gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe,  hydraulic valve, valve housing ,Fitting , flange, wheel, fly wheel,  oil pump housing, starter housing, coolant pump housing, transmission  shaft , transmission gear, sprocket, chains etc.
Main blank Process  for Aluminum Casting	Die Casting, Permanent Molding /Gravity Casting, Low Pressure Casting,  High Pressure Casting/Sand Casting, Extrusion Casting etc.
Blanks Tolerance -Casting  Tolerance	CT4-6 for Permanent Molding, Die Casting, CT 9-11 for Sand Casting
Applicable Material for Die Cast Aluminium or Zinc Alloy	Aluminum Alloy A380, ADC12; Zinc Alloy Zamak 3, Zamak 5, Zamak 7, Zamak 2 etc. Or according to customer requirements
Casting Blank Size   /Dimensions	2 mm-1500mm / 0.08inch-60inch , or according to customer requirements
Casting Blank Weight	Range from 0.01kg-50kg
Applicable Machining Process	CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/  Broaching/Reaming /Grinding/Honing and  etc.
Machining Tolerance	From 0.005mm-0.01mm-0.1mm
Machined Surface Quality	Ra 0.8-Ra3.2 according to customer requirement
Applicable Finish  Surface Treatment	Shot/sand blast, polishing,  Primer Painting , Powder coating, ED- Coating,   Finish Painting, Anodize (White or Black Color)
MOQ for mass production	For Die Cast Aluminium: 100pcs for big parts, 1000pcs for small parts; as clients required For Machining: 50pcs
Lead Time	45 days for Die Cast Aluminium




   FAQ:

1 What do you do?We are a professional manufacturer with over 15 years' export experience for designing and producing vehicle machinery parts. Focus on cost reduction, function approach, production feasibility for your projects!
 2. How can I get some samples? If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.

3. Can you make Die Cast Aluminium according to our drawing?Yes, we can make Die Cast Aluminium according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.

4. Can you make Die Cast Aluminium based on our samples?Yes, we can make measurement based on your samples to make drawings for tooling making.

5. What's your quality control device in house?We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of Die Cast Aluminium.
