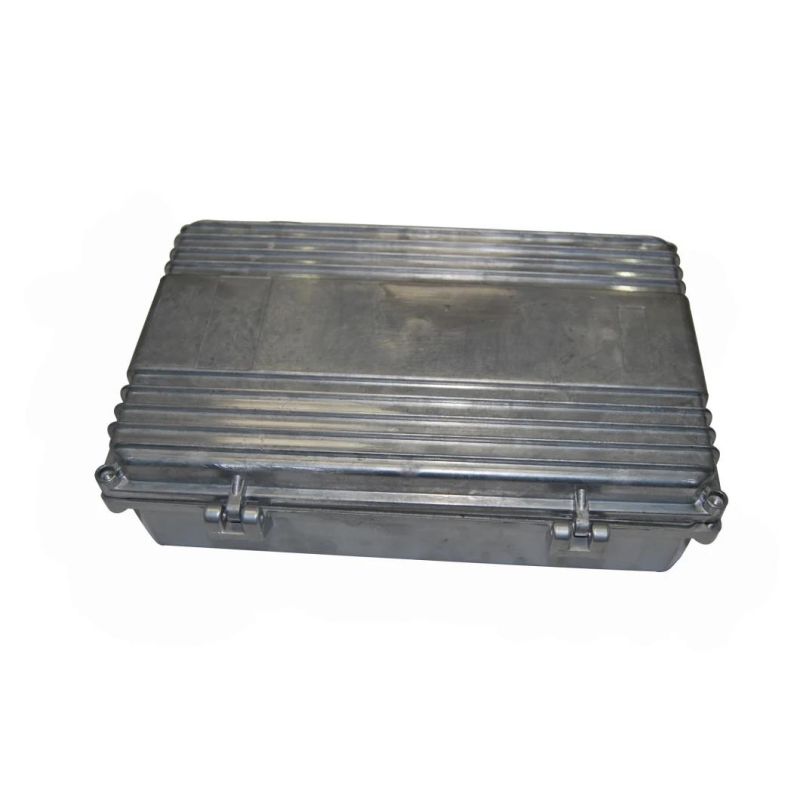

China Casting Leader Custom Die-Cast Aluminium Die Cast Housing
Shanghai Matech Machinery Manufacture Corporation Ltd.- Die Casting Machine Type:Cold Chamber Die Casting Machine
- Die Casting Method:Precision Die Casting
- Application:Vehicle, Agriculture Machinery, Industry
- Machining:CNC Machining
- Material:Aluminum Alloy
- Surface Preparation:Powder Coating, Painting etc.
Base Info
- Model NO.:Die Cast Housing
- Pressure Chamber Structure:Vertical
- Tolerance Grade:CT5-7 for Die Cast
- Casting Surface Quality Level:Ra3.2-6.3
- Certification:CE, RoHS, ISO 9001:2000, ISO 9001:2008, as Clients Require
- Casting Material:A380, ADC12, or as Clients Require
- Manufacturing Process:Die Casting, Option Gravity Casting, Low Pressure
- Casting Tolerance:CT5-7 for Aluminium Die Cast Housing
- Machining Process:CNC Machining, Lathing, Milling, Turning, Boring,
- Machining Tolerance:up to It7, Ra 0.8~3.2, According to Customer Req
- Surface Treatment:Powder Coating, Painting etc. as Clients Require
- Rough Surface Roughness:Ra3.2-25
- Package:Multilayer Wooden Box,Pallet, with Big Plastic Bag
- Lead Time:45 Days for Aluminium Die Cast Housing
- Service:Custom Aluminium Die Cast Housing
- Transport Package:Multilayer Wooden Box with Big Plastic Bag Inside
- Specification:SGS, IOS9001
- Trademark:Matech
- Origin:Zhejiang
- HS Code:8432900000
- Production Capacity:150 Tons,Month of Die Cast Housing
Description
Basic Info.
Model NO. Die Cast Housing Pressure Chamber Structure Vertical Tolerance Grade CT5-7 for Die Cast Casting Surface Quality Level Ra3.2-6.3 Certification CE, RoHS, ISO 9001:2000, ISO 9001:2008, as Clients Require Casting Material A380, ADC12, or as Clients Require Manufacturing Process Die Casting, Option Gravity Casting, Low Pressure Casting Tolerance CT5-7 for Aluminium Die Cast Housing Machining Process CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Machining Tolerance up to It7, Ra 0.8~3.2, According to Customer Req Surface Treatment Powder Coating, Painting etc. as Clients Require Rough Surface Roughness Ra3.2-25 Package Multilayer Wooden Box/Pallet, with Big Plastic Bag Lead Time 45 Days for Aluminium Die Cast Housing Service Custom Aluminium Die Cast Housing Transport Package Multilayer Wooden Box with Big Plastic Bag Inside Specification SGS, IOS9001 Trademark Matech Origin Zhejiang HS Code 8432900000 Production Capacity 150 Tons/Month of Die Cast HousingProduct Description
China Casting Leader Custom Die-Cast Aluminium Die Cast HousingItem Name | China Casting Leader Custom Die-Cast Aluminium Die Cast Housing |
General Products Application/Service Area | Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, Agriculture machine metal Parts, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve, valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc. |
Main blank Process | Die Casting, Permanent Molding /Gravity Casting, Low Pressure Casting, High Pressure Casting/Sand Casting, Extrusion Casting etc. |
Blanks Tolerance -Casting Tolerance | CT4-6 for Permanent Molding, Die Casting, CT 9-11 for Sand Casting |
Applicable Material for casting | A356.0/ZL101,GAlSi7Mg (3.2371.61)/AlSi7Mg/, A-S7G, Al Si Alloy, Al Cu Alloy ZL201 Al Mg Alloy ZL301,ZL302, Al Zn Alloy ZL401Zn Alloy Zamak 3, Zamak 5, Zamak 7, Zamak 2 Or according to customer requirements |
Casting Blank Size /Dimensions | 2 mm-1500mm / 0.08inch-60inch , or according to customer requirements |
Casting Blank Weight | Range from 0.01kg-50kg |
Applicable Machining Process | CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc. |
Machining Tolerance | From 0.005mm-0.01mm-0.1mm |
Machined Surface Quality | Ra 0.8-Ra3.2 according to customer requirement |
Custom made service | YES. aluminum alloy die cast |
Applicable Finish | Shot/sand blast, polishing, Primer Painting , Powder coating, ED- Coating, Finish Painting, Anodize (White or Black Color) |
MOQ for mass production | For Aluminium Die Cast Housing: 100pcs, or as clients required For Machining: 50pcs |
Lead Time | 45days from the receipt date of Aluminium Die Cast Housing |
FAQ:
1. What do you do?We are a professional manufacturer with over 15 years' export experience for designing and producing vehicle machinery parts.
2. How can I get some samples? If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.
3. Can you make casting according to our drawing?Yes, we can make casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.
4. Can you make casting based on our samples?Yes, we can make measurement based on your samples to make drawings for tooling making.
5. What's your quality control device in house?We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of cast housing.
