• Model NO.：Casting Aluminium
• Pressure Chamber Structure：Vertical
• Tolerance Grade：CT5-7 for Casting Aluminium
• Casting Surface Quality Level：ASTM,JIS,DIN,GB,ANSI etc.
• Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008, as Customers Request
• Casting Material：Zl101, A356, a-S7g, Alsi7mg, ADC12 etc.
• Manufacturing Process：Die Casting, Option Gravity Casting, Low Pressure
• Casting Tolerance：CT5-7 for Casting Aluminium
• Machining Process：CNC Machining, Lathing, Milling, Turning, Boring,
• Machining Tolerance：up to It7, Ra 0.8~3.2, According to Customer Req
• Surface Treatment：Powder Coated, Paint etc. as Customers Request
• Rough Surface Roughness：Ra3.2-25
• Package：Multilayer Wooden Box,Pallet, with Big Plastic Bag
• Lead Time：45 Days for Casting Aluminium
• Service：Custom Casting Aluminium
• Transport Package：Multilayer Wooden Box with Big Plastic Bag Inside
• Specification：Casting Aluminium
• Trademark：Matech
• Origin：Zhejiang
• HS Code：8432900000
• Production Capacity：150 Tons,Month of Casting Aluminium

Basic Info.

Model NO. Casting Aluminium Pressure Chamber Structure Vertical Tolerance Grade CT5-7 for Casting Aluminium Casting Surface Quality Level ASTM/JIS/DIN/GB/ANSI etc. Certification CE, RoHS, ISO 9001:2000, ISO 9001:2008, as Customers Request Casting Material Zl101, A356, a-S7g, Alsi7mg, ADC12 etc. Manufacturing Process Die Casting, Option Gravity Casting, Low Pressure Casting Tolerance CT5-7 for Casting Aluminium Machining Process CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Machining Tolerance up to It7, Ra 0.8~3.2, According to Customer Req Surface Treatment Powder Coated, Paint etc. as Customers Request Rough Surface Roughness Ra3.2-25 Package Multilayer Wooden Box/Pallet, with Big Plastic Bag Lead Time 45 Days for Casting Aluminium Service Custom Casting Aluminium Transport Package Multilayer Wooden Box with Big Plastic Bag Inside Specification Casting Aluminium Trademark Matech Origin Zhejiang HS Code 8432900000 Production Capacity 150 Tons/Month of Casting Aluminium

Product Description

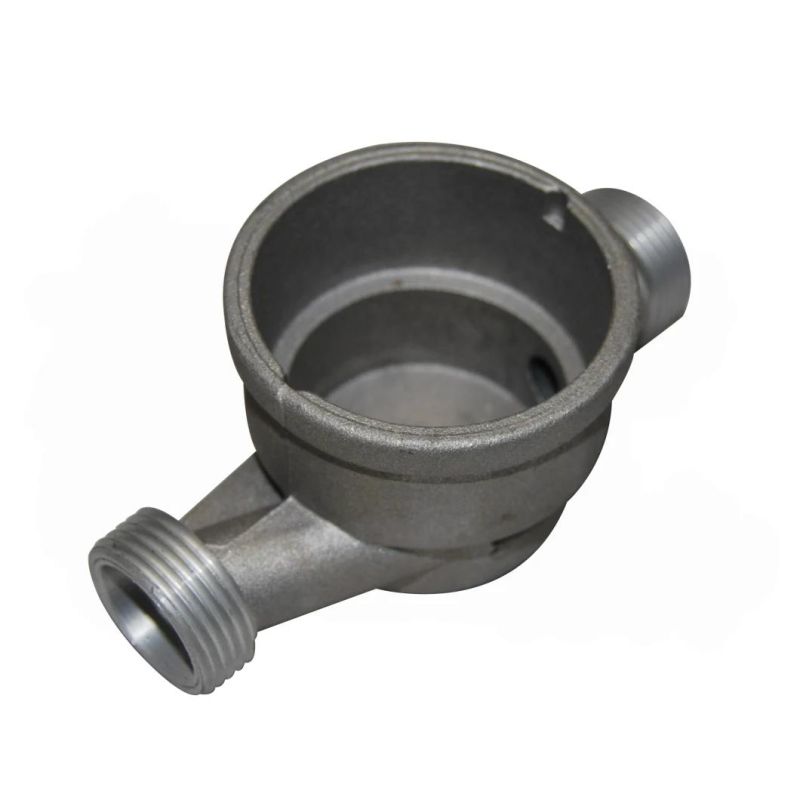

Competitive Precision Metal Auto Parts Casting Aluminium

Item Name	Competitive Precision Metal Auto Parts Casting Aluminium
General Products         Application/Service Area	Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine,  transportation equipment, Valve and Pump system, Agriculture machine  metal Parts, engine bracket, truck chassis bracket, gear box , gear housing ,  gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe,  hydraulic valve, valve housing ,Fitting , flange, wheel, fly wheel,  oil pump housing, starter housing, coolant pump housing, transmission  shaft , transmission gear, sprocket, chains etc.
Main blank Process for Aluminum Casting	Die Casting, Permanent Molding /Gravity Casting, Low Pressure Casting,  High Pressure Casting/Sand Casting, Extrusion Casting etc.
Blanks Tolerance -Casting  Tolerance	CT4-6 for Permanent Molding, Die Casting, CT 9-11 for Sand Casting
Applicable Material for casting	A356.0/ZL101,GAlSi7Mg  (3.2371.61)/AlSi7Mg/, A-S7G, Al Si Alloy,  Al Cu Alloy ZL201 Al Mg Alloy ZL301,ZL302,   Al Zn Alloy ZL401Zn Alloy Zamak 3, Zamak 5, Zamak 7, Zamak 2 Or according to customer requirements
Casting Blank Size  /Dimensions	2 mm-1500mm / 0.08inch-60inch , or according to customer requirements
Casting Blank Weight	Range from 0.01kg-50kg
Applicable Machining Process	CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/  Broaching/Reaming /Grinding/Honing and  etc.
Machining Tolerance	From 0.005mm-0.01mm-0.1mm
Machined Surface Quality	Ra 0.8-Ra3.2 according to customer requirement
Applicable Heat Treatment	T5~T6
Applicable Finish Surface  Treatment	Shot/sand blast, polishing,  Primer Painting , Powder coating, ED- Coating,   Finish Painting, Anodize (White or Black Color)
MOQ for mass production	For Casting Aluminium: 200pcs For Machining: 50pcs
Lead Time	45 days from the receipt date of Casting Aluminium


FAQ:

1.What do you do?We are a professional manufacturer with over 15 years' export experience for designing and producing vehicle machinery parts.
 2. How can I get some samples? If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.

3. Can you make Casting Aluminium according to our drawing?Yes, we can make Casting Aluminium according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.

4. Can you make Casting Aluminium based on our samples?Yes, we can make measurement based on your samples to make drawings for tooling making.

5. What's your quality control device in house?We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of Casting Aluminium.
