Spaceflight Forgings Cayenne Drive Shaft Machine Tool Forming Technology with Forging ...

Nanjing Descaling Technology Co., Ltd.
  • Processing Object:Metal
  • Molding Style:Forging
  • Application:Machinery Parts
  • Material:Steel
  • Surface Treatment:Sand Blasting
  • Forging Tolerance:+,-0.1mm

Base Info

  • Model NO.:DME-100-100
  • Standard:JIS
  • Certification:CE, ISO 9001:2000, ISO 9001:2008
  • Transport Package:Wooden Case
  • Specification:1300*1500*1360
  • Trademark:Descaling Technology
  • Origin:China
  • HS Code:8424899990
  • Production Capacity:500 Sets,Year

Description

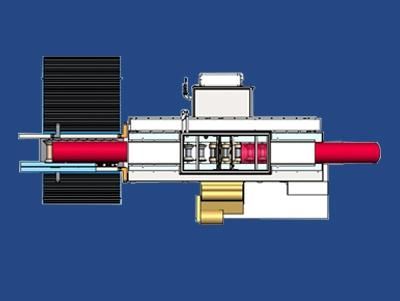

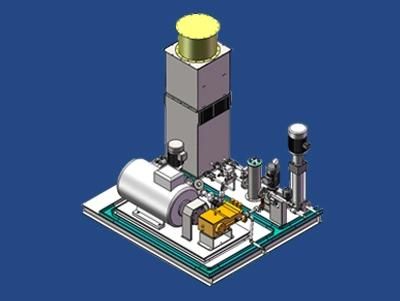

Spaceflight Forgings Cayenne Drive Shaft Machine Tool Forming Technology with Forging Prolong Die Life Oxide Skin Removal MachineThe descaling machine from Descaling technology, the main body of the equipment is composed of a pressure system, a transmission system and a filtration system. The three systems jointly use the principle of high-pressure water descaling to complete the cleaning process of the forging scale.The frequency conversion motor and the chain constitute the transmission system, which is responsible for transporting the forgings for the cleaning process. The transmission speed of the chain can be adjusted to ensure that the temperature of the forgings after cleaning is small, which is conducive to subsequent forging.Spaceflight Forgings Cayenne Drive Shaft Machine Tool Forming Technology with Forging Prolong Die Life Oxide Skin Removal MachineSpaceflight Forgings Cayenne Drive Shaft Machine Tool Forming Technology with Forging Prolong Die Life Oxide Skin Removal MachineThe descaling machine is equipped with two water tanks. The water tank has a built-in filter screen and a net basket to form the filter system of the equipment to prevent oxide scale from entering the water pump and affect the service life of the equipment. At the same time, it is equipped with a magnetic shovel to clean the oxide scale in the water tank.


Spaceflight Forgings Cayenne Drive Shaft Machine Tool Forming Technology with Forging Prolong Die Life Oxide Skin Removal Machine


1, The main body of the water tank is made of 304 stainless steel

2, The exit and entrance adopt integral welding with high parallelism

3, Front and back built-in baffle, less splash, easy maintenance

4,The nozzle mounting seat is welded with stainless steel, which is easy to maintain

5,Comprehensive treatment of oxide skin, less lower the temperature

6,After removing the oxide scale, the metallographic structure of the product has no chang

7,Equipped with workstation, automatically remove oxide scale, reduce maintenance

8,Equipped with cooling tower, multiple filtration


Spaceflight Forgings Cayenne Drive Shaft Machine Tool Forming Technology with Forging Prolong Die Life Oxide Skin Removal Machine

 NameModelWorkstation size(mm)Equipment sizeTotal power of equipmentBrand of high pressure pumpHigh pressure water pump flow100KG Extrahigh pressure descaling machineDME-100-1003000*2000*2000Refer to the model40KWITALY60L/minMotor brandMotor powerCooling tower brandCooling tower powerElectric brandBrand of multistage magnetic separatorPower of multi-stage magnetic separatorSIEMENS30KWLITAI2KW/LITAI200WSuitable for bar diameter(mm)Maximum width after blank makingNumber of nozzlesMaterialTransmission motorInverter brandTransmission mode50-2003006304 stainlessOptionSIEMENSOption

Spaceflight Forgings Cayenne Drive Shaft Machine Tool Forming Technology with Forging Prolong Die Life Oxide Skin Removal MachineSpaceflight Forgings Cayenne Drive Shaft Machine Tool Forming Technology with Forging Prolong Die Life Oxide Skin Removal MachineSpaceflight Forgings Cayenne Drive Shaft Machine Tool Forming Technology with Forging Prolong Die Life Oxide Skin Removal Machine



Spaceflight Forgings Cayenne Drive Shaft Machine Tool Forming Technology with Forging Prolong Die Life Oxide Skin Removal Machine


1. What kind of forging pieces is descaling machine suitable for?

The descaling machine is applicable to the forging production line. It can clean the oxide scale generated after heating by induction furnace and effectively improve the surface quality of products.
 2. How to choose the model of descaling machine? Can it be customized?You can select the corresponding standard model through the diameter of the round bar and the size of the billet after making. For details, please check the parameter navigation bar of the webpage. If there is a need for customization, we can also provide customized services according to the customer's raw material size and process.
 3. How to daily maintain descaling equipment?We will recommend that customers regularly clean the oxide scale in the water tank. You only need to use a magnetic shovel to remove most of the oxide scale. But also regularly replace the water in the water tank to ensure a normal filtration cycle.
 4. Does the principle of high-pressure water descaling change the metallographic structure?This method has been tested by a third-party organization. The test report shows that there is no change in the metallographic structure before and after cleaning, which has no effect on the later process.
 5. How effective is the descaling machine? Is there a reference video for descaling equipment?Descaling Technology has served more than a thousand forging factories in China, and received a large number of market feedback results. Regarding the on-site use of the equipment, please click into official YouTube account as below for more information.
