• Model NO.：l06.1
• Coating：Zinc oxide
• Machining Tolerance：+,-0.01mm
• Standard：GB
• Certification：ISO 9001:2008
• Elogation：>2%
• Tensile Strength：>280MPa
• Yield Strength：>210MPa
• Transport Package：Plywood Wooden Case
• Specification：650mmX650mmX50mm
• Trademark：Boyuan
• Origin：China
• Production Capacity：10000PCS Per Month

Basic Info.

Model NO. l06.1 Coating Zinc oxide Machining Tolerance +/-0.01mm Standard GB Certification ISO 9001:2008 Elogation >2% Tensile Strength >280MPa Yield Strength >210MPa Transport Package Plywood Wooden Case Specification 650mmX650mmX50mm Trademark Boyuan Origin China Production Capacity 10000PCS Per Month

Product Description

    Fluid mechanical ventilation system fan impeller, blade, hub
    Our company is professional in fluid mechanical parts manufacturer, such as blower fan impeller, fan blade, compressor impeller, Hign speed Centrifugal fan impeller, centrifugal fan impeller, Rail transit fan impeller and blade, fan housing, etc.
    The all product material is aluminum alloy and the casting of surface smoothness can up to Ra1.6μm-Ra3.2μm.
The casting process is lower pressure casting.
    Our main products:
Compressor parts: multistage compressor impeller, single stage compressor impeller, open compressor impeller and closed compressor impeller...
Ventilation fan parts: fan impeller, fan blade, centrifugal fan impeller, fan wheel hub, fan housing...
Maglev blower components: blower impeller, blower cooling flow, blower diffuser, blower housing...
Marine and locomotive turbocharger parts: Turbine wheel, compressor wheel, nozzle ring, diffuser...
Inspection capacity:
All inspection process will be finished in our factory, such as:

NON-Destructive Inspection	Destructive Inspection
1.Visual Inspection	1.Tensile Strength Test
2.Surface Defect testing	Room Temperature Tensile Testing Machine
Dye Penetrant Testing	2.Hardness Testing
3.Inside Defecting Testing	Rockwell Hardness Tester
Radiography Testing	3.Chemical Composition
Ultrasonic Testing	Spectorgraph
4.Size Testing	4. Casting Surface Grain Size Testing
CMM	Metallography Testing

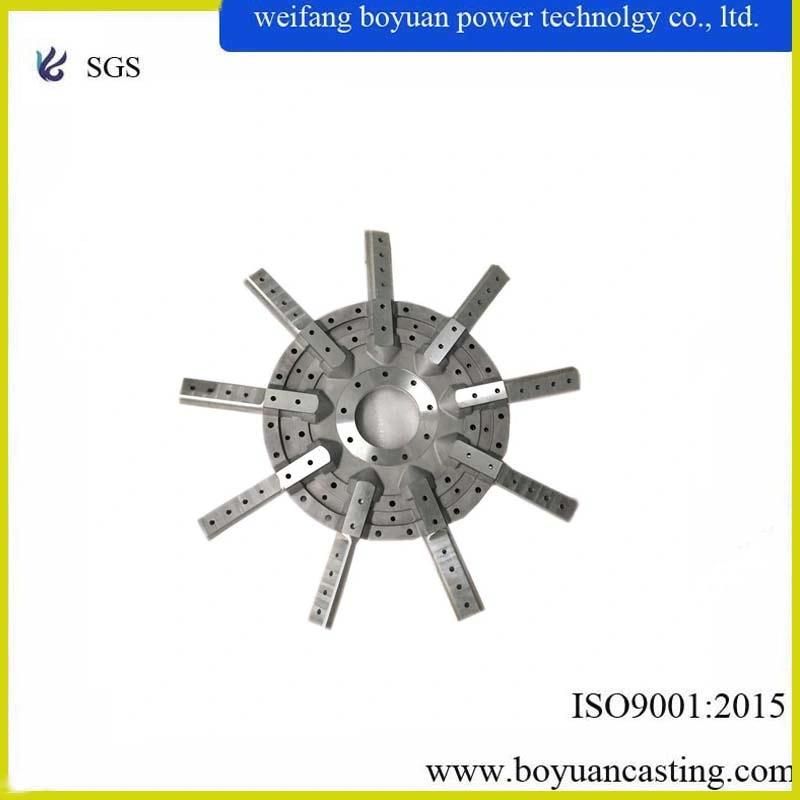

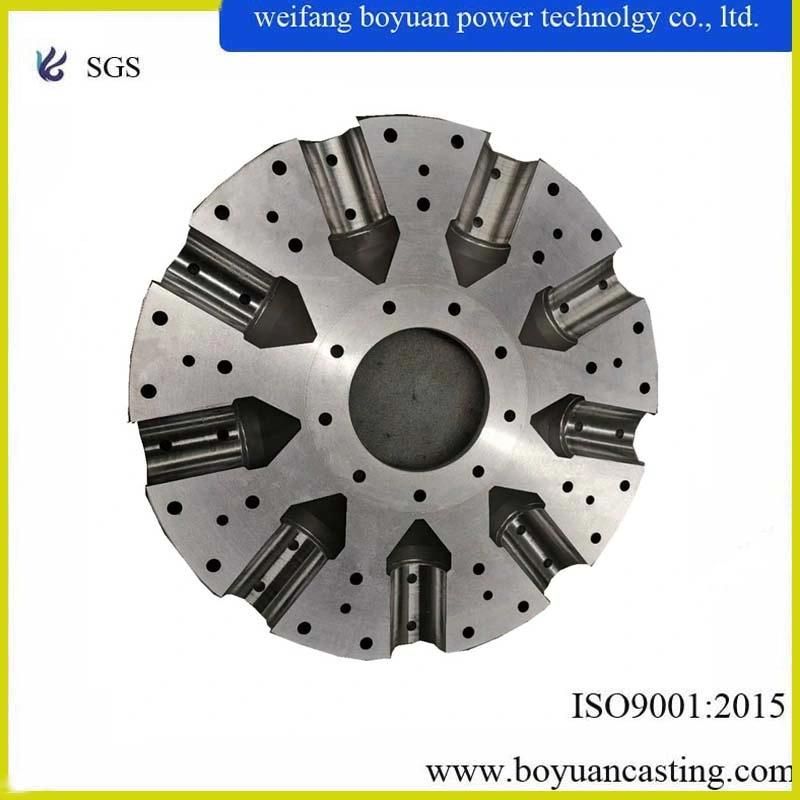

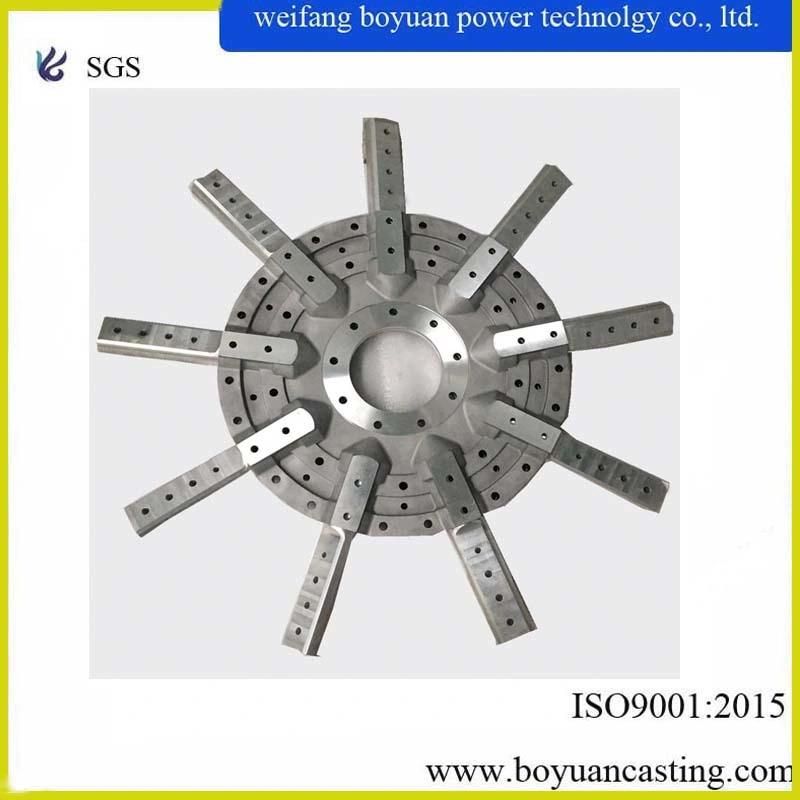

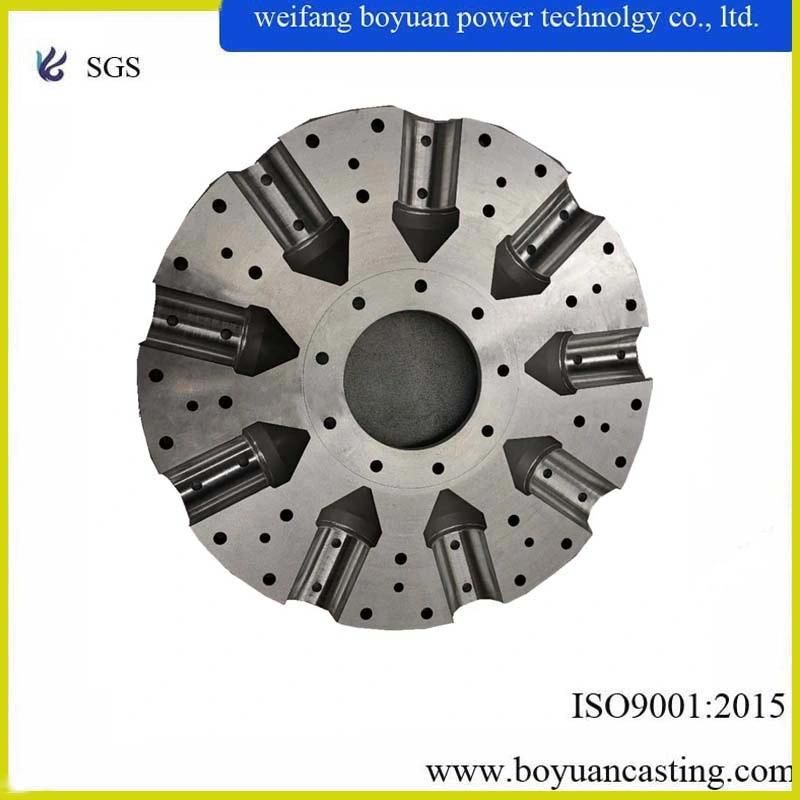

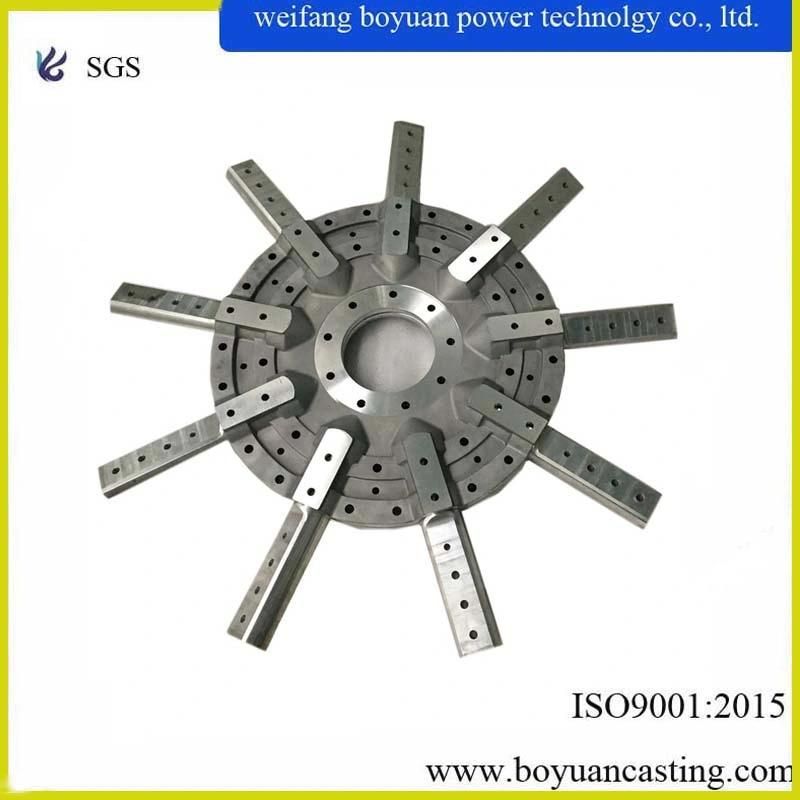

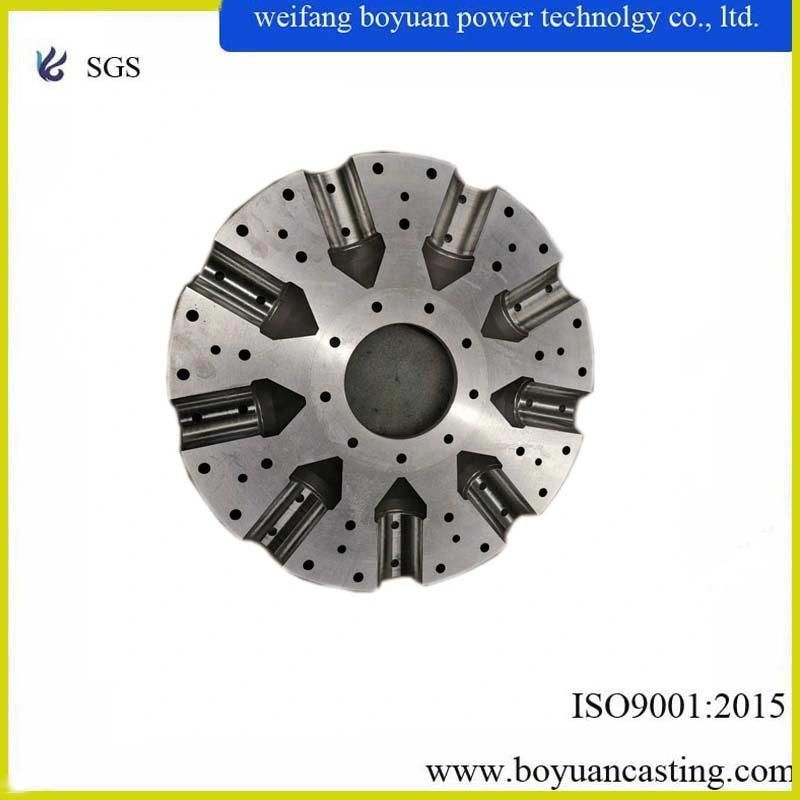

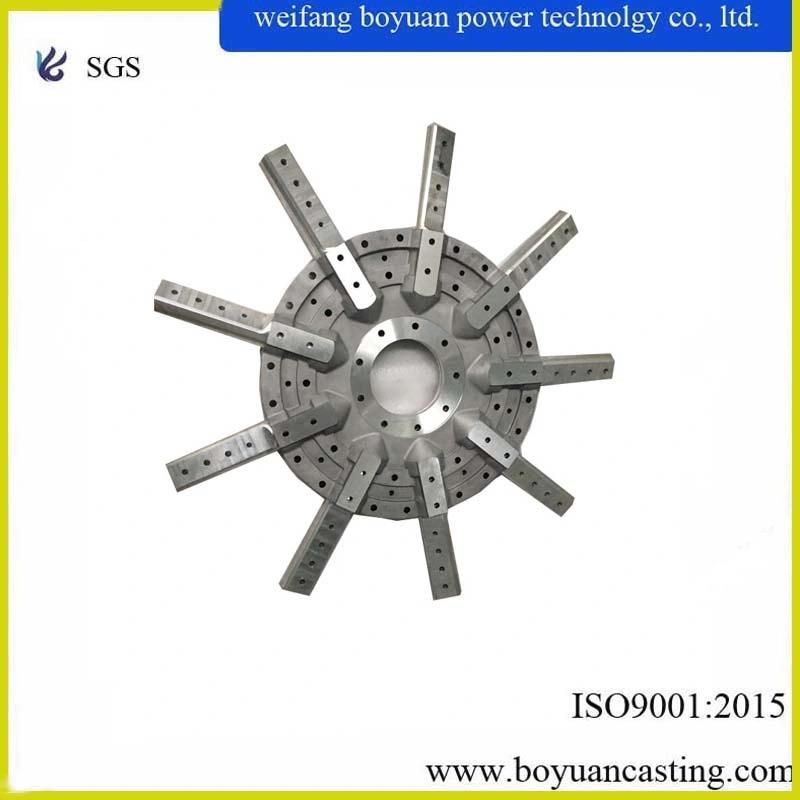

product photoes:
