• Model NO.：RB
• Forging Tolerance：+,-0.5mm
• Certification：CE
• Color：Green
• Transport Package：Into Container
• Specification：6 FORGING STATIONS
• Trademark：JX11B-6S,JX14B-6S,JX17B-6S,JX19B-6S,JX19B-6SL,JX24
• Origin：China
• HS Code：8463900090
• Production Capacity：100sets,Year

Basic Info.

Model NO. RB Forging Tolerance +/-0.5mm Certification CE Color Green Transport Package Into Container Specification 6 FORGING STATIONS Trademark JX11B-6S,JX14B-6S,JX17B-6S,JX19B-6S,JX19B-6SL,JX24 Origin China HS Code 8463900090 Production Capacity 100sets/Year

Product Description

JX series nut making machine can produce various kinds of nuts, fastener parts, nonstandard products for automobile, motorcycle, bicycle and basically machinery work piece. Also produce nonstandard-machine in accordance with special requirement.

Production items:

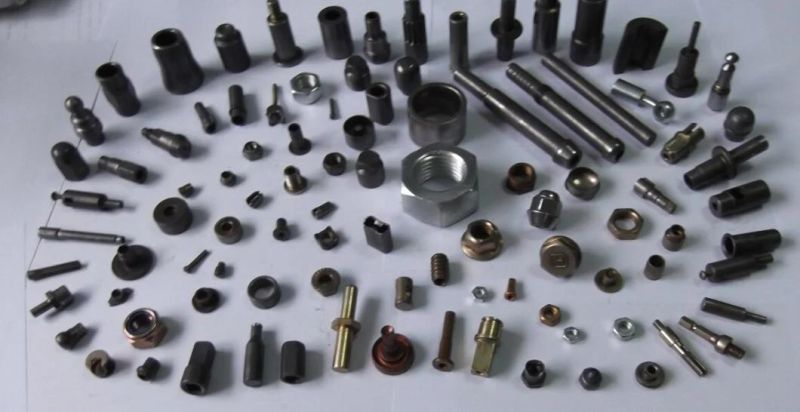

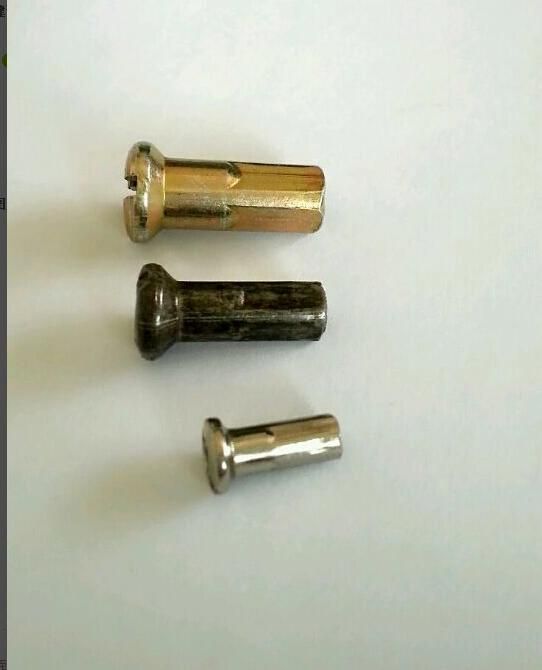

Extra thick nut, flanged nut, motorcycle link pin, oil plug screw, hex socket lockup nut, squire nut, weld nut, cap nut, blind nut, chain roller, expansion anchor, bicycle and motorcycle shaped spare parts, and so on.

For anything of the machine, please feel free to contact me.

Vera



Hope to cooperate with you.

Model	JX11 B-6S	JX11 B-6S-L	JX14 B-6S	JX14 B-6S-L50	JX14B- 6S-T50	JX14B- 7S-L50	JX17B- 6S	JX17B- 6S-L50	JX19 B-6S	JX19B- 6SL-50	JX24B- 6SL-70
Forging Station	6	6	6	6	6	7	6	6	6	6	6
Max. forging Dia. (mm)	8-12	8-12	12-15	12-15	12-15	12-15	13-17	13-17	20	20	25
Max. cut off dia. (mm)	11	11	15	15	15	15	17	17	19	19	24
product dia.	M4-M6	M4-M6	M6-M8	M6-M8	M6-M8	M6-M8	M8-M10	M8-M10	M10-M12	M10-M12	M12-M16
Max. forging length (mm)	13	25	16	45	30	45	45	45	25	50	70
Die pitch (mm)	50	50	60	60	60	60	70	70	80	80	100
Main slide stroke (mm)	50	64	60	160	60	160	160	160	100	162	200
output (pcs/min)	120-240	120-240	85-170	70-100	70-100	70-100	85-165	70-100	100	85	85
main motor	15HP	15HP	20HP	40HP	40HP	40HP	40HP	40HP	40HP	50HP	74HP
appr. weight (kgs)	4000	4500	7500	8500	7500	9000	10000	10000	13000	15000	20000
