• Model NO.：CFM-601
• Surface Treatment：Sand Blast
• Surface Roughness：Ra6.3
• Standard：ANSI
• Certification：CE, ISO 9001:2008
• Certificate：ISO9001 SGS
• Origine：Qingdao
• Brand：Chifine
• Service：OEM and ODM
• Material Type：Ductile Iron
• Manufacturer：Yes
• Export Maket：Global
• Quality Control：Professional QC and Test Equipment
• Heat Treatment：Normalizing ,Quenching ,Anealling ,Tempering
• Machining Type：CNC Turning Milling Drilling Lathe
• Transport Package：in Pallet or as Your Requirement
• Specification：Bearing House
• Trademark：Chifine
• Origin：Jimo Qingdao
• HS Code：7325101000
• Production Capacity：1500 Tons Per Month

Basic Info.

Model NO. CFM-601 Surface Treatment Sand Blast Surface Roughness Ra6.3 Standard ANSI Certification CE, ISO 9001:2008 Certificate ISO9001 SGS Origine Qingdao Brand Chifine Service OEM and ODM Material Type Ductile Iron Manufacturer Yes Export Maket Global Quality Control Professional QC and Test Equipment Heat Treatment Normalizing ,Quenching ,Anealling ,Tempering Machining Type CNC Turning Milling Drilling Lathe Transport Package in Pallet or as Your Requirement Specification Bearing House Trademark Chifine Origin Jimo Qingdao HS Code 7325101000 Production Capacity 1500 Tons Per Month

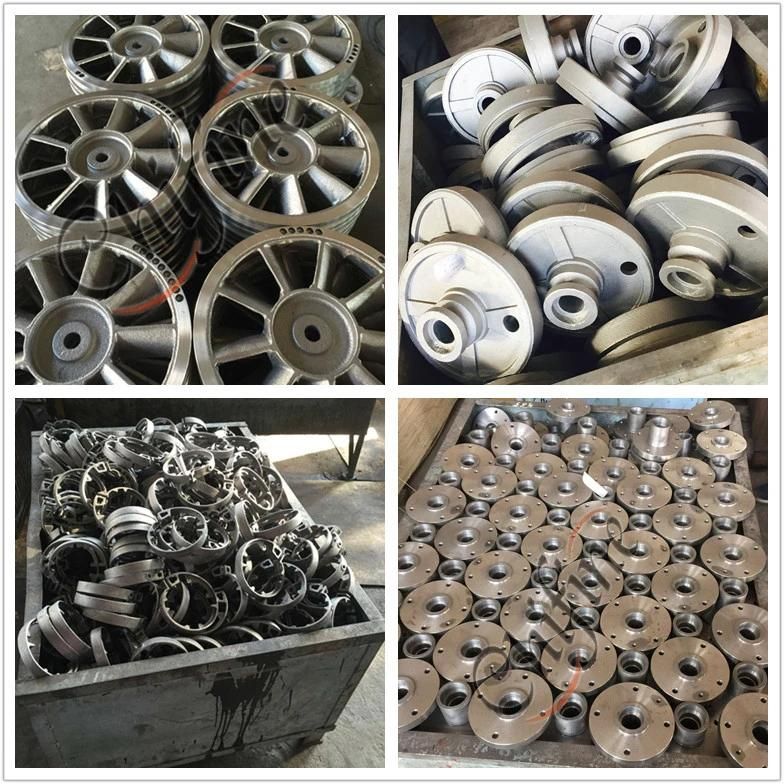

Product Description

Product Description:

1) Material: Gray Iron, Ductile Iron.

2) Process: Green sand casting, resin sand casting.

3) Applied software for specification drawings: Pro/E, AutoCAD, Solidworks etc.

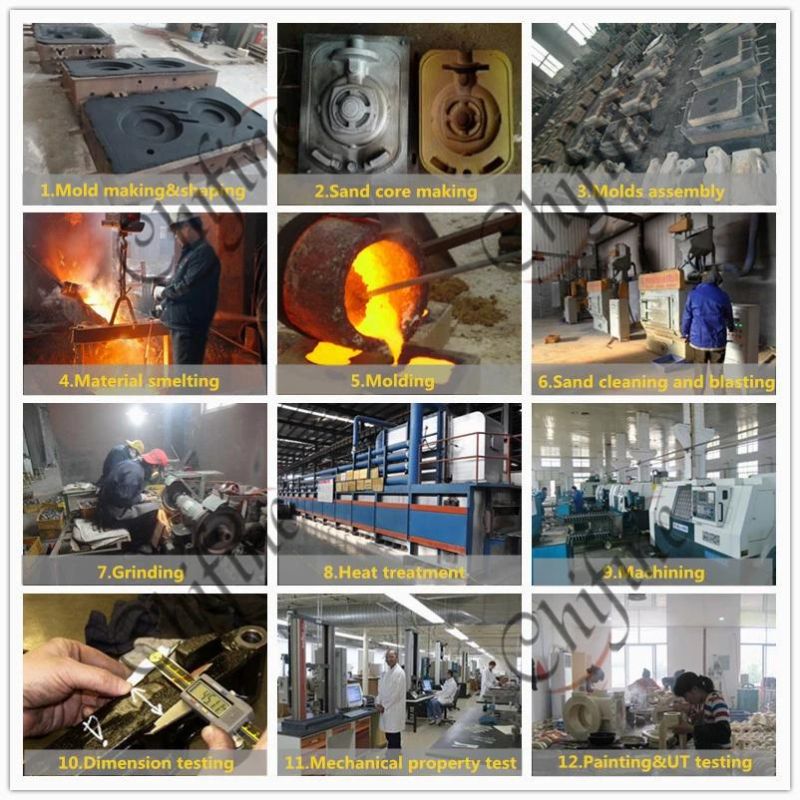

4) Facility: Electric furnace, cupola furnace, anneal furnace, sand mixing machine, shot blast chamber, various molding machine.

5) Precision machining: CNC, NC lathes, boring machines, milling machines, bench drilling machines, etc.

6) Surface Protection: oiled (rust-proof), electroplating, hot dip galvanizing, nickel or chrome plating, painting, powder coating.

7) Products' location: The special designed fittings, widely used in municipal and drainage system, power station, industrial equipment, vehicles, etc.

Our Inspection Equipment:
Direct-reading spectrograph,metallographic microscope,hardness tester,brinell hardness tester,thermometric indicator,universal testing machine,carbon and silicon analysis meter,magnetic powder flaw detector,digital ultrasonic flaw detector etc.

Our Service:
1.Your inquiry related to our products or prices will be replied in 12 hours.
2.Individual formula according to customers' special drawing requests.
3.Manufacturer with large capacity,ensures the fast production cycle after
confirming the order.
4.Protection of sales area and private information for all of our customers.

 Quality Control:
We have a full set of quality control system to guarantee best product quality. Depending on the products, we can make different Item Testing Plan, Manufacturing procedure etc.
Raw material control
Chemistry spectrum analysis
Mechanical property
Metallographic analysis
Ultrasonic testing
Magnetic testing
Radiographic testing
Dimension inspection
Visual inspection
Penetrant testing
Leak testing
Hardness test
Micro-structure tester after heat treatment

Machining Ability
Our machining shop located in Qingdao using the latest CNC equipment to provide our customer with high quality products.
Horizontal and Vertical Machining Center
CNC lathe and normal lathe
CNC drilling and milling Center
Other assistant equipment

 Product Design and casting simulation

Successful parts are original from successful design. We own high level engineers on the product design. They are good at make drawing using the software of CAD. PROE, SOLIDWORKS for assuring production process well.

Our technical group have rich experience in casting process, so we can put forward reasonable suggestions to the product structure design on various performance, process parameters to solve the customer's requirement, set up the 3D model, get the results from pouring simulation analysis. Then modify and optimize the scheme to determine the correct casting





Process	sand casting
Material	cast iron , grey iron , ductile iron
Material Standard	ASTM, DIN , JIS, BS
Surface Finish	Anti-rust oil, galvanized , painting
Weight	from 1kg to 150kg
Casting facility	auto production line , furnace, shot-blasting machine sand-blasting machine
Machining facility	CNC center , CNC machines, turning machines, drilling machines , milling machines, grinding machines
Applied Softwre	ProE (.igs , .stp) , Auto CAD , PDF, Jpeg, Jpg, Png
Heat Treatment	Annealing, tempering , normalizing, solid solution
Measuring Tool	CMM , vernier caliper, depth caliper, micrometer, pin gauge, thread gauge , height gauge
QC system	100% inspection before shipment
Package	bubble pack, carton , sea worthy plywood packing , or as per customers' requirements
Payment Terms	T/T , L/C, D/P , D/A
Shipment Terms	FOB , CFR, CIF
