• Model NO.：customized
• Surface Treatment：Dacromat Coating, Finish Painting
• Surface Roughness：Ra 0.8-Ra3.2
• Standard：ASTM
• Certification：CE, RoHS, ISO 9001:2008
• Product Material：Ggg50, ASTM A536 80-55-06
• Blank Process：Sand Casting, Cast Iron
• Casting Tolerance：CT9-11 for Valve Body Sand Casting
• Machining Process：CNC Machining, Drilling, Milling, Boring, Tappin
• Machining Tolearnce：From 0.005mm-0.01mm-0.1mm
• Machined Surface Quality：Ra 0.8-Ra3.2, According to Customer Requirement
• Surface Finish Treatment：Dacromat Coating, Finish Painting
• Package for Iron Sand Casting：Multilayer Wooden Box with Big Plastic Bag Inside
• Lead Time：45 Days for Valve Body Sand Casting
• Service for Iron Sand Casting：OEM, ODM for Valve Body Sand Casting
• Transport Package：Multilayer Wooden Box with Big Plastic Bag Inside
• Specification：SGS, ISO9001
• Trademark：Matech
• Origin：Zhejiang
• HS Code：8432900000
• Production Capacity：150 Tons,Month

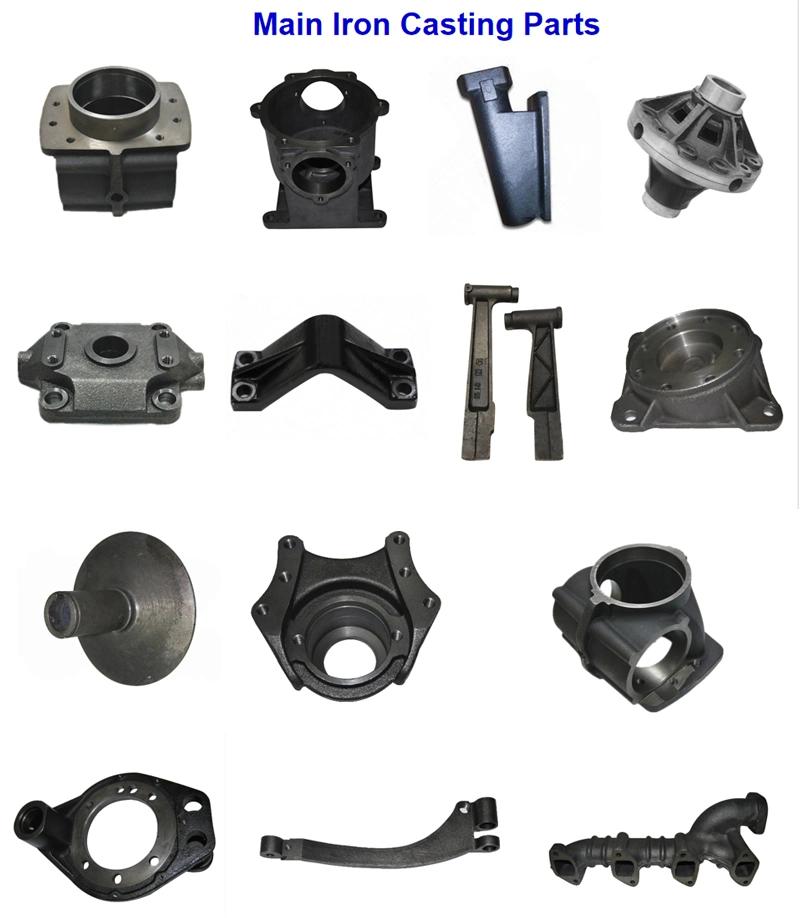

General Products
 Application/Service Area

Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, Agriculture machine metal Parts, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc.

 Main blank Process for Casting

Sand Casting , Resin Sand Casting, Green Sand Casting, Shell Molding, Automatic Molding, Lost Wax Casting, Lost Foam Molding Casting

 Blanks Tolerance -Casting  Tolerance
CT9-10 for  Machine Molding Process,
CT8-9 for Shell Molding and Lost Foam Molding Casting Process
CT10-11 for Manual Molding Sand  casting Process
 Applicable Material

See Table Below (Ductile Iron Casting, Grey Iron Casting)
OR According to customer requirement

 Casting Blank Size  /Dimensions
2 mm-2000mm / 0.08inch-79inch  for casting iron, according to customer requirement
 Casting Blank Weight
Range from 0.01kg-1000kg for foundry sand casting
 Applicable Machining Process

CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and  etc.

 Machining Tolerance
From 0.005mm-0.01mm-0.1mm
 Machined Surface Quality
Ra 0.8-Ra3.2, according to customer requirement
 Applicable Heat Treatment

Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching

 Applicable Finish Surface  Treatment

Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting.

 MOQ
For iron casting : 100pcs
For Machining : 50pcs
 Lead Time
45days from the receipt date of deposit for valve body sand casting


Cast iron with nomular graphite
DIN EN 1563
Germany
DIN 1693
France
NF
Great Britain
BS
Netherlands
NEN
Sweden
MNC
USA
ASTM A536
EN-GJS-350-22-LT
GGG-35.3
FGS 370-17
370/17
GN 38
0717-15
----
EN-GJS-400-18-LT
GGG-40.3
    ----
----
----
----
60-40-18
EN-GJS-400-15
GGG-40
FGS-400-12
420/12
GN 42
0717-02
60-40-18
EN-GJS-400-10
----
----
420/12
----
----
65-45-12
EN-GJS-500-7
GGG-50
FGS-500-7
500/7
GN 50
0727-02
65-45-12/
80-55-06
EN-GJS-600-3
GGG-60
FGS-600-3
600/3
GN 60
0732-03
80-55-06
EN-GJS-700-2
GGG-70
FGS-700-2
700/2
GN 70
0737-01
100-70-03
EN-GJS-800-2
GGG-80
FGS-800-2
800/2


120-90-02
EN-GJS-1000-5 (DIN EN 1564)
GGG-100B/A
----
----
----
----
850-550-10
EN-GJS-AX NiSiCr35 5 2
GGG-
NiSiCr 35 5 2
FGS-
Ni35Si5Cr2
S5S
----
----
Type D-5S


Cast iron with lamellar graphite
DIN EN 1561
Germany
DIN 1691
France
NF
Great Britain
BS
Netherlands
NEN
Sweden
MNC
USA
ASTM A48
EN-GJL-150
GG-15
Ft 15 D
Grade 150
GG 15
01 15-00
20 B / 25 B
EN-GJL-200
GG-20
Ft 20 D
Grade 180/220
GG 20
01 20-00
25 B / 30 B
EN-GJL-250
GG-25
Ft 25 D
Grade 220/260
GG 25
01 25-00
35 B / 40 B
EN-GJL-300
GG 30
Ft 30 D
Grade 300
GG 30
01 30-00
40B / 45 B
Technical Support:
Shanghai Matech is professional at independent development and design. Our engineers are skilled at AUTO CAD, PRO ENGINEER, SOLID WORKS and other 2D & 3D softwares. We are able to design, develop,produce and deliver your PO according to your drawings, samples or just an idea. Dural control of standard products and OEM products.

Quality Control:
1) Checking the raw material after they reach our factory------- Incoming quality control ( IQC)
2) Checking the details before the production line operated
3) Have full inspection and routing inspection during mass production---In process quality control(IPQC)
4) Checking the goods after they are finished---- Final quality control(FQC)
5) Checking the goods after they are finished-----Outgoing quality control(OQC)

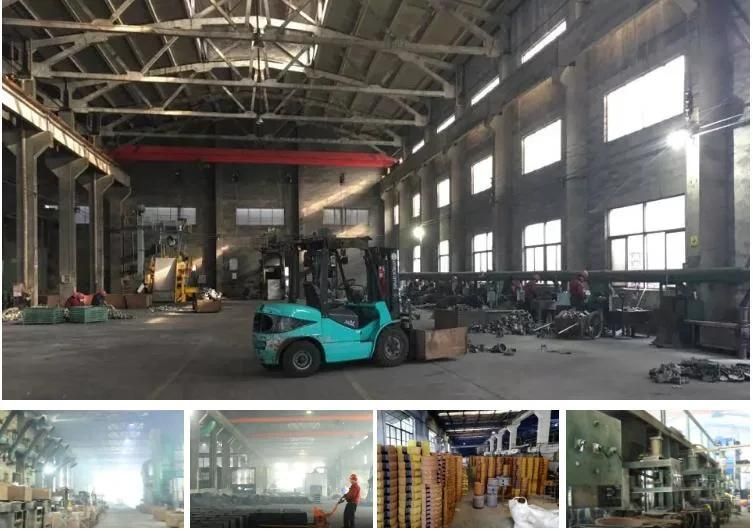

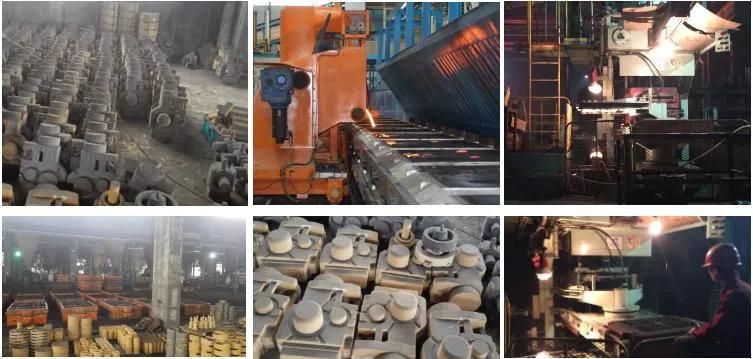

Our Factory

                           Shanghai Matech Machinery Manufacture Co., Ltd.
                                                     --Branch of Matech Industry Ltd.

We specialize in Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system.

With keeping manufacturing process design, quality planning, key manufacturing processes and final quality control in house.
 We are mastering key competence to supply quality mechanical parts and assembly to our customers for both Chinese and Export Market.

To satisfy different mechanical and functional requirements from our customers we are making a big range of metal products for our clients on base of different blanks solutions and technologies.
These blanks solutions and technologies include processes of Iron Casting, Steel Casting, Stainless Steel Casting, Aluminum Casting and Forging.

During the early involvement of the customer's design process we are giving professional input to our customers in terms of process feasibility, cost reduction and function approach.


Our Certificate

Our Customer
Customer Feedback

Our Team

Our Package
Inner Packing → Strong & waterproof plastic big is packed inside, to keep the product in safe condition.Or as customer requests.

Outer Packing →Multilayer wooden box with strong bandages, used for standard export package. Or customized as per customer's requirements.

FAQ

1Q: Are you trading company or manufacturer?
A: We are factory, so we can provide competitive price for you.

2Q: What kind of service can you provide?
A: Our company (Runze) can provide OEM sheet metal fabrication, CNC machining and manufacturing service.

3Q: What's kinds of information you need for a quote?
A: In order to quote for you earlier, please provide us the following information together with your inquiry.
1. Detailed drawings (STEP, CAD, SOLID Works, PROE, DXF and PDF)
2. Material requirement (SUS, SPCC, SECC, SGCC, Copper, AL, ETC.)
3. Surface treatment (powder coating, sand blasting, planting, polishing, oxidization, brushing, etc.)
4. Quantity (per order/ per month/ annual)
5. Any special demands or requirements, such as packing, labels, delivery, etc.

4Q: What shall we do if we do not have drawings?
A: Please send your sample to our factory, then we can copy or provide you better solutions. Please send us pictures or drafts with dimensions (Thickness, Length, Height, Width), CAD or 3D file will be made for you if placed order.

5Q: What makes you different from others?
A: 1. Our Excellent Service
We will submit the quotation in 48 hours if getting detailed information during working days.
2. Our quick manufacturing time
For Normal orders, we will promise to produce within 3 to 4 weeks.
As a factory, we can ensure the delivery time according to the formal contract.

6Q: Is it possible to know how are my products going on without visiting your company?
A: We will offer a detailed production schedule and send weekly reports with photos or videos which show the machining progress.

7Q: Can I have a trial order or samples only for several pieces?
A: As the product is customized and need to be produced, we will charge sample cost, but if the sample is not more expensive, we will refund the sample cost after you placed mass orders.

8Q: Why there is tooling cost?
A: It's mold cost. Indispensable production process. Only need to pay for first order, and we will bear maintenance cost of mold damage.

9Q: What is your terms of payment?
A: Payment of sample order ≤ 1000USD, 100% T/T full payment.
Payment of tooling or batch order ≥ 5000USD, 70% T/T in advance, balance before shipment.

10Q: What's your after-sale service?
A: If there is quality problem, please provide photos or test report, we will replace defective goods or return funds.

If you have any other questions please find us online, or send messages via email, WhatsApp for better communication!
