• Model NO.：TJS-43DZ
• Coating：Water
• Machining Tolerance：+,-0.01mm
• Standard：AISI
• Certification：ISO 9001:2000, ISO 9001:2008
• Transport Package：Standard Exporting Packing
• Trademark：TJS
• Origin：China
• HS Code：8428399000
• Production Capacity：800 PCS,Year

Basic Info.

Model NO. TJS-43DZ Coating Water Machining Tolerance +/-0.01mm Standard AISI Certification ISO 9001:2000, ISO 9001:2008 Transport Package Standard Exporting Packing Trademark TJS Origin China HS Code 8428399000 Production Capacity 800 PCS/Year

Product Description

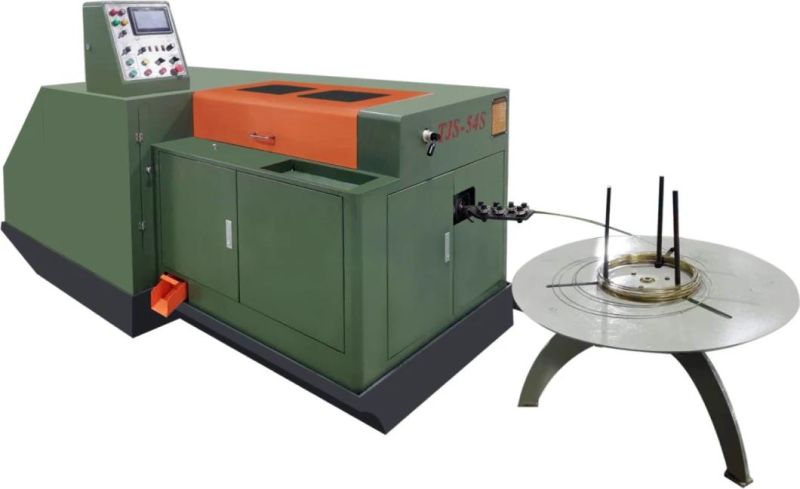

Tjs-43dz 3 Stations Easy Operation Heading Machine

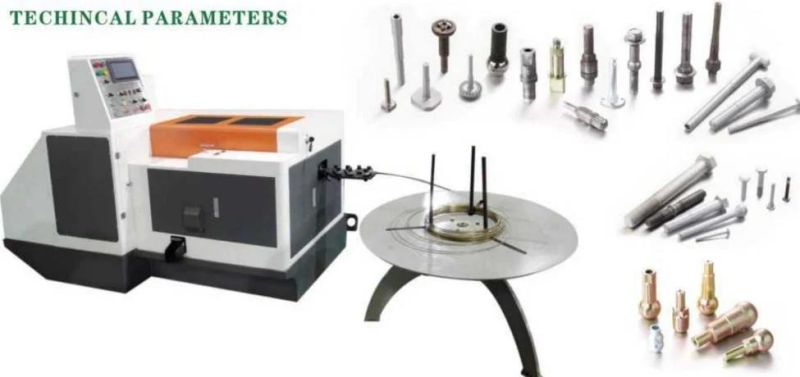

Tjs-43dz 3 Stations Easy Operation Heading Machine  Main Specification:

Model	TJS43DZ
Stations' Quantrty/No.	3
Forming Force/kgs	8000
Max. Cut-off Diameter/mm	Φ4
Max. Cut-off Length/mm	50
Production Speed/pcs/min	60-500
P.K.O Stroke/mm	15
K.O Stroke/mm	50
Stroke/mm	70
Main Motor Power/kw	4
Cut off Die Diameter/mm	Φ15*35L
Punch Diameter/mm	Φ28*65L
Main Die Diameter/mm	Φ40*70L
Die Pitch/mm	45
Volume(L*W*H)/cm	2250*1000*1450
Weight/ton	2100kg
Normal Sina of Bolt/mm	1-4
Shank Length of Blank/mm	6-35

Our company was founded in 2002. It is a well- known enterprise with more than 20 years of mechanical R & D and production experience, specializing in the production of precision guide pillar type high-speed power press, elbow type high-speed precision press, high-speed precision cold heading machine, nut machine. The company's R & D Department has gathered many elites in the industry. High, fine and top-notch R & D technology team, forming a technology innovation mode of production, learning and research. It has won the national "China famous brand cultivation warehousing certificate", "management quality certification certificate", "China high tech enterprise" and other authoritative certificates.

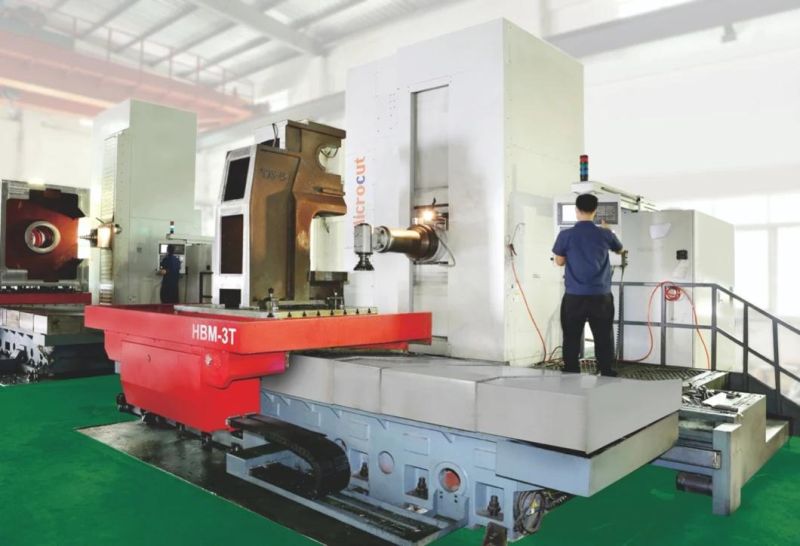

We take the most high-end precision stamping user's demand as the goal, develops the core technology, material, process, design, development, "substitution import - domestic first" high-end high-speed precision stamping equipment, cold heading equipment. A batch of advanced testing and processing equipment imported from Italy and Japan can successfully manufacture the main core components of equipment with complex structure and higher precision, filling the domestic blank. Serve China's high-speed precision stamping cold heading industry.

CHARACTERISTICS OF TJS-4DZ SERIES COLD HEADING MACHINE:

The patented 3-guide pillar structure reduces the dynamic friction to the minimum, enhances the ability of anti-eccentric load, makes the machine operate 24 hours, reduces the thermal level to the minimum, and reaches the highest accuracy, thus prolonging the life of the dies.

• The oil is completely separated from the lubricating oil to achieve the best mechanical lubrication effect.
• When the machine is running at high speed, there will be no fault due to poor lubrication. The phosphating ash of raw materials, iron chips, aluminum powder and stainless-steel cold heading oil will not enter the lubrication system of the main parts of the machine, so as to ensure the wear resistance of the machine.
• Dynamic balance system is adopted to ensure stable and accurate high-speed operation.

The servo motor + PLC electric control system is adopted to realize the detection of oil pressure, air pressure, voltage, current and other machine operation conditions.

• Self-developed humanized operation interface, emphasizing the safety and convenience of operators.
• The cutting system developed by our own patent can realize the quick installation of the cutter,
• The modular clamp system developed by our own patent has the advantages of high speed and precision, convenient operation and easy maintenance.
• All machine gears are heat treated and grinded with high precision to ensure long-term wear resistance and low noise.
• Cast iron is made of alloy cast iron with excellent tensile strength and has been inspected by the national inspection department. It has excellent shock absorption performance. In the case of high-speed stamping and high-speed feeding, the body is stable, and the vibration is small, which ensures the long-term accuracy of the machine.

 Warranty and Service
1. 12 months warranty for all our press machines.
2. We can provide technical support via email, phone or video call.
3. We can arrange engineers for service, installation and training.
4. English operation and maintenance manual is provided with machines.
5. All safety warning tags, and control panels are in English.

FAQ
Q: Are you a trading company or manufacturer?
A: We are a manufacturer since 2002.
Q: Can you help me solve a whole stamping line?
A: Yes, please provide the product drawings, and then we will give a best plan.
Q: How long does the general lead time take?
A: All machines need to be arranged for production, which shall be determined according to the situation at that time.
