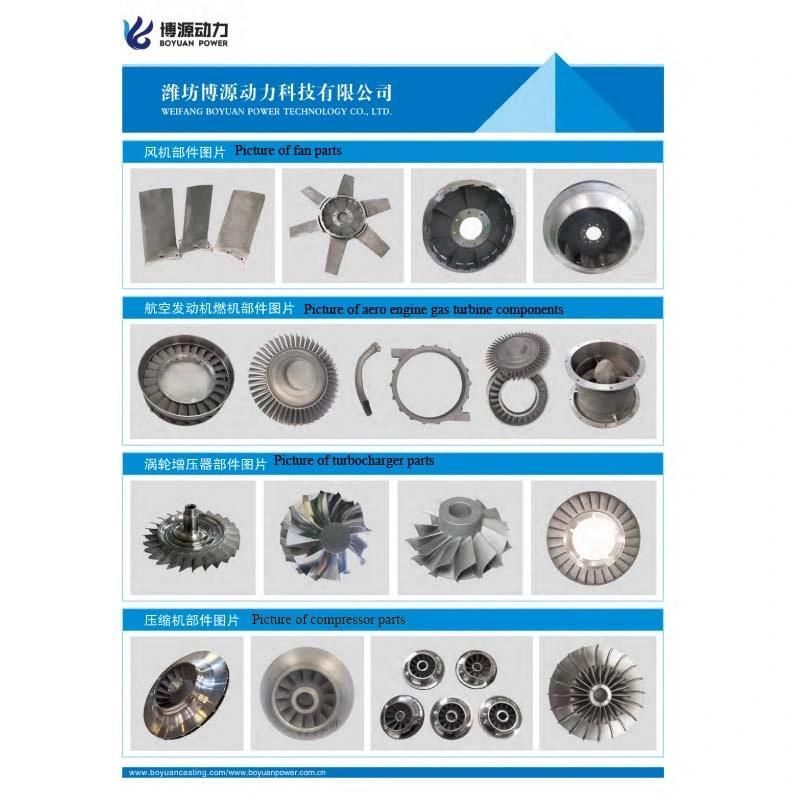

Aero Engine Gas Turbine Components Investment Casting Vacuum Casting
Weifang Boyuan Power Technology Co., Ltd.- Casting Method：Vacuum Casting
- Process：Lost Wax Casting
- Molding Technics：Precision Casting
- Application：Turbojet Engine
- Material：Superalloy Inconel713c
- Surface Preparation：Sand Blast
Base Info
- Model NO.：D11.1
- Surface Roughness：Ra3.2
- Machining Tolerance：+,-0.01mm
- Standard：ASTM
- Certification：ISO9001:2015
- Tensile Test Temperature：Above 900 Degree
- Tensile Strength of High Temperature：Above 830MPa
- Elongation of High Temperature：Above 3%
- Persistent Creep Temperature at High Tem：Above 975 Degree
- Creep Tensile Strength at High Temperatu：Above 225MPa
- High Temperature Duration：Above 40h
- Test of Surface Defect：Fpt
- Test of Internal Defect：X-ray
- Test of Size：CMM

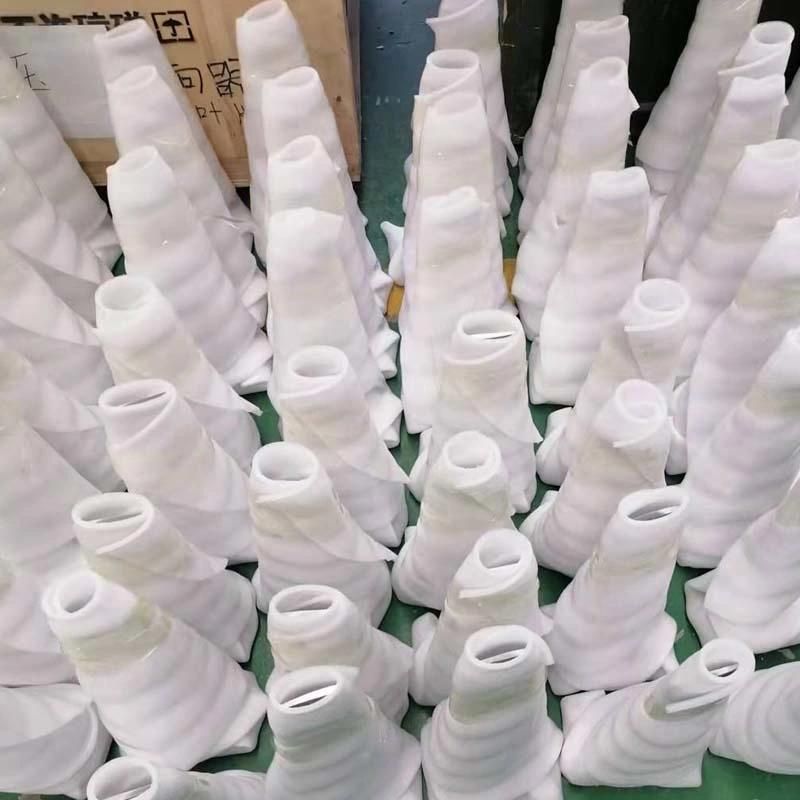

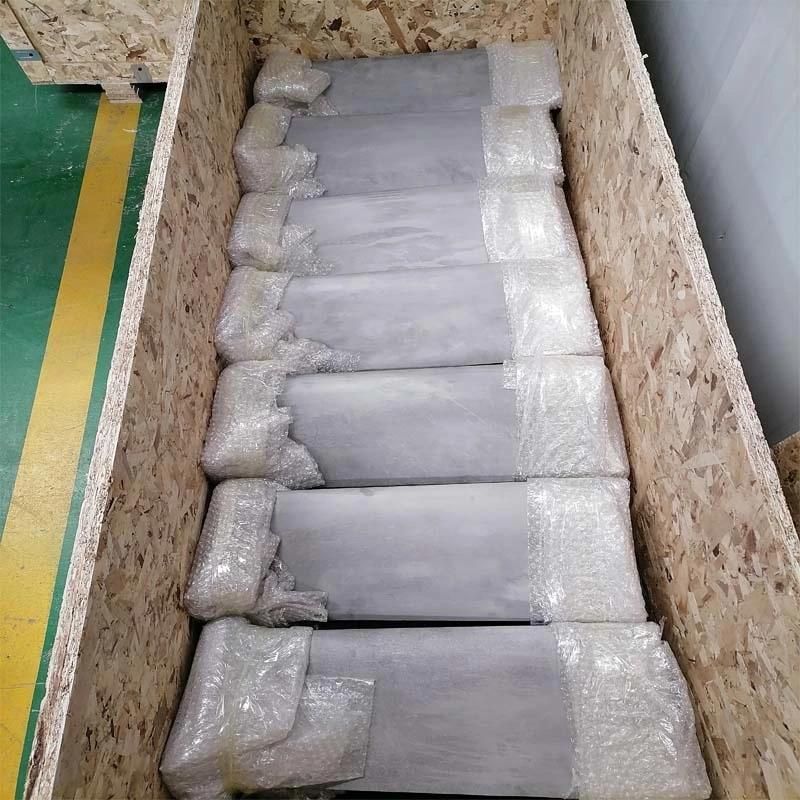

- Transport Package：Plywood Boxes
- Specification：Diameter: 290mm
- Trademark：BoYuan casting
- Origin：Weifang City, Shandong Province, Shandong
- HS Code：8414909090
- Production Capacity：100000pieces,Years
Description
Superalloy nozzle guide vane used for turbojet engine, nozzle guide vane be finished by integral casting. And casting method of nozzle guide vane is investment & vacuum casting, casting surface smoothness can meet Ra3.2μm.
The material of nozzle guide vane is superalloy Inconel713c. And all nozzle guide vane are subjected to stress relief heat treatment to imporve the mechanical properties of products. After heat treatment mechanical properties can meet:

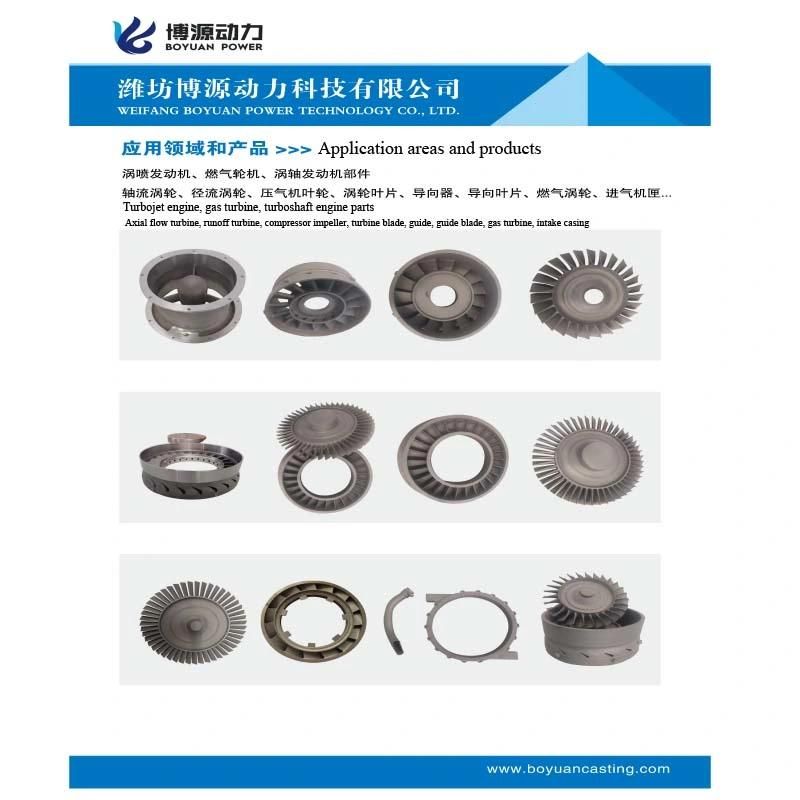

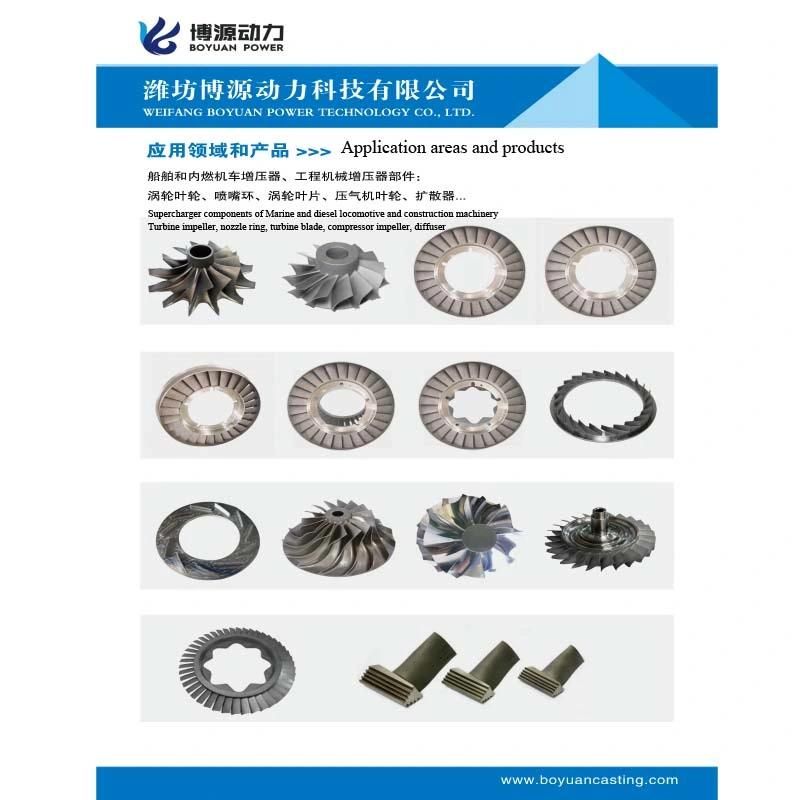

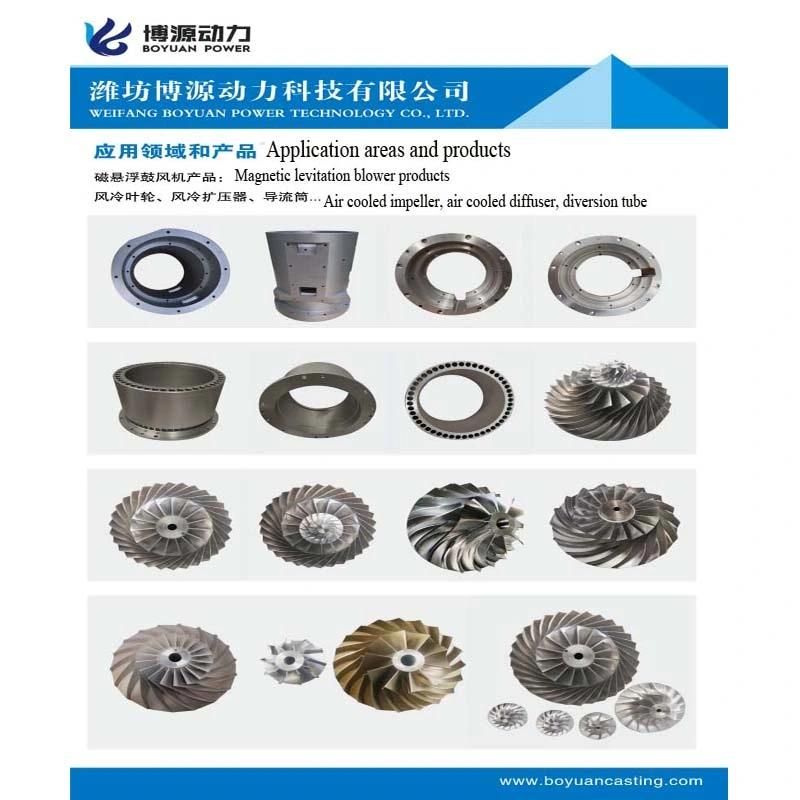

Company Profile
Our Advantages
1. We can finish mould design and mould machining, mould assembly in our factory to ensure plan of casting
2. We can finish all casting and machining in our factory to ensure production time
3. We can finish all inspection in our factory to ensure production quality
