One Station 1- Die-2 Blow Cold Forging Heading Machine for Screw Making with Thread ...
Xuchang Hongshuo Machinery Co., Ltd.- Molding Technics：Pressure Casting
- Molding Style：Forging
Base Info
- Transport Package：Wooden Cases or Sea Worthy
- Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Material：Steel
- Machining：Machining Center
- Application：Machinery Parts
- Model NO.：M3,M4,M5,M6,M8,M10,M12
- Trademark：hongshuo
- Origin：China
- Production Capacity：200PCS,Month
Description
Basic Info.
Model NO. M3/M4/M5/M6/M8/M10/M12 Application Machinery Parts Machining Machining Center Material Steel Certification CE, RoHS, ISO 9001:2000, ISO 9001:2008 Transport Package Wooden Cases or Sea Worthy Trademark hongshuo Origin China Production Capacity 200PCS/MonthProduct Description

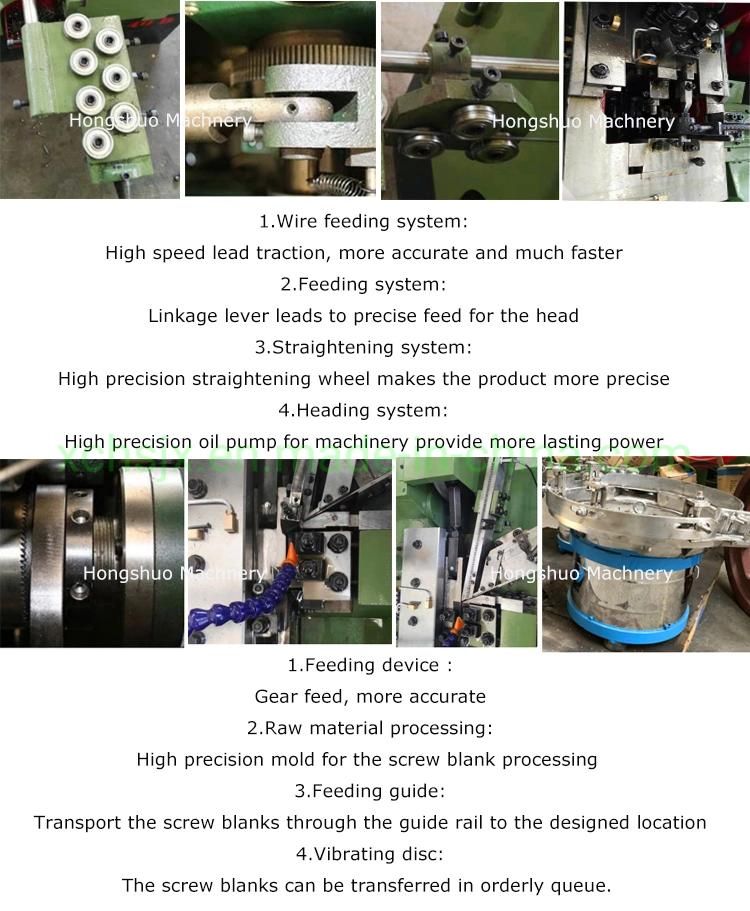

Product Photos

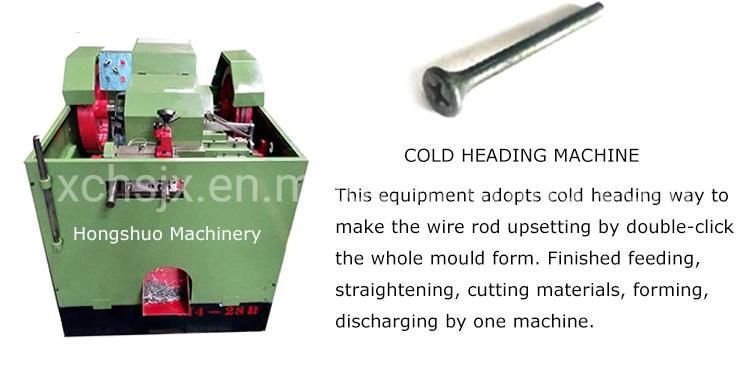

technical parameters of heading making machine
| Model | Max. Screw Dia (mm) | Max. Screw length (mm) | Capacity (pcs/min) | Motor (kw) | Weight (Ton) | Overall size (m) |
| M3-18A/B | 3 | 18 | 160-180 | 0.75/0.37 | 0.6 | 1.3*0.75*0.9 |
| M3-28A/B | 3 | 28 | 160-180 | 0.75/0.37 | 0.6 | 1.3*0.75*0.9 |
| M4-28B | 4 | 28 | 120-160 | 1.5/0.37 | 0.97 | 1.5*0.9*0.9 |
| M4-28D | 4.5 | 28 | 180-200 | 1.5/0.37 | 1.2 | 1.6*1*1.2 |
| M4-40B | 4 | 40 | 120-150 | 1.5/0.37 | 0.97 | 1.5*0.9*1 |
| M4-40D | 4.5 | 40 | 180-200 | 1.5/0.37 | 1.2 | 1.6*1.1*1.1 |
| M5-40B | 6 | 40 | 120-150 | 2.2/0.37 | 1.8 | 1.8*1.1*1.1 |
| M5-60B | 6 | 60 | 110-140 | 2.2/0.37 | 1.8 | 1.8*1.1*1.1 |
| M5-80B | 6 | 80 | 80-100 | 2.2/0.37 | 1.9 | 2*1.1*1.2 |
| M5-120B | 6 | 120 | 50-70 | 3.6/0.37 | 2.3 | 2.8*1.3*1.3 |
| M6-60B | 8 | 60 | 80-110 | 4/0.37 | 2.8 | 2.3*1.3*1.3 |
| M6-100B | 8 | 100 | 60-90 | 4/0.37 | 2.7 | 2.3*1.3*1.3 |
| M6-120B | 8 | 120 | 60-70 | 4/0.37 | 3 | 2.4*1.3*1.4 |
| M6-170B | 8 | 170 | 40-70 | 4/0.37 | 3.7 | 3*1.3*1.5 |
| M6-200B | 8 | 200 | 40-55 | 4/0.37 | 3.7 | 3*1.3*1.5 |
| M8-120B | 10 | 120 | 50-90 | 5.5/0.37 | 4.6 | 3.4*1.5*1.5 |
| M8-130B | 10 | 130 | 50-90 | 5.5/0.37 | 4.6 | 3.4*1.51.5 |
| M8-150C | 10 | 150 | 40-50 | 5.5/0.37 | 5 | 3.5*1.7*1.7 |
| M8-200B | 10 | 200 | 25-60 | 7.5/0.37 | 6 | 3.8*1.6*1.7 |
| M10-120B | 12 | 120 | 40-70 | 11/0.75 | 7 | 3.3*1.71.7 |
| M10-170C | 12 | 170 | 40-60 | 11/0.75 | 7.5 | 4.2*1.81.7 |
| M10-220C | 12 | 220 | 35-60 | 11/0.75 | 7.5 | 4.2*1.81.7 |
| M10-250C | 12 | 250 | 30-45 | 11/0.75 | 8.5 | 5*1.8*1.7 |
| M10-300C | 12 | 300 | 25-35 | 15/0.75 | 9 | 5*1.9*2.1 |
| M10-360C | 12 | 360 | 20-30 | 15/0.75 | 12 | 6.7*2*2.6 |
| M12-150C | 14 | 150 | 40-50 | 15/0.75 | 10 | 3.9*1.9*1.8 |
| M12-250C | 14 | 250 | 35-50 | 15/0.75 | 11 | 5.3*2.21.9 |
| M14-250C | 16 | 250 | 35-45 | 11/0.75 | 11 | 5*2.2*2.15 |

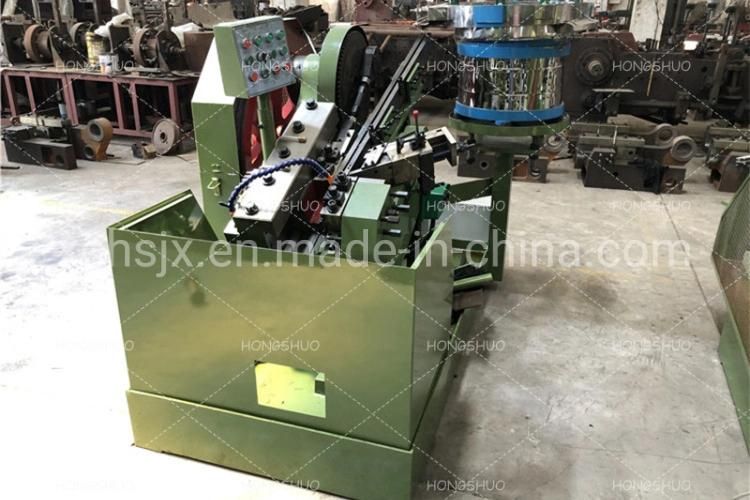

Product Photos

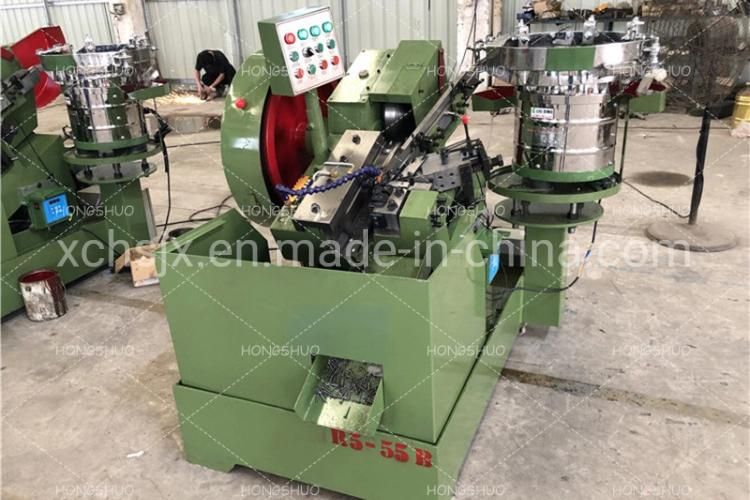

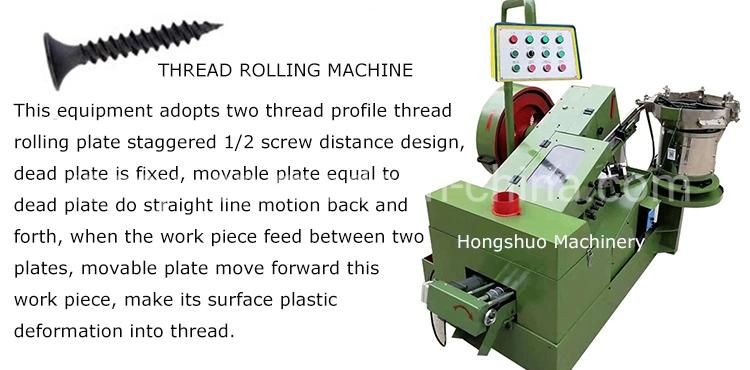

technical parameters of thread rolling machine
| Model | Max. Screw Dia (mm) | Max. Screw length (mm) | Motor (kw) | Capacity (pcs/min) | Weight (Ton) | Overall size (m) |
| R3-20A | M2.6 | 20 | 1.1 | 350 | 0.3 | 1.1*0.53*1.2 |
| R3-20B | M2.6 | 20 | 1.1 | 350 | 0.3 | 1.1*0.53*1.2 |
| R4-25A | M4 | 25 | 1.5 | 320 | 0.45 | 1.3*0.63*1.32 |
| R4-25B | M4 | 25 | 1.5 | 320 | 0.45 | 1.3*0.63*1.32 |
| R4-40A | M4 | 40 | 2.2/0.37 | 280 | 0.97 | 1.5*1.15*1.35 |
| R4-40B | M4 | 40 | 2.2/0.37 | 280 | 0.97 | 1.5*1.15*1.35 |
| R5-55B | M5 | 55 | 3+0.37 | 160 | 1.2 | 1.6*1.35*1.7 |
| R5-65A | M5 | 65 | 3+0.37 | 130 | 1.3 | 1.75*1.4*1.65 |
| R5-65B | M5 | 65 | 3+0.37 | 130 | 1.3 | 1.75*1.4*1.65 |
| R6-60A | M6 | 60 | 4/0.37 | 180 | 1.5 | 1.7*1.65*1.3 |
| R6-60B | M6 | 60 | 4/0.37 | 180 | 1.5 | 1.7*1.65*1.3 |
| R6-100B | M6 | 100 | 5.5+0.37 | 110 | 1.9 | 2.7*1.3*1.3 |
| R8-80B | M8 | 80 | 5.5/0.37 | 110 | 1.8 | 2.1*1.55*1.3 |
| R8-100B | M8 | 100 | 7.5+0.37 | 100 | 2.1 | 2.7*1.7*1.3 |
| R8-120B | M8 | 120 | 5.5 | 100 | 2.1 | 2.4*1.8*1.4 |
| R10-120B | M10 | 120 | 7.5 | 80 | 1.8 | 2.35*1.95*1.4 |
| R12-120B | M12 | 120 | 11 | 60 | 3 | 2.45*2*1.45 |
| R12-160B | M12 | 160 | 13 | 60 | 3 | 2.45*2*1.45 |
| R12-220B | M12 | 220 | 15 | 50 | 3.5 | 2.5*2*1.45 |
| R16-120B | M16 | 120 | 15 | 50 | 3.8 | 2.5*2.1*1.45 |
| R16-160B | M16 | 160 | 15 | 50 | 4 | 2.5*2.1*1.45 |
| R16-220B | M16 | 220 | 15 | 45 | 4.8 | 3.7*1.9*1.7 |
Sales Market
Shipping Photos
FAQ--1--Q: Are you trading company or manufacturer ?
A: We are manufacturer since 1990. As many manufacturers, we first do business in domestic trade, and then do exporting business right now. You're welcome to our factory to inspect every production details and accept free training for machines.
--2--Q: How can i find suitable screw making machine ?
A: Please tell us the two factors, SIZE (diameter and length) & TYPE of screw you want to make, we will customize expert solution of screw making line for you.
--3--Q: Can i use one machine to make screws?
A: No, at least two machines. The cold heading machine to make the screw blank, the thread rolling machine to thread.
--4--Q: Can i make different size and type of screws by one machine?
A: Yes, it just need to change the mould.
--5--Q: What's the material waste during the production for screws?
A: The wastage is less than 3%, one ton wire can make about 970kg nails.
--6--Q: What's the guarantee of the machine?
A: We will provide 2 years warranty. 100% responsible within 24hrs timely response.
--7--Q: How long is your delivery time?
A: Generally 30 days if in stock for screw making machines.
