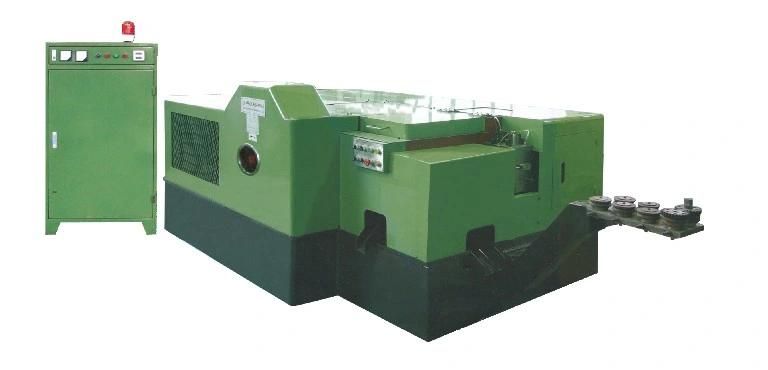

Nut Former Roof Roll Forging Machine
HARBIN RAINBOW TECHNOLOGY CO., LTD.- Application：Machinery Parts
- Molding Technics：Pressure Casting
- Molding Style：Forging
- Processing Object：Metal
- Machining：Machining Center
- Material：Steel
Base Info
- Trademark：JX11B-6S,JX14B-6S,JX17B-6S,JX19B-6S,JX19B-6SL,JX24
- Specification：6 FORGING STATIONS
- Transport Package：Sea Worthy Package
- Color：Green
- Standard：JIS
- Certification：ISO 9001:2008
- Forging Tolerance：+,-0.5mm
- Surface Treatment：Zinc Plating
- Origin：China
- HS Code：84639000
- Production Capacity：100sets,Year
Description
Basic Info.
Surface Treatment Zinc Plating Forging Tolerance +/-0.5mm Standard JIS Certification ISO 9001:2008 Color Green Transport Package Sea Worthy Package Specification 6 FORGING STATIONS Trademark JX11B-6S,JX14B-6S,JX17B-6S,JX19B-6S,JX19B-6SL,JX24 Origin China HS Code 84639000 Production Capacity 100sets/YearProduct Description
JX series mainly produce 3die 3 blow, 4 die 4 blow, 5 die 5 blow, 6 die 6 blow multi station heading machine, boltmaker machine including thread rolling unit and tapping machine. The machine has high dfficiency and consequently used to produce various fasteners, nonstandard products for automobile, motorcycle, bicycle and basically machinery work piece. Also produce nonstandard-machine in accordance with special requirement.Production items:
Extra thick nut, flanged nut, motorcycle link pin, oil plug screw, hex socket lockup nut, squire nut, weld nut, cap nut, blind nut, chain roller, expansion anchor, bicycle and motorcycle shaped spare parts, and so on.
We have exported these machines to India, and we have service center in India, so we can provide you the best after-sale service.
For anything of the machine, please feel free to contact me.
Hope to cooperate with you.
| Model | JX11 B-6S | JX11 B-6S-L | JX14 B-6S | JX14 B-6S-L50 | JX14B- 6S-T50 | JX14B- 7S-L50 | JX17B- 6S | JX17B- 6S-L50 | JX19 B-6S | JX19B- 6SL-50 | JX24B- 6SL-70 |
| Forging Station | 6 | 6 | 6 | 6 | 6 | 7 | 6 | 6 | 6 | 6 | 6 |
| Max. forging Dia. (mm) | 8-12 | 8-12 | 12-15 | 12-15 | 12-15 | 12-15 | 13-17 | 13-17 | 20 | 20 | 25 |
| Max. cut off dia. (mm) | 11 | 11 | 15 | 15 | 15 | 15 | 17 | 17 | 19 | 19 | 24 |
| product dia. | M4-M6 | M4-M6 | M6-M8 | M6-M8 | M6-M8 | M6-M8 | M8-M10 | M8-M10 | M10-M12 | M10-M12 | M12-M16 |
| Max. forging length (mm) | 13 | 25 | 16 | 45 | 30 | 45 | 45 | 45 | 25 | 50 | 70 |
| Die pitch (mm) | 50 | 50 | 60 | 60 | 60 | 60 | 70 | 70 | 80 | 80 | 100 |
| Main slide stroke (mm) | 50 | 64 | 60 | 160 | 60 | 160 | 160 | 160 | 100 | 162 | 200 |
| output (pcs/min) | 120-240 | 120-240 | 85-170 | 70-100 | 70-100 | 70-100 | 85-165 | 70-100 | 100 | 85 | 85 |
| main motor | 15HP | 15HP | 20HP | 40HP | 40HP | 40HP | 40HP | 40HP | 40HP | 50HP | 74HP |
| appr. weight (kgs) | 4000 | 4500 | 7500 | 8500 | 7500 | 9000 | 10000 | 10000 | 13000 | 15000 | 20000 |
