• Transport Package：Wooden Cases or Sea Worthy
• Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
• Material：Steel
• Machining：Machining Center
• Application：Machinery Parts
• Model NO.：R3,R4,R5,R6,R8,R10,R12,R16
• Trademark：hongshuo
• Origin：China
• Production Capacity：200PCS,Month

Basic Info.

Model NO. R3/R4/R5/R6/R8/R10/R12/R16 Application Machinery Parts Machining Machining Center Material Steel Certification CE, RoHS, ISO 9001:2000, ISO 9001:2008 Transport Package Wooden Cases or Sea Worthy Trademark hongshuo Origin China Production Capacity 200PCS/Month

Product Description

Product Description
This equipment adopts two thread profile thread rolling plate staggered 1/2 screw distance design, dead plate is fixed, movable plate equal to dead plate do straight line motion back and forth, when the work piece feed between two plates, movable plate move forward twist work piece, make its surface plastic deformation into thread.

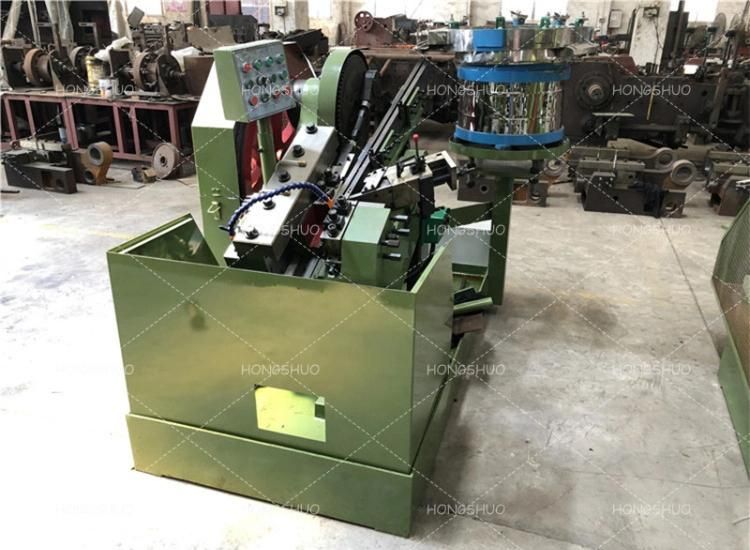

Product Photos

Main technical Parameters

Model	Max. Screw Dia (mm)	Max. Screw length (mm)	Motor (kw)	Capacity (pcs/min)	Weight (Ton)	Overall size (m)
R3-20A	M2.6	20	1.1	350	0.3	1.1*0.53*1.2
R3-20B	M2.6	20	1.1	350	0.3	1.1*0.53*1.2
R4-25A	M4	25	1.5	320	0.45	1.3*0.63*1.32
R4-25B	M4	25	1.5	320	0.45	1.3*0.63*1.32
R4-40A	M4	40	2.2/0.37	280	0.97	1.5*1.15*1.35
R4-40B	M4	40	2.2/0.37	280	0.97	1.5*1.15*1.35

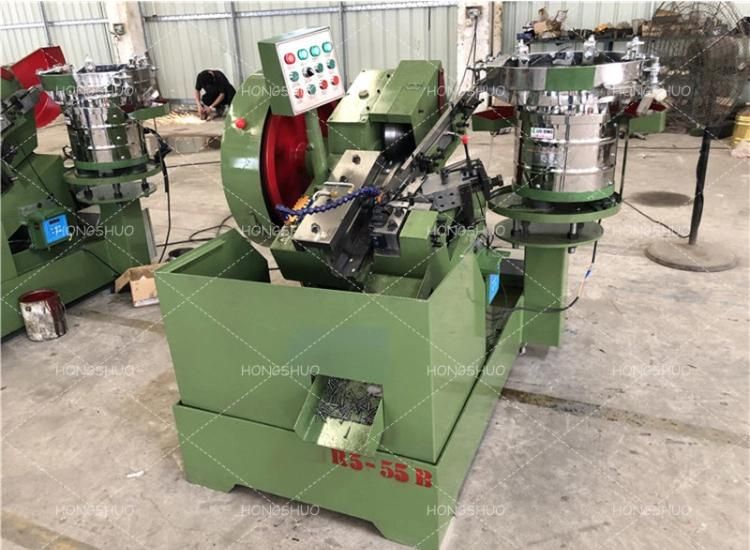

R5-55B	M5	55	3+0.37	160	1.2	1.6*1.35*1.7
R5-65A	M5	65	3+0.37	130	1.3	1.75*1.4*1.65
R5-65B	M5	65	3+0.37	130	1.3	1.75*1.4*1.65
R6-60A	M6	60	4/0.37	180	1.5	1.7*1.65*1.3
R6-60B	M6	60	4/0.37	180	1.5	1.7*1.65*1.3
R6-100B	M6	100	5.5+0.37	110	1.9	2.7*1.3*1.3
R8-80B	M8	80	5.5/0.37	110	1.8	2.1*1.55*1.3
R8-100B	M8	100	7.5+0.37	100	2.1	2.7*1.7*1.3
R8-120B	M8	120	5.5	100	2.1	2.4*1.8*1.4
R10-120B	M10	120	7.5	80	1.8	2.35*1.95*1.4
R12-120B	M12	120	11	60	3	2.45*2*1.45
R12-160B	M12	160	13	60	3	2.45*2*1.45
R12-220B	M12	220	15	50	3.5	2.5*2*1.45
R16-120B	M16	120	15	50	3.8	2.5*2.1*1.45
R16-160B	M16	160	15	50	4	2.5*2.1*1.45
R16-220B	M16	220	15	45	4.8	3.7*1.9*1.7

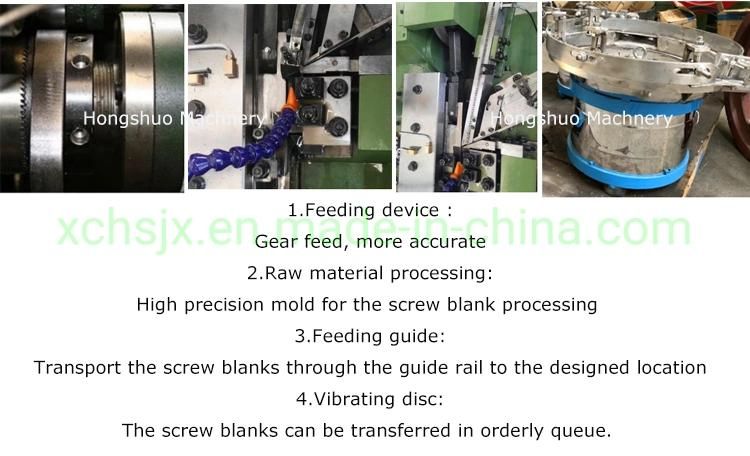

Detail Photos

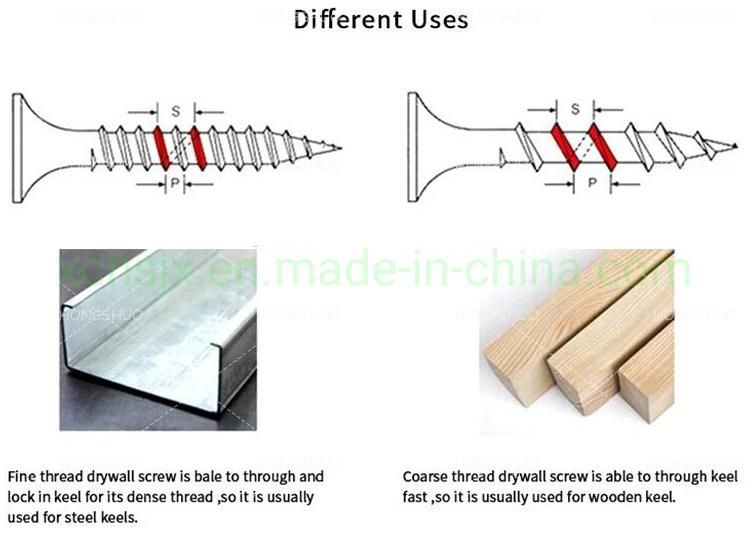

Application

Sales MarketShipping Photo

FAQ
--1--Q: Are you trading company or manufacturer ?
A: We are manufacturer since 1990. As many manufacturers, we first do business in domestic trade, and then do exporting business right now. You're welcome to our factory to inspect every production details and accept free training for machines.
--2--Q:  How can i find suitable thread rollng machine ?
A: Please tell us the two factors, SIZE (diameter and length) & TYPE of screw you want to make, we will customize expert solution of screw making line for you.
--3--Q:  Can i use one machine to make screws?
A: No, at least two machines. The cold heading machine to make the screw blank, the thread rolling machine to thread.
--4--Q:  Can i make different size and type of screws by one machine?
A: Yes, it just need to change the mould.
--5--Q:  What's the material waste during the production for screws?
A:   The wastage is less than 3%, one ton wire can make about 970kg nails.
--6--Q: What's the guarantee of the machine?
A: We will provide 2 years warranty. 100% responsible within 24hrs timely response.
--7--Q: How long is your delivery time?
A: Generally 30 days if in stock for screw making machines.
