• Production Capacity：200ton-1500ton Per Month
• Model NO.：OEM

Basic Info.

Model NO. OEM Production Capacity 200ton-1500ton Per Month

Product Description

as Drawings Foundry Iron Casting Parts Professional Railway Train Casting Parts

Henan Qiangxin Precision Machinery Co., LTD. has a set of technology research and development, production, sales, service as one of the modern casting enterprises, specializing in the production of steel casting, large cast steel.

Founded in 2000, our company can provide various types of carbon steel and alloy steel castings for mining, building materials, forging and pressing, metallurgy, road and bridge, hydraulic and other industries, with large vertical lathe and gear hobbing machine.

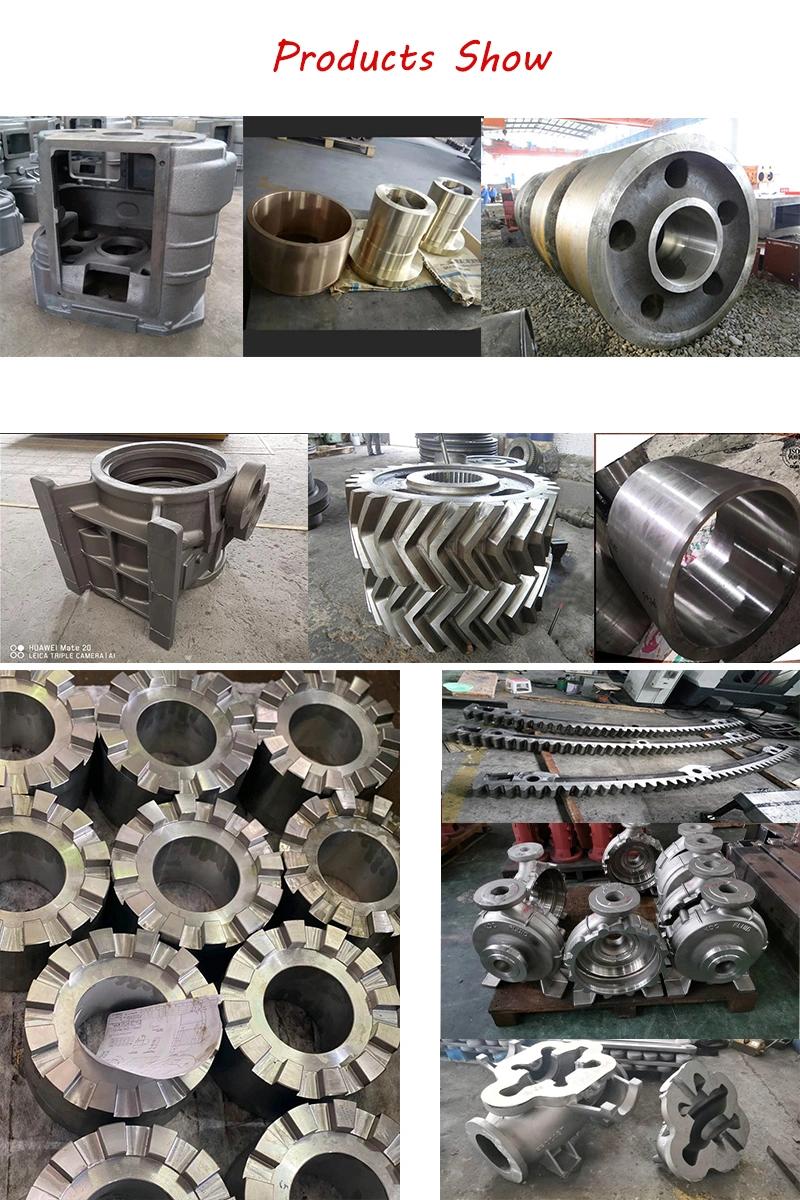

The company mainly produces grey iron, ductile iron, alloy cast iron and other resin sand castings. The main products are stainless steel castings, wear-resistant material castings, machine tool castings, valve and pump castings, large generator housing, reducer castings, machine tool bed castings, heavy vehicle spare parts castings, heavy duty machinery parts, construction machinery castings, rail transit castings, wind power castings and other general machinery parts castings.

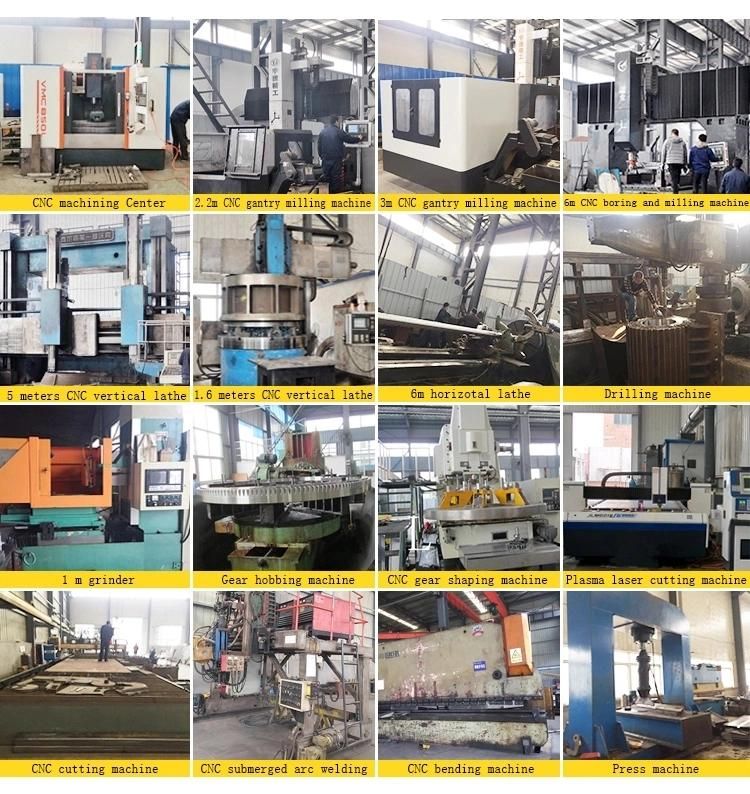

Factory

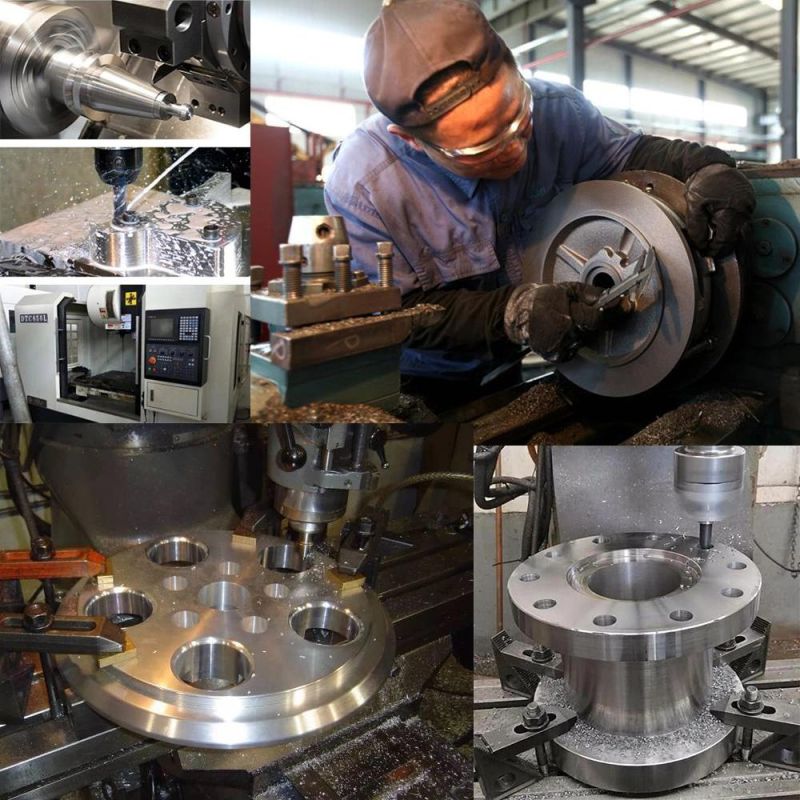

Machining

Inspection

Certifications

Product Description

Item Name	Foundry Customized High Quality Metal Casting
General Products        Application/Service Area	Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system. Such as engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, flywheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc.
Main blank Process for Casting	Sand Casting , Resin Sand Casting, Green Sand Casting, Shell Molding, Automatic Molding, Lost Wax Casting, Lost Foam Molding Casting
Blanks Tolerance -Casting  Tolerance	CT9-10 for  Machine Molding Process, CT8-9 for Shell Molding and Lost Foam Molding Casting Process CT10-11 for Manual Molding Sand  casting Process
Applicable Material	See Table Below (Ductile Iron Casting, Grey Iron Casting) Or According to customer requirement
Casting Blank Size  /Dimensions	2 mm-2000mm / 0.08inch-79inch  for casting iron, according to customer requirement
Casting Blank Weight	Range from 0.01kg-1000kg for casting iron
Applicable Machining Process	CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and  etc.
Machining Tolerance	From 0.005mm-0.01mm-0.1mm
Machined Surface Quality	Ra 0.8-Ra3.2, according to customer requirement
Applicable Heat Treatment	Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching
Applicable Finish Surface  Treatment	Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting.

FAQ
Q: What do I need for offering a quote ?
A: Please offer us 2D or 3D drawings (with material, dimension, tolerance, surface treatment and other technical requirement etc.) ,quantity, application or samples. Then we will quote the best price within 24h.
Q: What is your MOQ?
A: MOQ depends on our client's needs, besides,we welcome trial order before mass-production.
Q: What is the production cycle?
A: It varies a lot depending on product dimension,technical requirements and quantity. We always try to meet customers' requirement by adjusting our workshop schedule.
Q: What kind of payment terms do you accept?
A.: T/T, L/C, Escrow, paypal, western union, moneygram etc.
Q: Is it possible to know how is myproduct going on without visiting your company?
A: We will offer a detailed products sched
