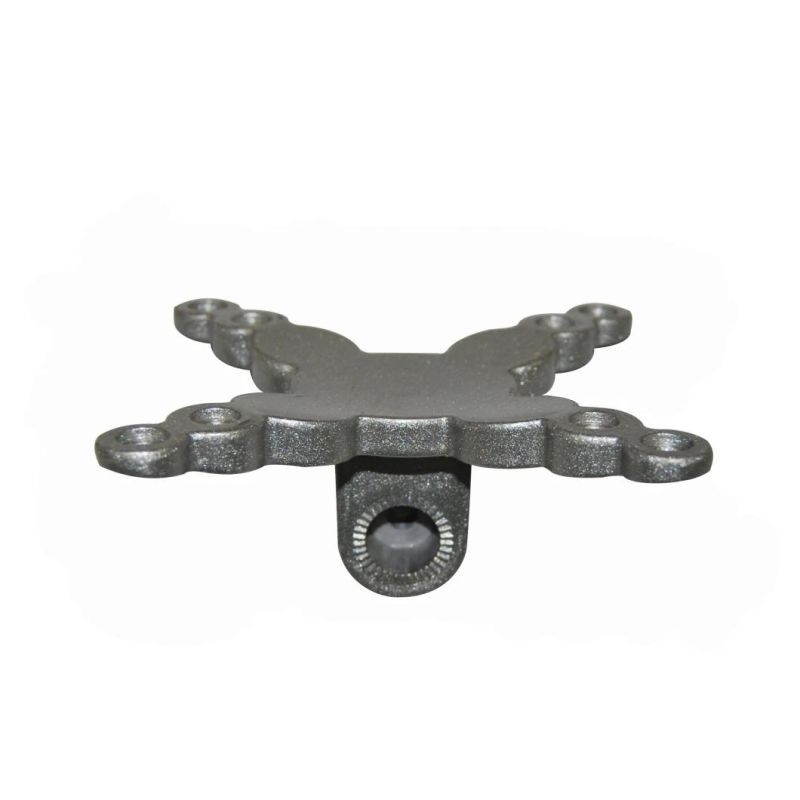

Custom High Demand Precision Aluminum Gravity Die Casting Part
Shanghai Matech Machinery Manufacture Corporation Ltd.- Die Casting Machine Type:Cold Chamber Die Casting Machine
- Die Casting Method:Precision Die Casting
- Application:Vehicle Machinery Parts
- Machining:CNC Machining
- Material:Aluminum Alloy
- Surface Preparation:Powder Coating, Painting etc.
Base Info
- Model NO.:Die Casting Part
- Pressure Chamber Structure:Vertical
- Tolerance Grade:CT5-7 for Die Cast Part
- Casting Surface Quality Level:Ra3.2-6.3
- Certification:CE, RoHS, ISO 9001:2000, ISO 9001:2008, as Customer Requests
- Casting Material:A380, ADC12 etc.
- Manufacturing Process:Die Casting, Option Gravity Casting, Low Pressure
- Casting Tolerance:CT5-7 for Aluminum Casting
- Machining Process:CNC Machining, Lathing, Milling, Turning, Boring,
- Machining Tolerance:up to It7, Ra 0.8~3.2, According to Customer Req
- Surface Treatment:Powder Coating, Painting etc. as Clients Require
- Rough Surface Roughness:Ra3.2-25 for Die Casting Blanks Finish
- Package for Die Casting Part:Multilayer Wooden Box,Pallet, with Big Plastic Bag
- Lead Time:45 Days for Die Casting Part
- Service:Custom Make Die Casting Part
- Transport Package:Multilayer Wooden Box with Big Plastic Bag Inside
- Specification:SGS, IOS9001
- Trademark:Matech
- Origin:Zhejiang
- HS Code:8432900000
- Production Capacity:150 Tons,Month of Die Casting Part
Description
Basic Info.
Model NO. Die Casting Part Pressure Chamber Structure Vertical Tolerance Grade CT5-7 for Die Cast Part Casting Surface Quality Level Ra3.2-6.3 Certification CE, RoHS, ISO 9001:2000, ISO 9001:2008, as Customer Requests Casting Material A380, ADC12 etc. Manufacturing Process Die Casting, Option Gravity Casting, Low Pressure Casting Tolerance CT5-7 for Aluminum Casting Machining Process CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Machining Tolerance up to It7, Ra 0.8~3.2, According to Customer Req Surface Treatment Powder Coating, Painting etc. as Clients Require Rough Surface Roughness Ra3.2-25 for Die Casting Blanks Finish Package for Die Casting Part Multilayer Wooden Box/Pallet, with Big Plastic Bag Lead Time 45 Days for Die Casting Part Service Custom Make Die Casting Part Transport Package Multilayer Wooden Box with Big Plastic Bag Inside Specification SGS, IOS9001 Trademark Matech Origin Zhejiang HS Code 8432900000 Production Capacity 150 Tons/Month of Die Casting PartProduct Description
Custom High Demand Precision Aluminum Gravity Die Casting PartItem Name | Custom High Demand Precision Aluminum Gravity Die Casting Part |
General Products Application/Service Area |
Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, Agriculture machine metal Parts, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve, valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc.
|
Main blank Process | Die Casting, Permanent Molding /Gravity Casting, Low Pressure Casting, High Pressure Casting/Sand Casting, Extrusion Casting etc. |
Blanks Tolerance -Casting Tolerance |
CT4-6 for Permanent Molding, Die Casting, CT 9-11 for Sand Casting |
Applicable Material for casting |
A356.0/ZL101,GAlSi7Mg (3.2371.61)/AlSi7Mg/, A-S7G, Al Si Alloy, Al Cu Alloy ZL201 Al Mg Alloy ZL301,ZL302, Al Zn Alloy ZL401Zn Alloy Zamak 3, Zamak 5, Zamak 7, Zamak 2 Or according to customer requirements
|
Casting Blank Size | 2 mm-1500mm / 0.08inch-60inch , or according to customer requirements |
Casting Blank Weight | Range from 0.01kg-50kg |
Applicable Machining Process |
CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc.
|
Machining Tolerance | From 0.005mm-0.01mm-0.1mm |
Machined Surface Quality | Ra 0.8-Ra3.2 according to customer requirement |
Applicable Heat Treatment | T5~T6 |
Applicable Finish | Shot/sand blast, polishing, Primer Painting , Powder coating, ED- Coating, Finish Painting, Anodize (White or Black Color) |
MOQ for mass production | For aluminum casting : 100pcs, or as clients required For Machining: 50pcs |
Lead Time | 45days for Die Casting Part |
FAQ:
1. What do you do?We are a professional manufacturer with over 15 years' export experience for designing and producing vehicle machinery parts.
2. How can I get some samples? If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.
3. Can you make casting according to our drawing?Yes, we can make casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.
4. Can you make die casting part based on our samples?Yes, we can make measurement based on your samples to make drawings for tooling making.
5. What's your quality control device in house?We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of die casting part.
