• Model NO.：6t,h
• Surface Treatment：Polishing
• Surface Roughness：Ra0.05
• Standard：GB
• Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
• Transport Package：Custom
• Trademark：DL
• Origin：Qingdao, China
• HS Code：8474802000
• Production Capacity：800

Basic Info.

Model NO. 6t/h Surface Treatment Polishing Surface Roughness Ra0.05 Standard GB Certification CE, RoHS, ISO 9001:2000, ISO 9001:2008 Transport Package Custom Trademark DL Origin Qingdao, China HS Code 8474802000 Production Capacity 800

Product Description

Qingdao Dingli machinery Co., Ltd. is located in the beautiful seaside - Qingdao Pingdu, the company set scientific research, manufacturing, installation and commissioning, after-sales service in one. Mainly produces resin sand production line, clay sand production line, coated sand production line equipment, all kinds of sand processing single equipment. The company has advanced casting machinery manufacturing and development technology, the production of products can fully meet the international and domestic market demand. The company has excellent design and development team, skilled construction team, domestic leading casting equipment design concept, perfect after-sales service system, willing to cooperate with the majority of casting enterprises, create a better tomorrow.

In line with the "down-to-earth, integrity-based, pay attention to service, continuous innovation" business philosophy, through continuous efforts. With our own efforts and focus on the development of a series of perfect processing equipment, to meet the different needs of the majority of users.

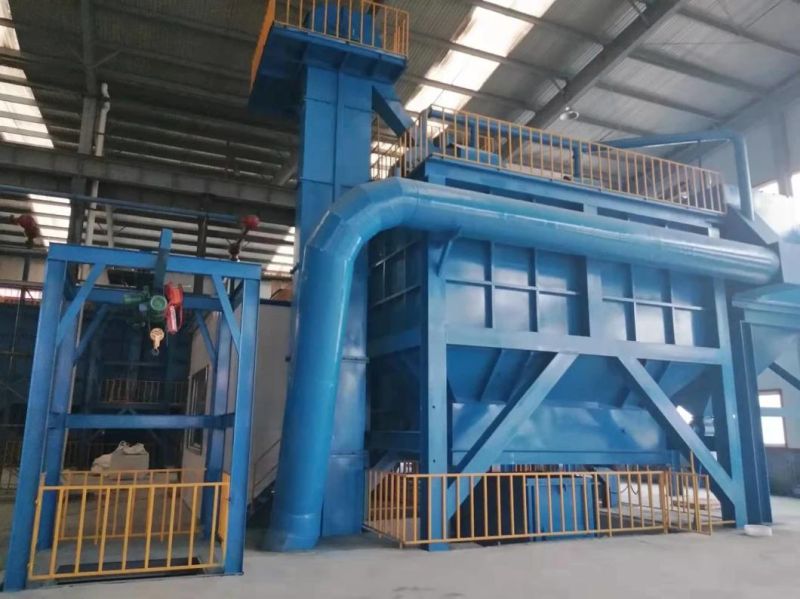

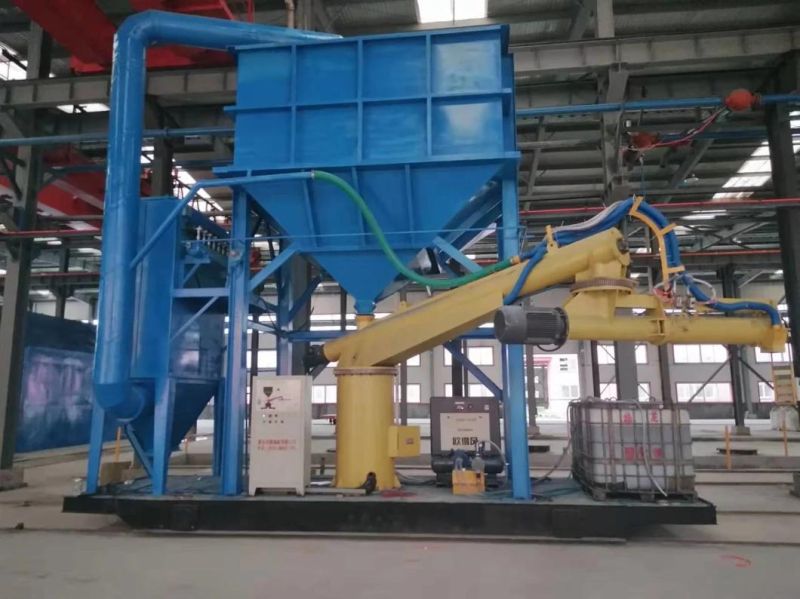

The whole line adopts crushing, magnetic separation, secondary regeneration, air separation, screening and other ways of regeneration. According to experience, the collapsibility of resin sand after casting is very good, so the production line is manually sanded through the grid, and the old sand dropped down is sent to the vibration regenerator through the belt conveyor. The belt conveyor adopts permanent magnet head wheel to separate iron, iron, sand and sand block. The sand and stone blocks are crushed into sand particles by vibrating regenerator, sand and stone blocks and friction of sand and stone blocks, and then enter the secondary centrifugal regenerator by bucket elevator. The sand was quickly rotated and rubbed 28 m/s in a centrifugal regenerator to remove the film and treat with micropowder. The bucket elevator is then lifted to temporary storage in the sand bin. The whole set of regeneration treatment device has compact structure and reasonable design, so that the reclaimed sand can meet the requirements. S2510 double arm resin sand mixer is set below the sand bin to mix core sand or moulding sand of small castings. The sand is evenly mixed into the mixer through a proportional regulator and then formed by automatic mixing of the mixer. This not only increases the molding area, but also reduces the sand transport capacity.

Device name	Resin sand production line
productivity(t/h)	4-6
