PE Primary Crushing Jaw Plate

Shenzhen DENP Industrial Co., Ltd.
  • Casting Method：Special Casting
  • Casting Form Material：Metal
  • Casting Metal：Cast Iron
  • Casting Form Usage Count：Semi-permanent
  • Surface Treatment：Spray-Paint
  • Surface Roughness：Ra12.5

Base Info

  • Model NO.：PE series
  • Coating：Syrup or pulp waste
  • Machining Tolerance：+,-0.02mm
  • Standard：JIS
  • Certification：CE, ISO 9001:2000
  • material：18%Mn, 13%Mn
  • Transport Package：Wooden Case or Pallet, Suitable for Sea Transport
  • Specification：Customized
  • Trademark：DENP
  • Origin：Shanghai
  • HS Code：84742090
  • Production Capacity：5000t,Y

Description

ModelSize of feed opening(mm)Max. Feed size(mm)Adjustable range of discharge (mm)Capacity
(cubic meters/h)Eccentric shaft speed(r/min)Powder(kW)Weight(t)(Motor excluded)Overall dimensions(LxWxH)PE-600x900600x90050065-16030-7525055-7515.52305x1840x2300PE-750x1060750x106063080-14072-130250110282450x2472x2840PE-900x1200900x120075095-16587-164200132503335x3182x3025PE-1200x15001200x15001020150-300250-500180160100.94200x3732x3850

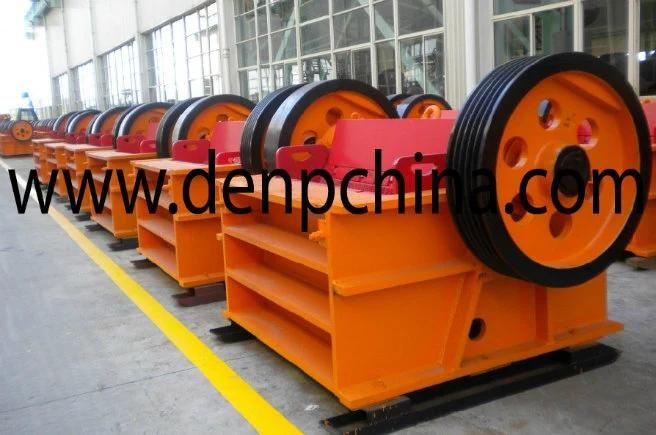

2. PE Series Jaw Crusher has the features of high crushing, even product size ratio, simple structure, reliable operation, easy maintenance, low operation cost etc.. It is widely used in mining, metallurgy, construction material, highway, railway etc. for crushing various materials with compression strength not more than 320Mpa. It is normally used as the first step/primary crusher in the complete crushing line. Jaw crusher from Mation with features of Simple structure and reliable operation, Easy maintenance and low operating cost will help you with a good solution on starting the line.
 3. Structure of PE jaw plate

PE Primary Crushing Jaw Plate
PE Primary Crushing Jaw Plate
PE Primary Crushing Jaw Plate
PE Primary Crushing Jaw Plate
PE Primary Crushing Jaw Plate
