• Transport Package：Carton, Pallet
• Sample Time：5days
• Mould Time：30days
• Products Tolerance：+,-1mm
• Mould Cavities：According to CAD File
• Mould Life：30000PCS
• Mould Core：H13
• Gravity Casting Frame Material：Ductile Iron,45#Steel
• Certification：RoHS, ISO 9001:2008, Ts16949
• Casting Surface Quality Level：2
• Tolerance Grade：7
• Pressure Chamber Structure：Vertical
• Model NO.：aluminum A380
• Specification：custom made
• Trademark：custom made
• Origin：China
• HS Code：8301600000
• Production Capacity：100k

Basic Info.

Model NO. aluminum A380 Pressure Chamber Structure Vertical Tolerance Grade 7 Casting Surface Quality Level 2 Certification RoHS, ISO 9001:2008, Ts16949 Gravity Casting Frame Material Ductile Iron,45#Steel Mould Core H13 Mould Life 30000PCS Mould Cavities According to CAD File Products Tolerance +/-1mm Mould Time 30days Sample Time 5days Transport Package Carton, Pallet Specification custom made Trademark custom made Origin China HS Code 8301600000 Production Capacity 100k

Product Description

PROCESS

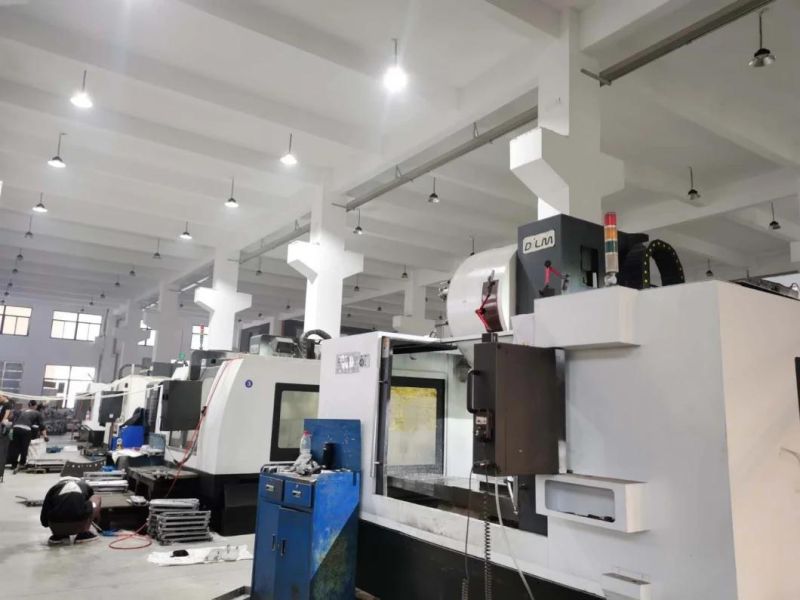

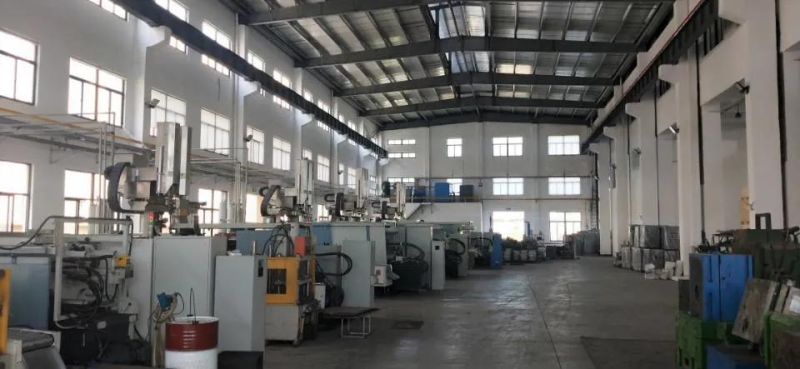

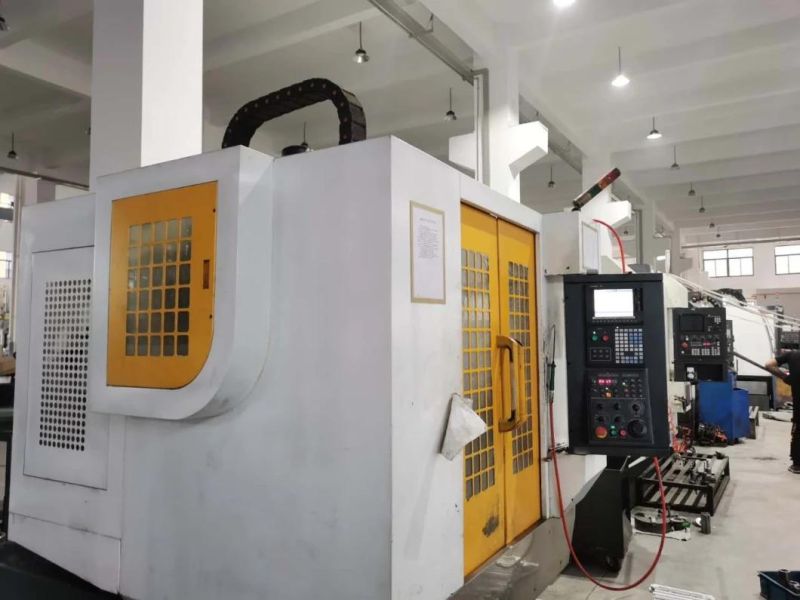

Workshop:

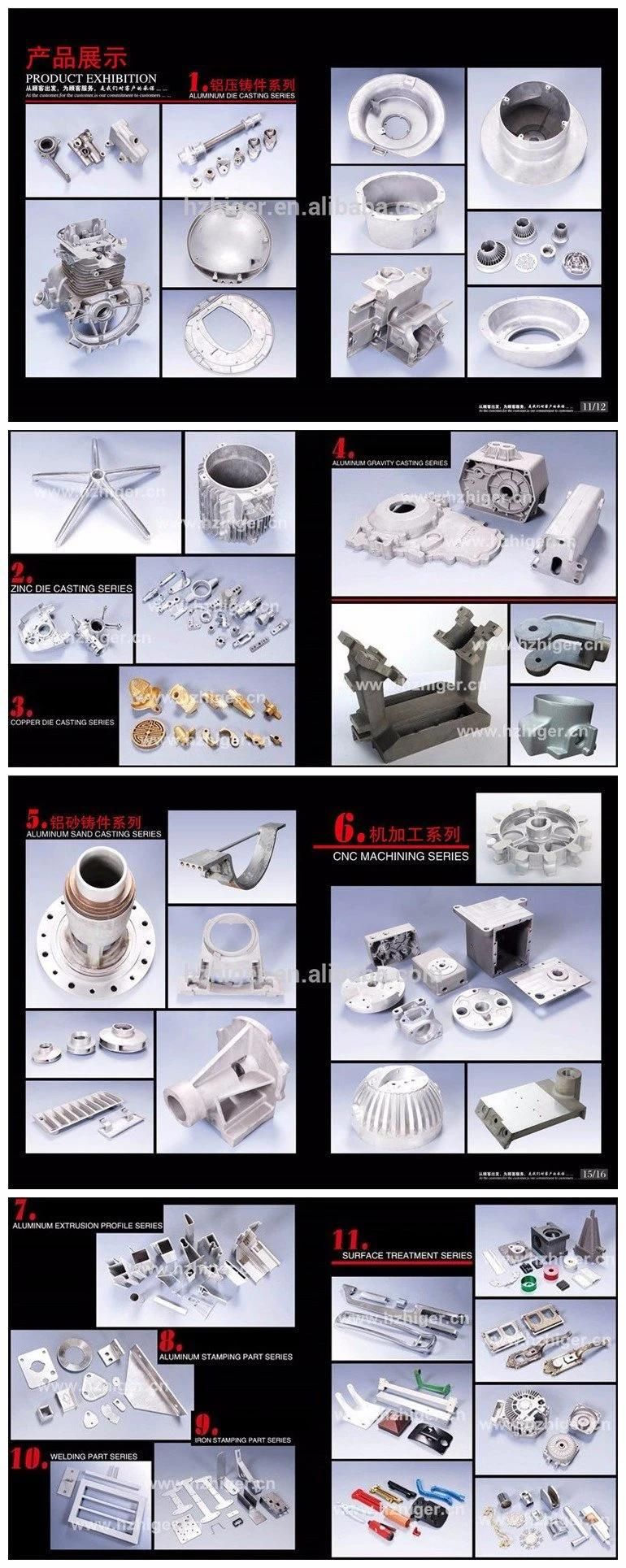

Business Range:

parts range: aluminum alloy parts:(A380,ADC12,ADC10,6061,Etc......)

                      Zinc alloy parts:(ZAMAK3, ZAMAK5 Etc......)

                      Brass alloy parts:(Si9Cu3, Cuzn-37 Etc......)

                      Iron parts: (Nodularc Iron, Ductile Iron Etc......)

                      Etc......

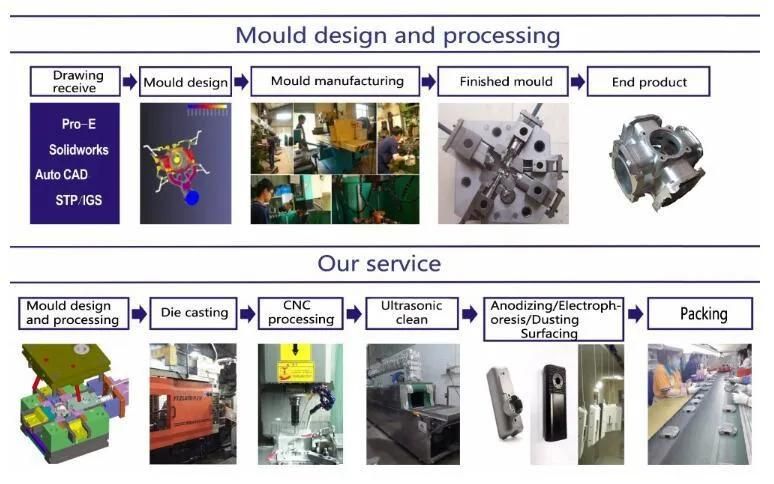

Production Process:

                     Die casting

                     Sand casting

                     Gravity casting

                     Stamping casting

                     Extrusion profile

                     Pressing casting

                     CNC

                     Etc......

Finishing:    E-coated, Powder coated, Anodizing, Painting, Etc......



Product Character:

-Customized Tool Design Drawings are Available;

-Molds are carefully machined to the closest tolerance using the latest equipment;
-The prototype should be created if the customer require;
-We offer secondary processing such as oil spraying, screen printing, assembly ect.
-Traceability is maintained from all inspection gages
-Mold repair and maintenance are also supported internally.





Advantage:



1.more than 20years experience in casting and machining

2.one-stop service,from mould design,casting,machining to surface treatment

3.abundant technology force, good condition of production and inspection,

and perfect after-sales service.

4:ISO9001,SGS,TS16949 certificate

5:have own quality laboratory,offer CMM inspection,leaking

test,Spectroscope raw material test.

6:rich experience in exporting,export products to more than 50 countries



Application:

               Machinery, Electrical, Agriculture, Building, Medical,Etc......

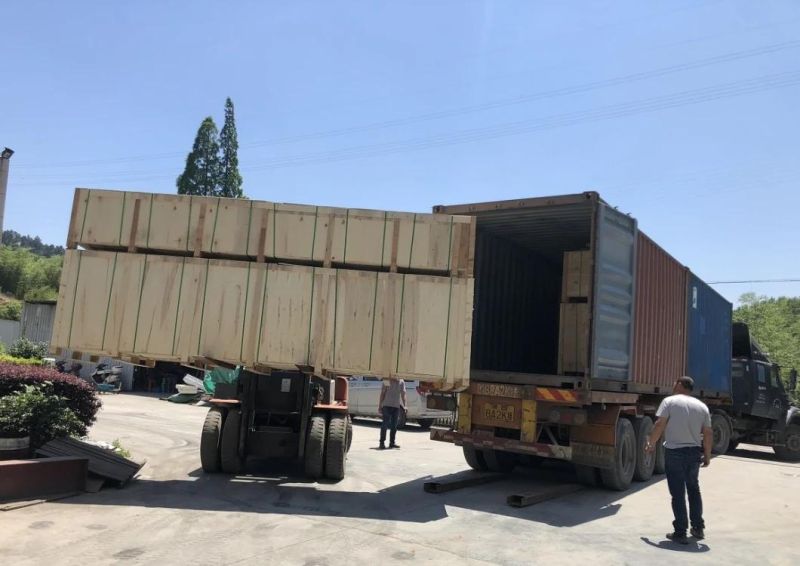

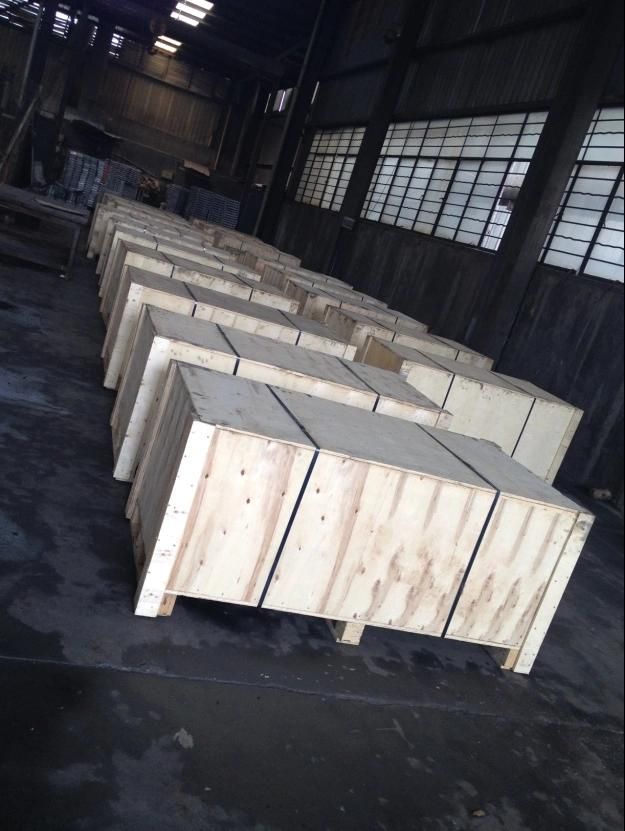

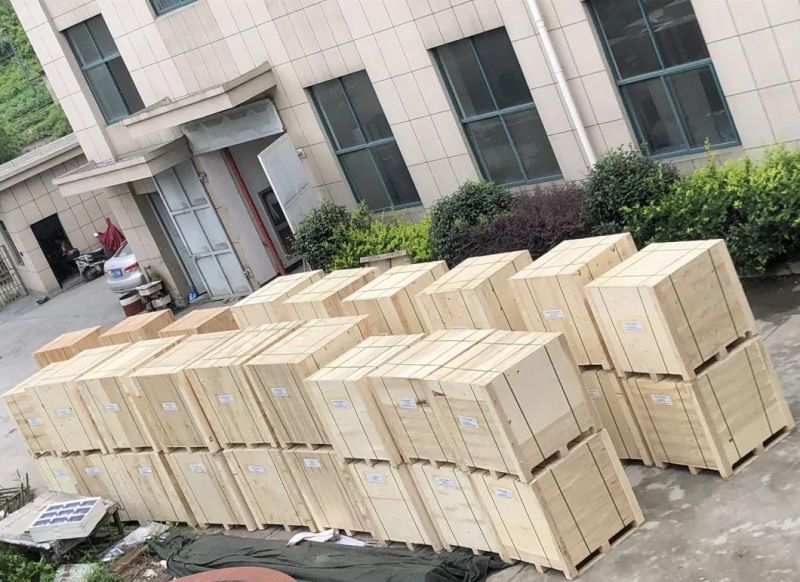

Package and Shipping:
