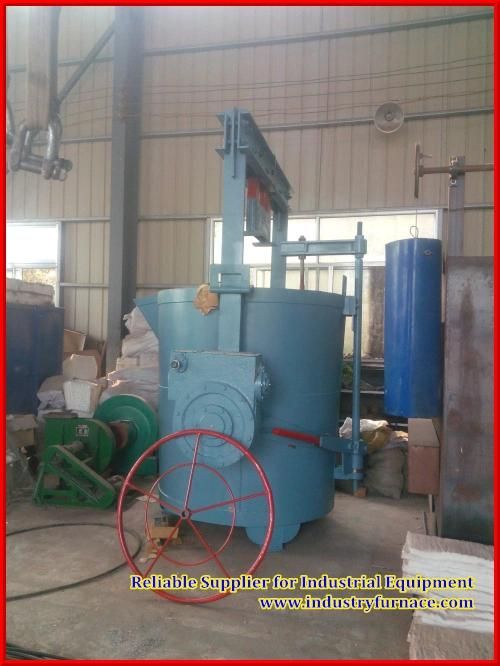

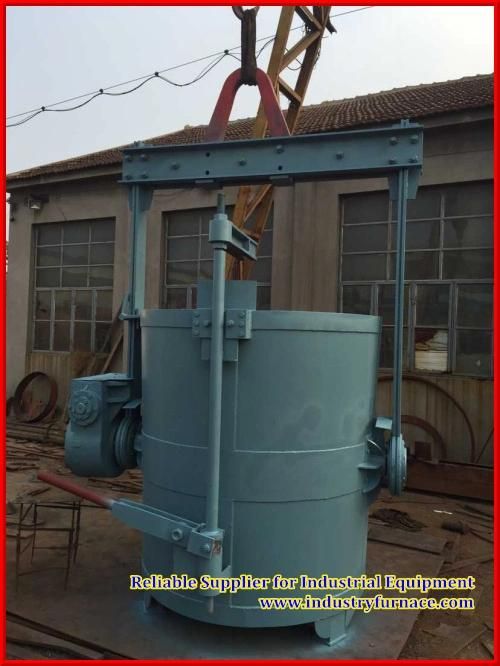

• Model NO.：Large Foundry Pouring Ladle Casting Ladle
• Coating：Painting
• Machining Tolerance：+,-0.01mm
• Standard：GB
• Capacity：0.3-45 Ton
• Color：Black,Grey,Green, or Any Color Required
• Transport Package：Plastic Film Protection
• Specification：0.3-45 Tons
• Trademark：HIKING
• Origin：Qingdao, China
• HS Code：845420900
• Production Capacity：1000 Sets,Year

TB Ladle for Molten Iron(Manual/Electrical Drive)  ModelUpper Openning Diameter Φ1(mm)Lower Openning Diameter Φ2(mm)Ladle Barrel Height H(mm)Width A(mm)Height B(mm)TB-0.3Φ520Φ47054010701310TB-0.5Φ606Φ54659011361349TB-0.75Φ643Φ58366512071456TB-1Φ722Φ65274012601479TB-1.5Φ830Φ75086013801856TB-2Φ897Φ81091014371890TB-2.5Φ943Φ85396015502057TB-3Φ1020Φ920103516212131TB-3.5Φ1045Φ945107016342157TB-4Φ1132Φ1020114517192183TB-5Φ1230Φ1110124818872525TB-7Φ1368Φ1238133720302678TB-8Φ1418Φ1278142824022960TB-10Φ1542Φ1402159225253095TB-12Φ1640Φ1480165227003283TB-15Φ1765Φ1586178528153540TB-20Φ1930Φ1736197330103870TB-25Φ2090Φ1878213134204050TB-30Φ2245Φ2015229637804200TB-40Φ2540Φ2315267540905225TB-45Φ2665Φ2395274043505340

4. Characters and Advantages:
1, Use reasonable choice of the rotation center, easy to operate, after casting is completed for basic self-rotary.
2, Uses double worm gear drives, although manufacturing requirements, but is with flexible and comfortable drive, a good two-way reversible.
3, Boom using forgings, reliable and secure than steel weldments.
4, The package body is thick steel plate, including the use of tapered bottom structure, bottom clamps, welding triple combination of insurance, that is to extend the service life, but also to ensure operator safety.
5, The main body and boom, gear box, and hand wheel, are equipped with chain card board that can lock at any time.
6, Trunnion and boom are equipped with a self-aligning bearing, good consistency.

5. Ladle Package and Delivery:
Packed by paulin film or wood box according to requirement.
