• Transport Package：Wooden Box or Seaworthy Package
• Green：Good Quality
• Certification：ISO 9001:2008
• Standard：JIS
• Forging Tolerance：+,-0.5mm
• Surface Treatment：Electroplating
• Model NO.：84S
• Specification：SGS
• Trademark：Rainbow
• Origin：Zhejiang
• HS Code：84639000
• Production Capacity：100sets

Basic Info.

Model NO. 84S Surface Treatment Electroplating Forging Tolerance +/-0.5mm Standard JIS Certification ISO 9001:2008 Green Good Quality Transport Package Wooden Box or Seaworthy Package Specification SGS Trademark Rainbow Origin Zhejiang HS Code 84639000 Production Capacity 100sets

Product Description

A.Description of goods:

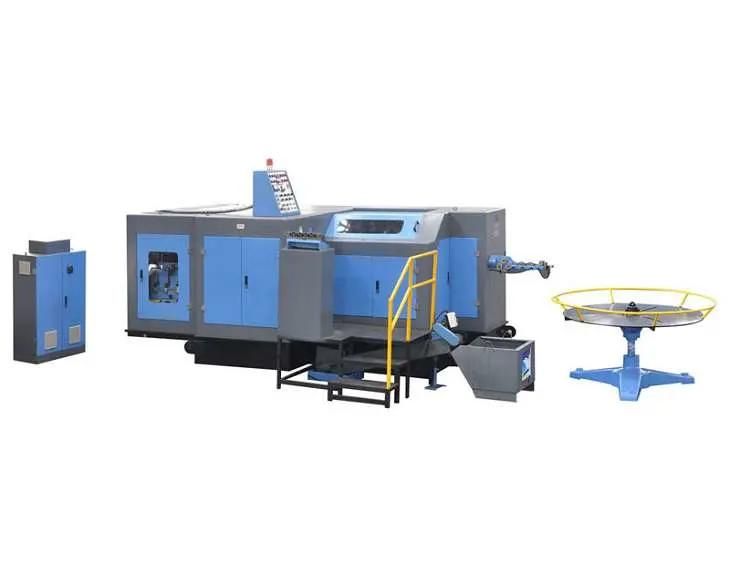

Model                               SRH-84S
Number of forging Station                  4
Forging Force kgs                       60,000
Maximum Cut off Diameter mm              10
Maximum Cut off Length mm               115
Knockout stroke mm                       92
Main ram stroke                          160
Max punch knockout stroke mm              18
Over diameter of cut off die mm              φ50x50L
Over diameter of punch die mm              φ45x125L
Over diameter of main die mm              φ60x130L
Main motor power kw                      22
Output pcs/min                           120-180
Die pitch mm                             70
Shank Length of blank mm                  15-90
Approx. Weight T                          14
Quantity                                  1
    Applicable bolt diameter  mm               5-8

We are the biggest dealer in China.
We have engaged in exporting more than 20 years.
80% fasteners machine in INDIA Import from us.
Such as Deepak , Empire ,Poojafore , LPS they all use our machines.
We engaged in exporting good quality products. We can give you the best price and best after-sale services.
If you have any questions, we can send engineer to your city solve problem for you.

For any questions,please feel free to contact me.
Look forward to cooperate with you.

Best regards,
Vera
