• Transport Package：Wooden Cases or Sea Worthy
• Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
• Material：Steel
• Machining：Machining Center
• Application：Machinery Parts
• Model NO.：M3,M4,M5,M6,M8,M10,M12
• Trademark：hongshuo
• Origin：China
• Production Capacity：200PCS,Month

Basic Info.

Model NO. M3/M4/M5/M6/M8/M10/M12 Application Machinery Parts Machining Machining Center Material Steel Certification CE, RoHS, ISO 9001:2000, ISO 9001:2008 Transport Package Wooden Cases or Sea Worthy Trademark hongshuo Origin China Production Capacity 200PCS/Month

Product Description

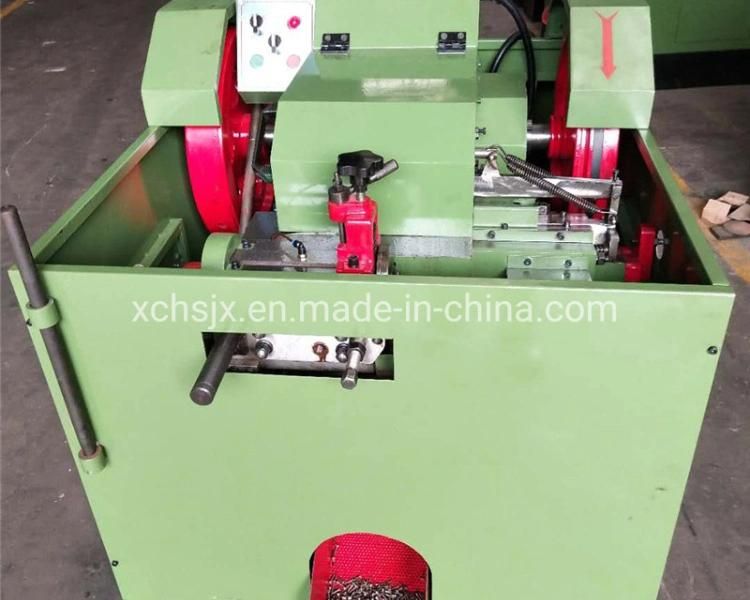

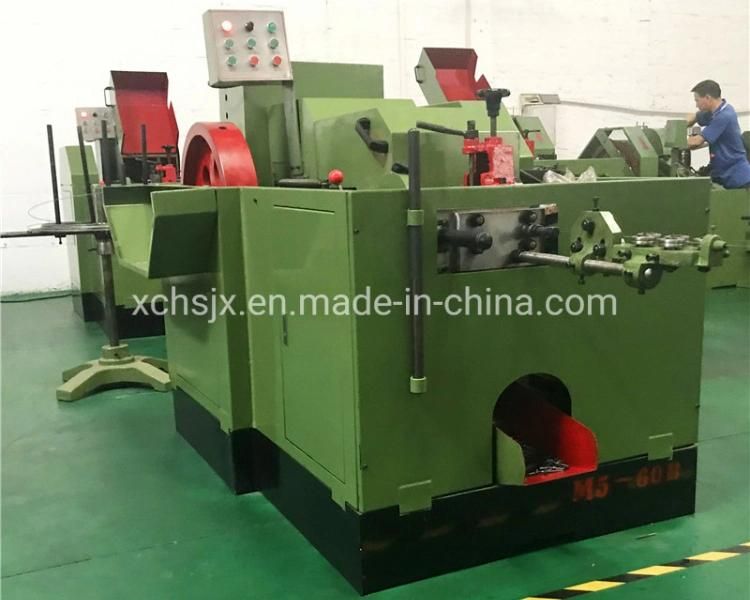

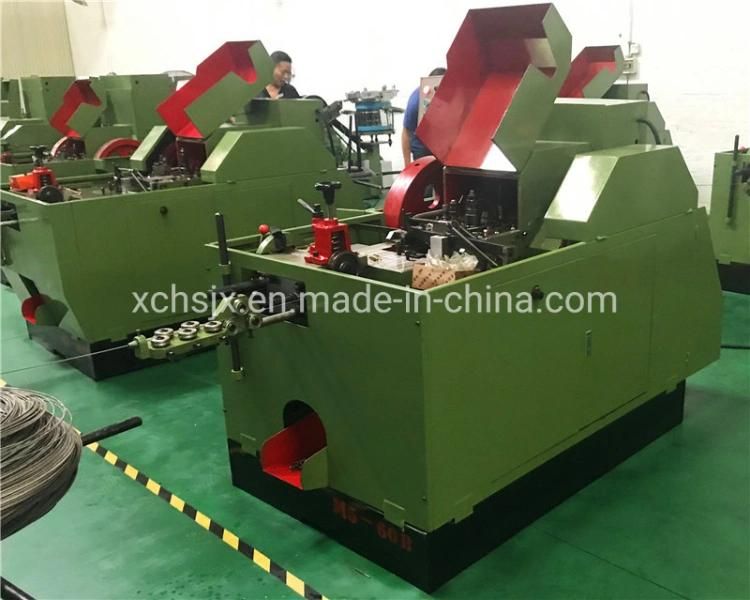

Product Photos

Product Description
This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.
Main technical parameters

Model	Max. Screw Dia (mm)	Max. Screw length (mm)	Capacity (pcs/min)	Motor (kw)	Weight (Ton)	Overall size (m)
M3-18A/B	3	18	160-180	0.75/0.37	0.6	1.3*0.75*0.9
M3-28A/B	3	28	160-180	0.75/0.37	0.6	1.3*0.75*0.9
M4-28B	4	28	120-160	1.5/0.37	0.97	1.5*0.9*0.9
M4-28D	4.5	28	180-200	1.5/0.37	1.2	1.6*1*1.2
M4-40B	4	40	120-150	1.5/0.37	0.97	1.5*0.9*1
M4-40D	4.5	40	180-200	1.5/0.37	1.2	1.6*1.1*1.1
M5-40B	6	40	120-150	2.2/0.37	1.8	1.8*1.1*1.1
M5-60B	6	60	110-140	2.2/0.37	1.8	1.8*1.1*1.1
M5-80B	6	80	80-100	2.2/0.37	1.9	2*1.1*1.2
M5-120B	6	120	50-70	3.6/0.37	2.3	2.8*1.3*1.3
M6-60B	8	60	80-110	4/0.37	2.8	2.3*1.3*1.3
M6-100B	8	100	60-90	4/0.37	2.7	2.3*1.3*1.3
M6-120B	8	120	60-70	4/0.37	3	2.4*1.3*1.4
M6-170B	8	170	40-70	4/0.37	3.7	3*1.3*1.5
M6-200B	8	200	40-55	4/0.37	3.7	3*1.3*1.5
M8-120B	10	120	50-90	5.5/0.37	4.6	3.4*1.5*1.5
M8-130B	10	130	50-90	5.5/0.37	4.6	3.4*1.51.5
M8-150C	10	150	40-50	5.5/0.37	5	3.5*1.7*1.7
M8-200B	10	200	25-60	7.5/0.37	6	3.8*1.6*1.7
M10-120B	12	120	40-70	11/0.75	7	3.3*1.71.7
M10-170C	12	170	40-60	11/0.75	7.5	4.2*1.81.7
M10-220C	12	220	35-60	11/0.75	7.5	4.2*1.81.7
M10-250C	12	250	30-45	11/0.75	8.5	5*1.8*1.7
M10-300C	12	300	25-35	15/0.75	9	5*1.9*2.1
M10-360C	12	360	20-30	15/0.75	12	6.7*2*2.6
M12-150C	14	150	40-50	15/0.75	10	3.9*1.9*1.8
M12-250C	14	250	35-50	15/0.75	11	5.3*2.21.9
M14-250C	16	250	35-45	11/0.75	11	5*2.2*2.15

Detail Photos

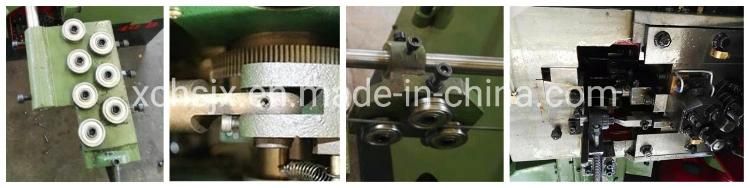

    Wire feeding system            Feeding system            Straightening system                Heading system

1. Wire feeding system: High speed lead traction, more accurate and much faster
2. Feeding system: Linkage lever leads to precise feed for the head
3. Straightening system: High precision straightening wheel makes the product more precise
4. Heading system: High precision oil pump for machinery provide more lasting power

Sales Market
 FAQ

--1--Q: Are you trading company or manufacturer ?
A: We are manufacturer since 1990. As many manufacturers, we first do business in domestic trade, and then do exporting business right now. You're welcome to our factory to inspect every production details and accept free training for machines.
--2--Q:  How can i find suitable screw making machine ?
A: Please tell us the two factors, SIZE (diameter and length) & TYPE of screw you want to make, we will customize expert solution of screw making line for you.
--3--Q:  Can i use one machine to make screws?
A: No, at least two machines. The cold heading machine to make the screw blank, the thread rolling machine to thread.
--4--Q:  Can i make different size and type of screws by one machine?
A: Yes, it just need to change the mould.
--5--Q:  What's the material waste during the production for screws?
A:   The wastage is less than 3%, one ton wire can make about 970kg nails.
--6--Q: What's the guarantee of the machine?
A: We will provide 2 years warranty. 100% responsible within 24hrs timely response.
--7--Q: How long is your delivery time?
A: Generally 30 days if in stock for screw making machines.
