Lost Foam Casting, Sand Casting, Iron Casting for Engineering Machinery

Hefei Casting & Forging Factory
  • Casting Method：Sand Casting
  • Casting Form Material：Sand
  • Casting Metal：Cast Iron
  • Casting Form Usage Count：100000
  • Surface Treatment：Shot Blast, Polishing
  • Surface Roughness：Ra3.2

Base Info

  • Model NO.：10 ton
  • Coating：Primer Coating ,Finish Coating
  • Machining Tolerance：+,-0.02mm
  • Standard：ASTM
  • Certification：RoHS, ISO 9001:2000, ISO 9001:2008, ISO14001,Ts16949,Ohsas18001
  • Weight：1- 160 Kg
  • OEM：OEM Available
  • Capacity：2000 Pieces Per Month
  • Transport Package：Pallet or Box
  • Specification：SGS
  • Trademark：JCB, HELI, TCM, NACCO
  • Origin：Anhui China
  • HS Code：843120900
  • Production Capacity：2000 Pieces Per Month

Description

                                             Lost Foam iron casting1Foundry ProcessLost Foam Line2Weight1-160 KG3DimensionsUP TO 700*700*8004MaterialGray iron, Ductile iron 5Main productsTransmission, Housing, Case, Valve, Hub, Wheel, Axle6CustomersNacco, JCB,Terex, CNH,Caterpiller, Toyota,Hitachi,Agco 7Free capacity 400 ton per month8Standard       ISO, DIN, EN, BS, ASTM, JIS ISO, DIN, EN, BS, ASTM, JIS9Surface treatmentPrimers & Finish coating10Websitehfcasting.en.made-in-china.com
Lost Foam Casting, Sand Casting, Iron Casting for Engineering Machinery
Lost Foam Casting, Sand Casting, Iron Casting for Engineering Machinery
Lost Foam Casting, Sand Casting, Iron Casting for Engineering Machinery

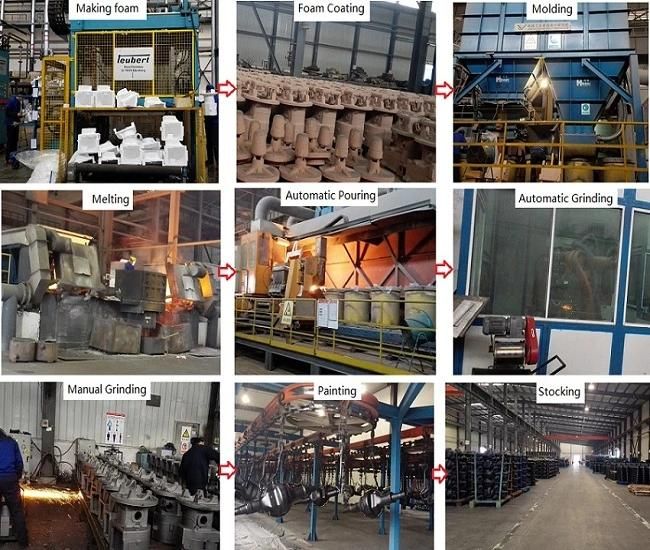

Lost Foam Casting:
Lost Foam Casting is known as Green Project of the 21st century. The key facilities of our lost foam foundry line were imported from the U.S.A, Germany. It is suitable to make medium & small high grade gray iron and ductile iron castings with high requirements of outside shape and complicated inside cavity. Castings have nice appearance and accuracy in dimension. Machining allowance of castings made by Lost Foam Process is much less than that made by green sand casting process and resin sand casting process, this will greatly improve the overall benefit of our clients.

Special Competences
  1. Green Foundry Demonstrated Enterprise
  2. Various casting technology
  3. Several automatic production line
  4. Adequate capacity
  5. High quality
  6. Competitive price
  7. With a large number of high-end customers in Europe America and Japan
Quality Equipment/Develop Software
Chemical composition analyzer-spectrometer
Metallographic analyzer,  photograph * 1000(Max)
Mechanical property analyzer Impact resistance tester
Hardness tester
Ultra sonic tester, Penetration inspection tester
CMM(ZEISS),
3D Laser Scanner

Develop Software:MAGMA
