Customized Metal Ductile Sand Casting Shell Casting for Genuine Parts

Qingdao Xinghe Machinery Co., Ltd.
  • Type：Clay Dry Sand
  • Casting Method：Directional Crystallization
  • Sand Core Type：Sodium Silicate Sand Core
  • Application：Machinery Parts
  • Machining：CNC Machining
  • Material：Iron

Base Info

  • Model NO.：OEM
  • Surface Treatment：Sand Blast
  • Surface Roughness：Ra3.2
  • Standard：ASME
  • Certification：RoHS, ISO 9001:2000
  • Name：Metal Ductile,Gray Sand Casting Shell Casting
  • Technology：Sand Casting,
  • Color：Nature or as Request
  • Weight：0.5-50kgs
  • OEM and ODM：100% with Drwings and Samples
  • Support Material：Iron Steel Aluminum Iron Ets
  • Testing：Magnetic Particle Inspector, CMM
  • Delivery Time：15-30 Days
  • Transport Package：Carton+Pallet for Elevator
  • Specification：oem elevator part
  • Trademark：XH
  • Origin：Qingdao
  • HS Code：73261990
  • Production Capacity：10000tons , Year

Description

Product NameCustomized Metal ductile/gray sand iron shell castingMaterialIron, etc.StandardDIN931,DIN933,DIN912,DIN125,DIN127,DIN934,DIN603 , SAE or GBProcessSand castingSizeAccording to the drawings or customer's requirementsCasting parts weight0.1 to 100KG, some aluminum sand casting parts can be several tonsMachiningCNC machiningSurface TreatmentZine palting, Painting, Powder coating, or as customers' requirementsApplicationMachinery, machining partsPackageUsually is standard export packing with Plywood Case and also can upon customers' requirementDelivery timeTooling: roughly 30 days; Production: roughly 35 daysShippingBy air, by express or by sea
Related Product Pictures

Customized Metal Ductile Sand Casting Shell Casting for Genuine Parts

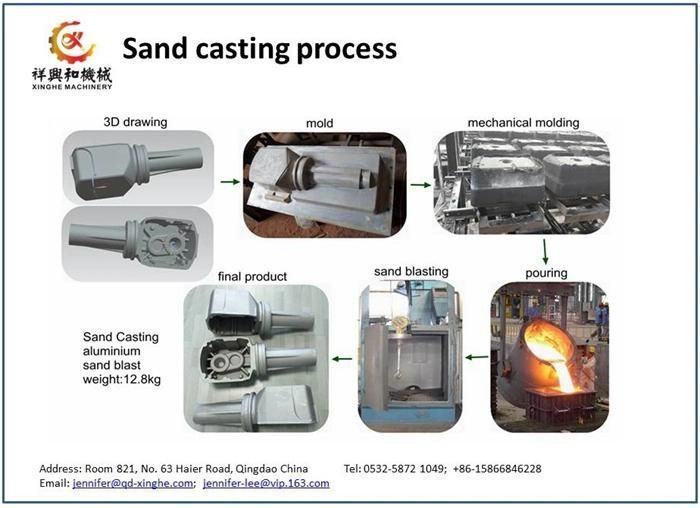

Sand casting flow chart

prepare drawing--check drawing--design mould--mechanical molding--melting and pouring
--cooling--sand removal--grinding--sand blast as follow:

Customized Metal Ductile Sand Casting Shell Casting for Genuine Parts

Qingdao Xinghe Machinery Co.,Ltd.

Sand casting

Plant has large-scale casting equipment of 50 sets, we have different technology with different type of sand kind and parts shape. The largest casting we can cast is 15 tons. Our yearly capacity for sand casting is about 2000 tons for cast steel and 30000 tons for cast iron.
Customized Metal Ductile Sand Casting Shell Casting for Genuine Parts

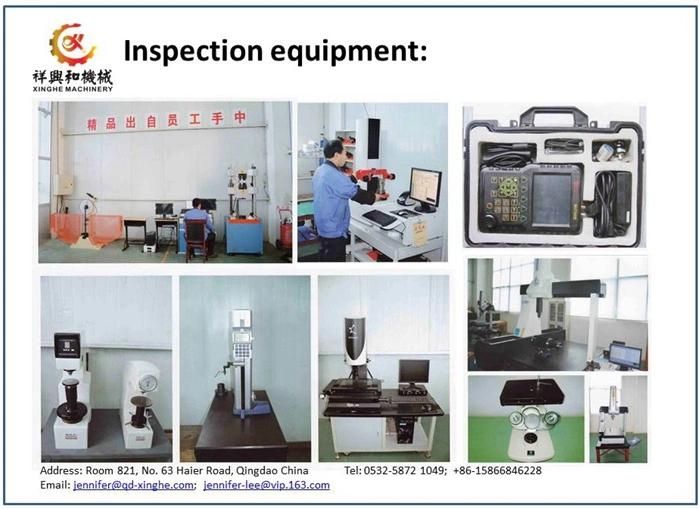

Inspection process

In order to ensure the quality of the orders, our independent  QC  members to carry out strict inspection    Customized Metal Ductile Sand Casting Shell Casting for Genuine Parts

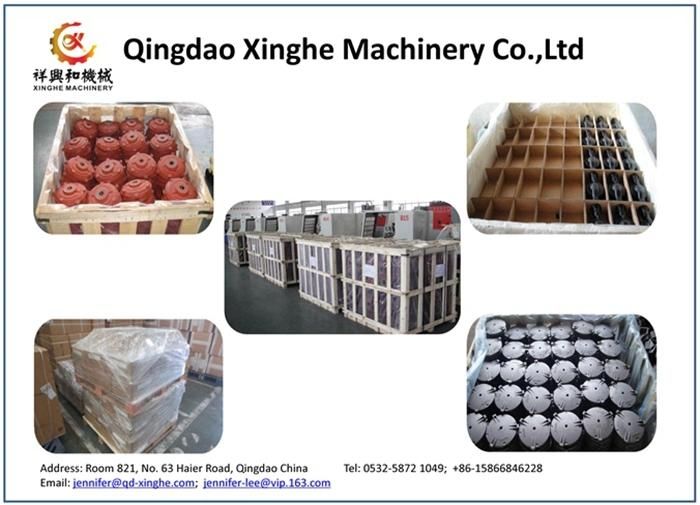

Packaging & Shipping

1.) wooden, carton;

2.) pallet;

3.) as customers' requirement.

Customized Metal Ductile Sand Casting Shell Casting for Genuine Parts


FAQ
1.    How can I get thequotation?

Please send us information for quote: drawing, material, weight, quantity and request.

2.    If we don't have drawing, can you make drawing for me?

Yes, we make the drawing of your sample and duplicate the sample.

3.    When can I get thesample?

Sample: 25-30 days after you start to make mold. The accurate time depends on your product.

4.    What is your main order time?

Order time: 35-40 days after the payment. The accurate time depends on your product.

5.    What is yourpayment method?

Tooling: 100% TT advanced.

Main order: 50% deposit, balance 50% to be paid before shipment.

6.    Which kind of file format you can read?

PDF, ISGS, DWG, STEP, MAX.
