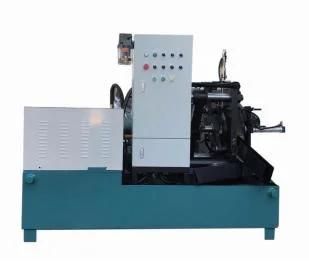

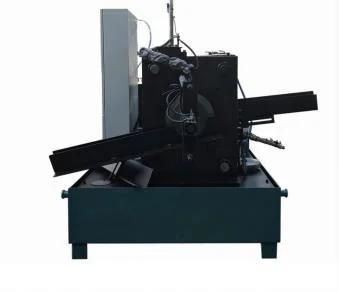

Spjz350 Automatic Shaping Machine
Jinan Linteng Technology & Trade Co., Ltd.- Material:Iron
- Application:Auto Parts
- Molding Technics:Shaping
- Molding Style:Stamping
- Processing Object:Metal
- Heat Treatment:Normalizing
Base Info
- Transport Package:as Required
- Certificate:ISO 9001: 2000
- Certification:CE
- Standard:GB
- Forging Tolerance:±1mm
- Surface Treatment:None
- Model NO.:SPJZ350
- Specification:CE
- Origin:China
- HS Code:8455219000
- Production Capacity:100 Set Per Year
Description
Basic Info.
Model NO. SPJZ350 Surface Treatment None Forging Tolerance ±1mm Standard GB Certification CE Certificate ISO 9001: 2000 Transport Package as Required Specification CE Origin China HS Code 8455219000 Production Capacity 100 Set Per YearProduct Description
shaping machine:
High precision requirement for ring rolling machine will limit productivity and have high cost, therefore, sizing process after ring rolling not only increase precision of machining parts but only decrease requirement for ring rolling machine, that increase process comprehensive economic and technical level.
Sizing after rolling process can decrease roundness, taper degree and diameter size error greatly to improve precision further.
Serial No. | Item | Value |
1 | Max. Machining OD (mm) | 400 |
2 | Min. Machining OD (mm) | 60 |
3 | Max. Machining Height (mm) | 150 |
4 | Nominal Force (KN) | 180 |
5 | Stroke Frequency (no/min) | 15 |
6 | Punch Max. Stroke (mm) | 250 |
7 | Oil Cylinder ID (mm) | 150 |
8 | Oil Cylinder Working Pressure (Mpa) | 12 |
9 | Hydraulic Motor Power (KW) | 18.5 |
10 | Outside Size (L*W*H) (mm) | 2500*1500*1800 |
11 | Cooling Water Solenoid Valve 24V | 2W-160-15 |
