• Model NO.：iron casting
• Machining Tolerance：+,-0.10mm
• Standard：AISI
• Certification：ISO 9001:2008
• Size：According to Your Drawing
• Machining Process：Drilling , Milling, Boring etc.
• Blank Process：Sand Casting
• Lead Time：45 Days
• Transport Package：Standard Export Package
• Specification：SGS
• Trademark：Mingda
• Origin：Hebei, China
• HS Code：7201100000
• Production Capacity：200 Ton,Tons Per Month

Item Name

High quality precision ductile iron casting for auto part

 General Products
 Application/Service Area

Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, Agriculture machine metal Parts, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc.

 Main blank Process for Casting

Sand Casting , Resin Sand Casting, Green Sand Casting, Shell Molding, Automatic Molding, Lost Wax Casting, Lost Foam Molding Casting

 Blanks Tolerance -Casting  Tolerance
CT9-10 for  Machine Molding Process,
CT8-9 for Shell Molding and Lost Foam Molding Casting Process
CT10-11 for Manual Molding Sand  casting Process
 Applicable Material

See Table Below (Ductile Iron Casting, Grey Iron Casting)
OR According to customer requirement

 Casting Blank Size  /Dimensions
2 mm-2000mm / 0.08inch-79inch  for casting iron, according to customer requirement
 Casting Blank Weight
Range from 0.01kg-1000kg for casting iron
 Applicable Machining Process

CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and  etc.

 Machining Tolerance
From 0.005mm-0.01mm-0.1mm
 Machined Surface Quality
Ra 0.8-Ra3.2, according to customer requirement
 Applicable Heat Treatment

Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching

 Applicable Finish Surface  Treatment

Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting.

 MOQ
For iron casting : 100pcs
For Machining : 50pcs
 Lead Time
45days from the receipt date of deposit for ductile iron casting

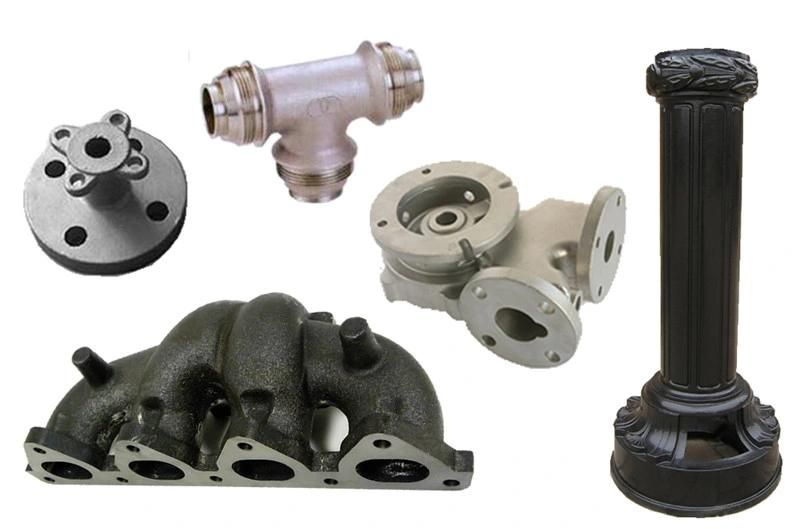

Products show

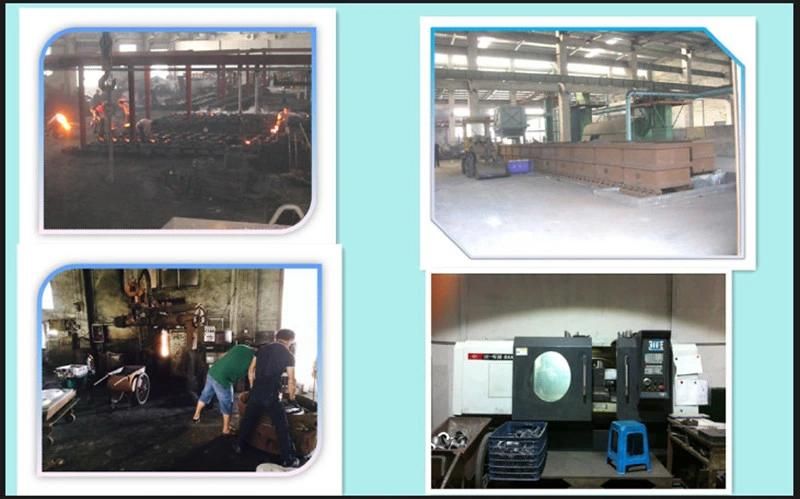

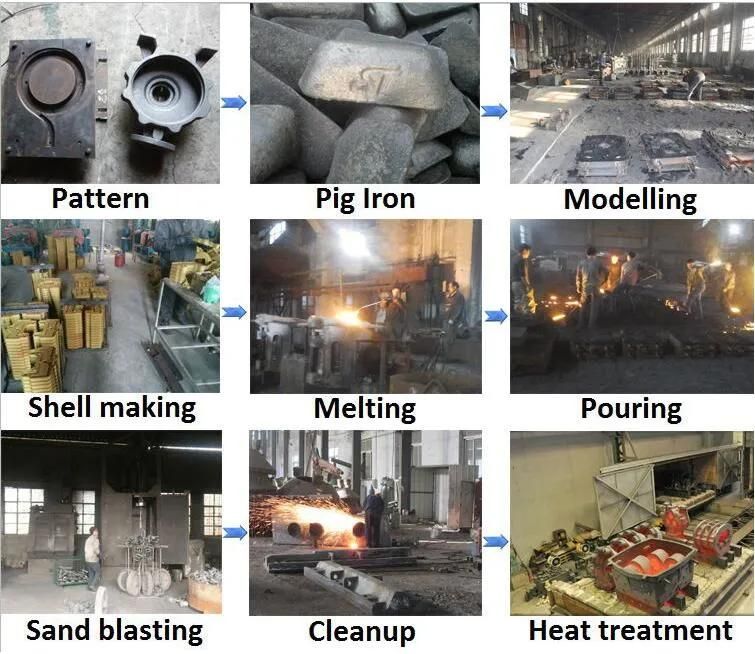

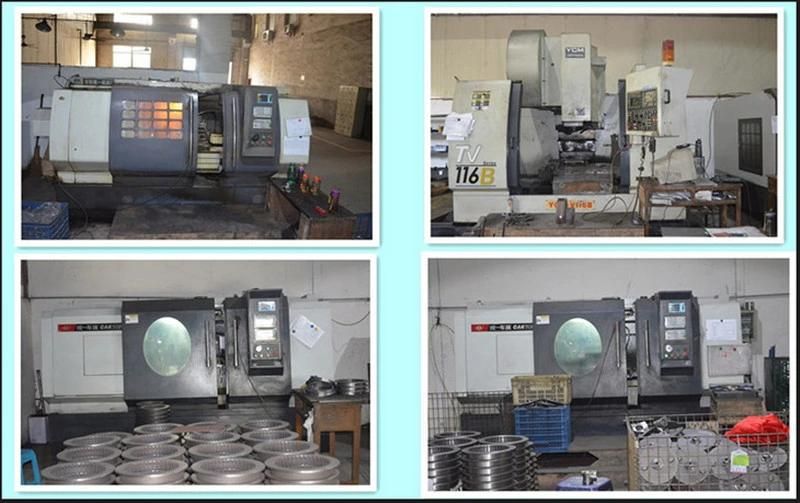

Process

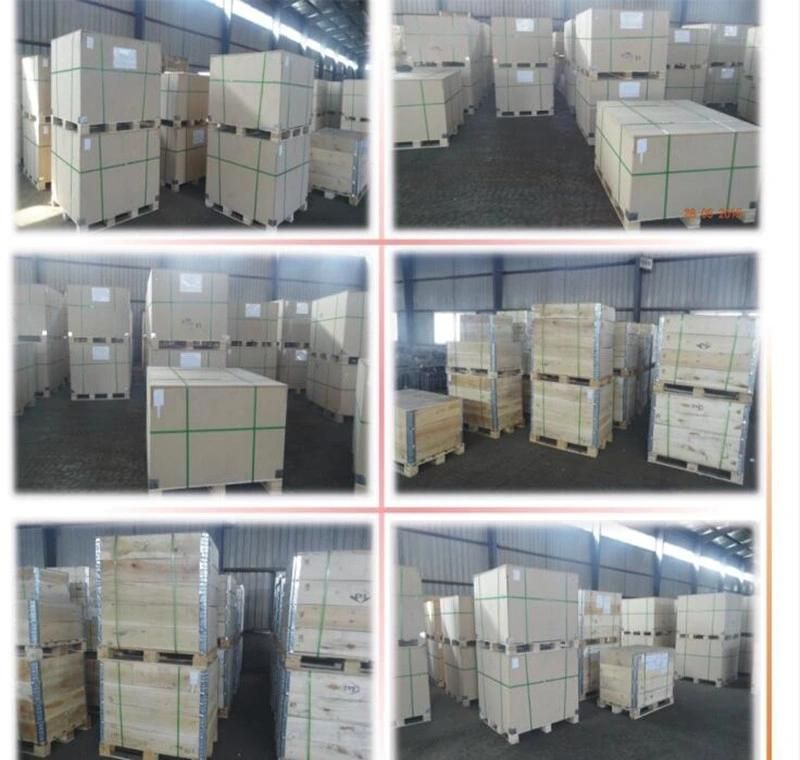

Packing and shipping
