• Model NO.：Cast Iron Sand Casting
• Surface Treatment：Dacromat Coating, Finish Painting etc.
• Surface Roughness：Ra 0.8-Ra3.2
• Standard：ASTM,AISI,JIS,DIN etc
• Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008, as Customer Requests
• Product Material：Ggg60, Ggg50, Ggg40, or as Clients Require
• Blank Process：Cast Iron Sand Casting
• Casting Tolerance：CT9-11 for Iron Casting
• Machining Process：CNC Machining, Drilling, Milling, Boring, Tappin
• Machining Tolearnce：From 0.005mm-0.01mm-0.1mm
• Machined Surface Quality：Ra 0.8-Ra3.2, According to Customer Requirement
• Surface Finish Treatment：Dacromat Coating, Finish Painting
• Package for Iron Sand Casting：Multilayer Wooden Box with Big Plastic Bag Inside
• Lead Time：50 Days for Cast Iron Sand Casting
• Service：China Foundry Custom Ductile Cast Iron Sand Castin
• Transport Package：Multilayer Wooden Box with Big Plastic Bag Inside
• Specification：Cast Iron Sand Casting
• Trademark：Matech
• Origin：Zhejiang
• HS Code：8432900000
• Production Capacity：150 Tons,Month of Cast Iron Sand Casting

Item Name

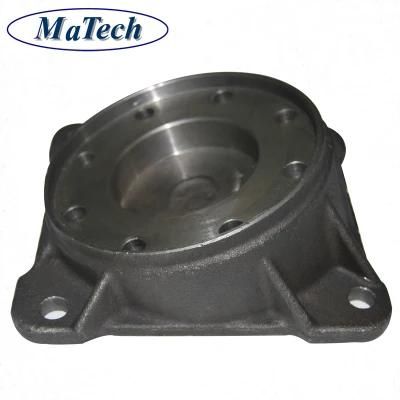

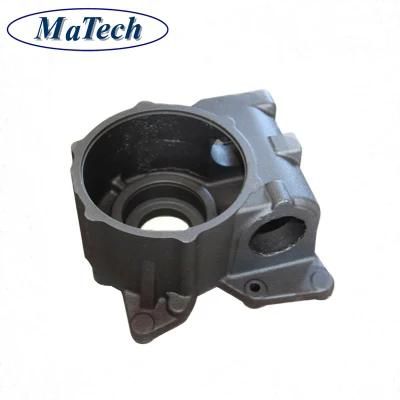

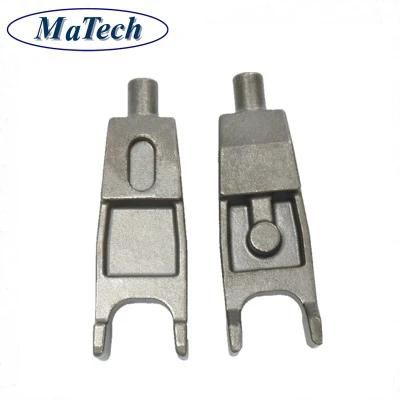

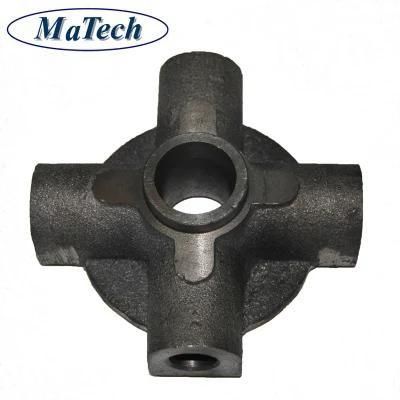

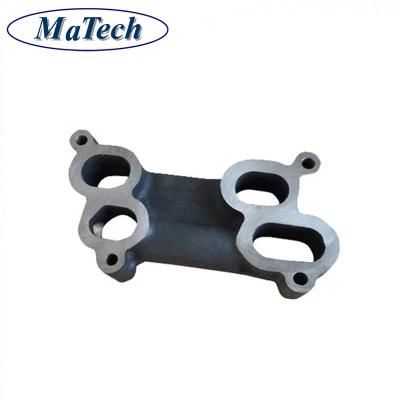

China Foundry Custom Ductile Cast Iron Sand Casting

 General Products

 Application/Service Area

Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, Agriculture machine metal Parts, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc.

 Main blank Process for Casting

Sand Casting , Resin Sand Casting, Green Sand Casting, Shell Molding, Automatic Molding, Lost Wax Casting, Lost Foam Molding Casting etc.

 Blanks Tolerance -Casting  Tolerance

CT9-10 for  Machine Molding Process,

CT8-9 for Shell Molding and Lost Foam Molding Casting Process

CT10-11 for Manual Molding Sand  casting Process

 Applicable Material

See Table Below (Ductile Iron Casting, Grey Iron Casting)

OR According to customer requirement

 Casting Blank Size  /Dimensions

 2 mm-2000mm / 0.08inch-79inch  for casting iron, according to customer requirement

 Casting Blank Weight

Range from 0.01kg-1000kg for casting iron

 Applicable Machining Process

CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and  etc.

 Machining Tolerance

From 0.005mm-0.01mm-0.1mm

 Machined Surface Quality

Ra 0.8-Ra3.2, according to customer requirement

 Applicable Heat Treatment

Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching

 Applicable Finish Surface  Treatment

Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting etc.

 MOQ for mass production

For Cast Iron Sand Casting: 100pcs, or as customer required

For Machining: 50pcs

 Lead Time

50 days for Cast Iron Sand Casting



Ductile Iron Casting Material Comparison Table:

Cast iron with nomular graphite

DIN EN 1563

Germany

DIN 1693

France

NF

Great Britain

BS

Netherlands

NEN

Sweden

MNC

USA

ASTM A536

EN-GJS-350-22-LT

GGG-35.3

FGS 370-17

370/17

GN 38

0717-15

----

EN-GJS-400-18-LT

GGG-40.3

    ----

----

----

----

60-40-18

EN-GJS-400-15

GGG-40

FGS-400-12

420/12

GN 42

0717-02

60-40-18

EN-GJS-400-10

----

----

420/12

----

----

65-45-12

EN-GJS-500-7

GGG-50

FGS-500-7

500/7

GN 50

0727-02

65-45-12/

80-55-06

EN-GJS-600-3

GGG-60

FGS-600-3

600/3

GN 60

0732-03

80-55-06

EN-GJS-700-2

GGG-70

FGS-700-2

700/2

GN 70

0737-01

100-70-03

EN-GJS-800-2

GGG-80

FGS-800-2

800/2





120-90-02

EN-GJS-1000-5 (DIN EN 1564)

GGG-100B/A

----

----

----

----

850-550-10

EN-GJS-AX NiSiCr35 5 2

GGG-

NiSiCr 35 5 2

FGS-

Ni35Si5Cr2

S5S

----

----

Type D-5S



Grey Iron Casting Material Comparison Table:

Cast iron with lamellar graphite

DIN EN 1561

Germany

DIN 1691

France

NF

Great Britain

BS

Netherlands

NEN

Sweden

MNC

USA

ASTM A48

EN-GJL-150

GG-15

Ft 15 D

Grade 150

GG 15

01 15-00

20 B / 25 B

EN-GJL-200

GG-20

Ft 20 D

Grade 180/220

GG 20

01 20-00

25 B / 30 B

EN-GJL-250

GG-25

Ft 25 D

Grade 220/260

GG 25

01 25-00

35 B / 40 B

EN-GJL-300

GG 30

Ft 30 D

Grade 300

GG 30

01 30-00

40B / 45 B


FAQ:

1. What do you do?We are a professional manufacturer with over 15 years' export experience for designing and producing vehicle machinery parts.
 2. How can I get some samples? If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.

3. Can you make casting according to our drawing?Yes, we can make casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.

4. Can you make cast iron sand casting based on our samples?Yes, we can make measurement based on your samples to make drawings for tooling making.

5. What's your quality control device in house?We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of casting.
