Automatic Double Head Core Shooting Machine

QUANZHOU YUELI AUTOMATION CO., LTD.
  • Machining：CNC Machining
  • Application：Hardware
  • Sand Core Type：Resin Sand Core
  • Casting Method：Vacuum Aspirated Casting
  • Type：Clay Dry Sand
  • Material：Copper and Copper Alloy

Base Info

  • Trademark：Yueli
  • Specification：1420*680*1700
  • Transport Package：Wooden Package
  • Certification：ISO 9001:2000
  • Standard：GB
  • Surface Roughness：Ra0.05
  • Surface Treatment：Sand Blast
  • Model NO.：YL-400-B
  • Origin：China
  • HS Code：8458912090
  • Production Capacity：3000PCE,Year

Description

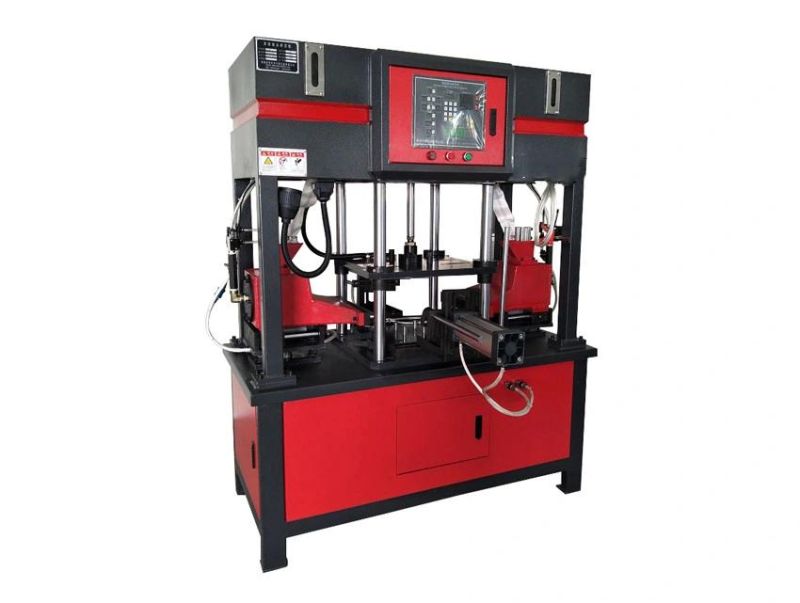

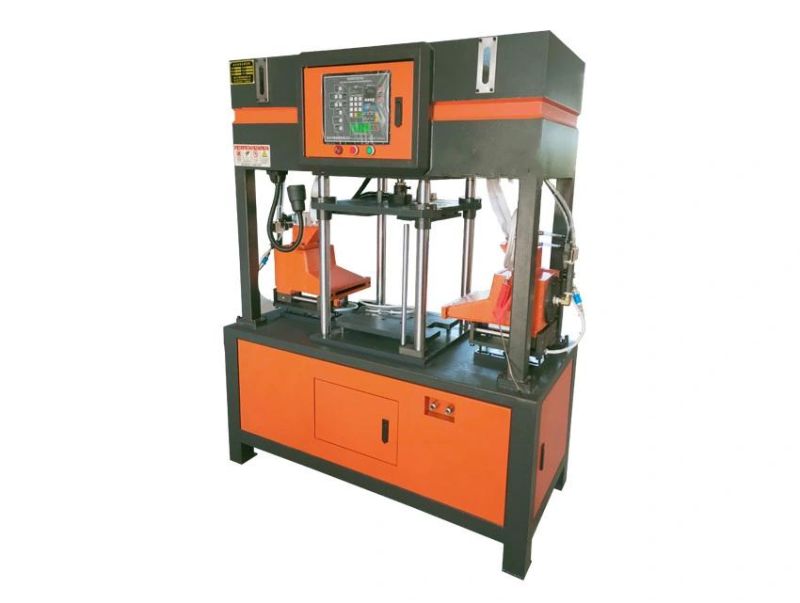

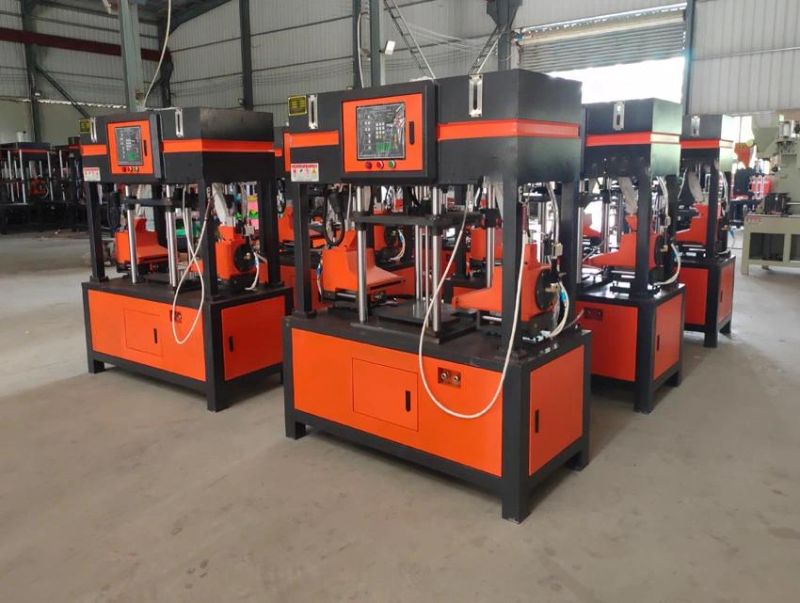

Automatic Double Head Core Shooting MachineAutomatic Double Head Core Shooting MachineAutomatic Double Head Core Shooting Machine
II.Technical Parameter
ContentsYL-400-BYL-400-II(extra large)
Max sand core weight3.2kg*24.5kg*2
Max mold size340*450*200mm340*450*2280mm
Max distance between nozzles270mm270mm
Max stroke of vertical clamping≤300mm≤500mm
Sand box left and right distance150mm150mm
Equipment power8kw8kw
Net weight520kg600kg
Dimension1420*680*1700mm1420*680*2100mm

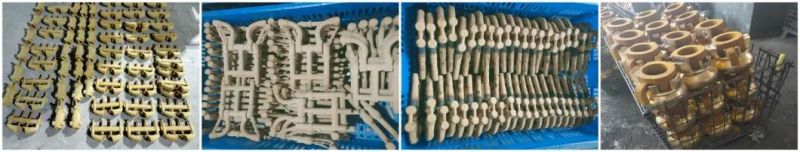

III.Finished production
Automatic Double Head Core Shooting Machine

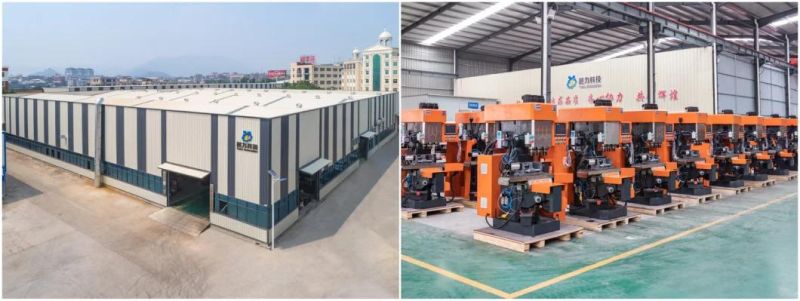

IV.Production workshopAutomatic Double Head Core Shooting Machine
V.Package and Loading
Automatic Double Head Core Shooting Machine
If you have any interest, pls feel free to contact at any time.
