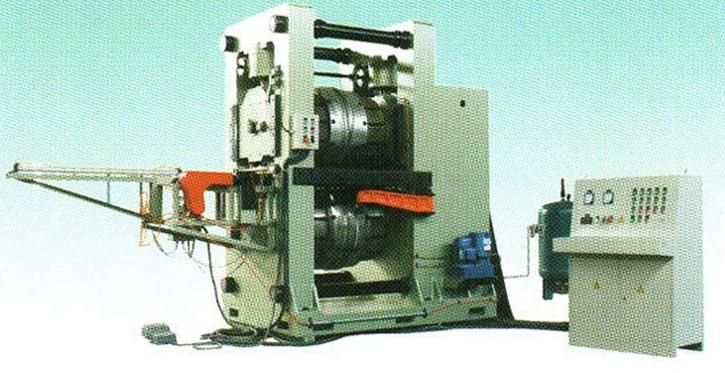

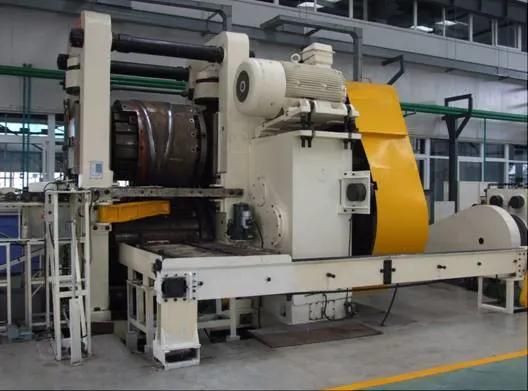

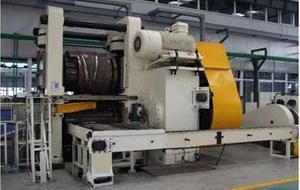

D46-1100 Rolling Mill for Precision Auto Shaft
Jinan Linteng Technology & Trade Co., Ltd.- Processing Object：Metal
- Molding Style：Forging
- Molding Technics：Roll Forging
- Application：Auto Parts
- Material：Iron
- Heat Treatment：Normalizing
Base Info
- Model NO.：D46-1100
- Surface Treatment：None
- Forging Tolerance：±1mm
- Standard：GB
- Certification：CE
- Certificate：ISO 9001: 2000
- Transport Package：as Required
- Specification：CE
- Origin：China
- HS Code：8455219000
- Production Capacity：100 Set Per Year
Description
Basic Info.
Model NO. D46-1100 Surface Treatment None Forging Tolerance ±1mm Standard GB Certification CE Certificate ISO 9001: 2000 Transport Package as Required Specification CE Origin China HS Code 8455219000 Production Capacity 100 Set Per YearProduct Description

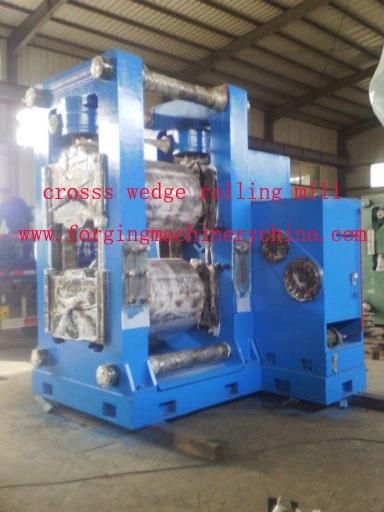

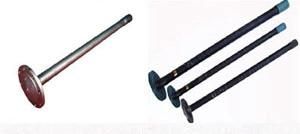

Cross wedge rolling machine is widely used in forging connecting rod, crankshaft, camshaft, auto parts, etc., replace air hammer with the advantage of high productivity, efficiency, high rate of finished products. What's more, the tools can be used three times longer than air hammers.
| Rollers Pitch | Rollers Dia. | Rollers Length | Max. Dia. of rolling parts | Max. length of rolling parts | Rolling speed | Adjustment of central distance between rollers | Adjustment of rollers' phase angle° | Motor power |
| 1100mm | 820mm | 1100mm | 115mm | 900mm | 6 r.min-1 | ≥±25mm | ≥±3° | 132 kW |
