• Model NO.：custom
• Coating：Syrup or pulp waste
• Machining Tolerance：+,-0.01mm
• Standard：ASME
• Slag Pots in Cast Steel：Heavy Fabrication Division
• Materia：DIN 17182 GS-16mn5 1.1131
• Fact Cubage：22 Cbm
• Weight：10 -100 T
• Product Application：Slag Pot in Steel Works.
• Cast Tolerance：Unless Otherwise ASTM, En, DIN, ISO, JIS, GB
• Quality System：ISO 9001
• Pattern：New Natural Wooden Mold;
• Quality Inspection：Chemical Analysis; -Mechanical Performance; -Dim
• Name：Slag Pot
• Transport Package：Simple Packing
• Specification：custom
• Trademark：ZTIC
• Origin：Luoyang, Henan
• Production Capacity：2000PCS,Year

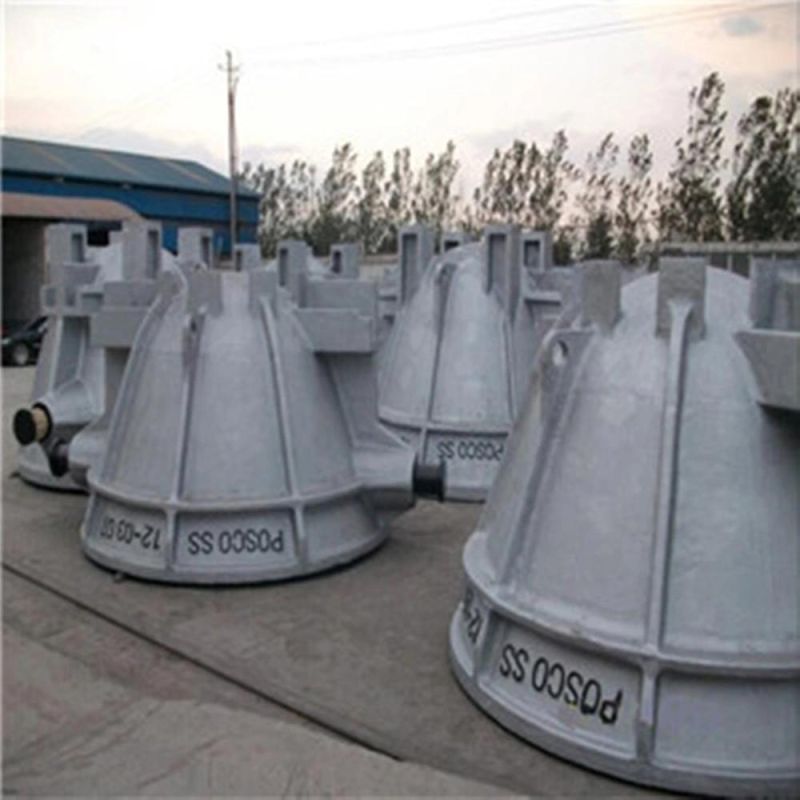

Casting Slag Pot
Heavy Fabrication Division
Slag Pots in Cast Steel
expertise products made in China
Specifications
-Accurate dimension;
-ISO 9001 quality system;
-Safe operating product;
-Professional casting skill;
-Complete requirements
Casting Slag Pot(metallurgy slag pot)


Feature:
Material: steel, self-smelting according to standard: ASTM, EN, DIN,ISO, JIS, GB, etc;
Sand mold casting: Steel casting, through sodium silicated-bonded sand and/or resin sand;
Pattern: new natural wooden mold;
Non-destructive examination:
-visual detection ;
-Ultrasonic test ;
-Magnetic particle inspection ;
Quality inspection:
-Chemical analysis;
-Mechanical performance;
-Dimension report;
Cast Tolerance: unless otherwise  ASTM, EN, DIN,ISO, JIS, GB
Machining tolerance: unless otherwise according to dwg. requirement;

Product Parameter:
Material: DIN 17182 GS-16Mn5 1.1131
Fact cubage: 22 CBM
Wt.: 10 -100 t
Product application: slag pot in steel works.
 is a modern industrial China group specialized in the producing of heavy plates
in low-alloyed carbon steel grades. Organised as full integrated works, the major production facilities
include cokery plant, blast-furnaces, oxygen steelplant - equipped with BOF-converters, secondary
metallurgy, vacuum degassing, continuous and ingots casting - and plate mills.
Complementary to the core business, a "down-stream" manufacturing unit is available as a branch of the
Heavy Fabrication: it is mainly focused on the supply of slag-pots made out of cast-steel (GS)
everywhere the emphasis is placed on large buckets in capacity up to 45 m³
(1.575 cu. feet).
The expertise of CITICIC  arises from its privilege to be both user and manufacturer of slag
pots. The extensive experience gained in designing and engineering slag-pots is primarily based on the
pots operating at the own steel plant and secondly on about 3.000 items produced over the 40 last years
also in co-operation with manufacturers of slag pot carriers and service providers to metallurgical
industries.
The Dillinger slag pots are operating worldwide whereverreliable tools are required for the disposal of
molten or solid slag which arises from metallurgical or chemical processes.
Heavy Fabrication Division
Product definition
The product covered here is a load-bearing device whose sole purpose is to collect molten or solid slag
generated during metallurgical or chemical processes, to retain it during transport and to deposit it at a
place of disposal.
Slag pots are crucial items as they are part of a lifting equipment and therefore undergo in terms of
mechanical design engineering and handling the national safety regulations of the state where they are
supposed to be operated. The design of the Dillinger slag pots intended to be used within the European
Community meets the requirements ofthe European Machinery Directive 2006/42/EC: every slag pots is
supplied with the CE conformity marking.
Company Profile

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
     2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts
     3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time
A: parts lead time 1-2months, machines 2-3months.

Q:Payment terms
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping

Q: Quality warranty?
A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: we can supply technical guide for machines running test and parts maintenance if end user needs.
