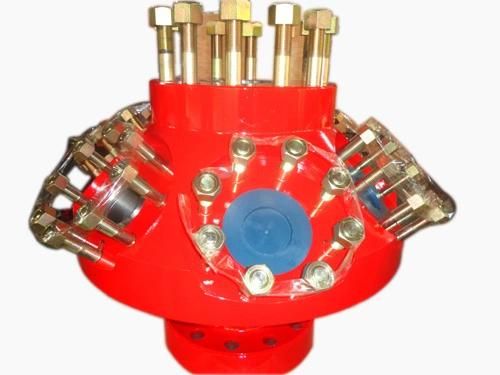

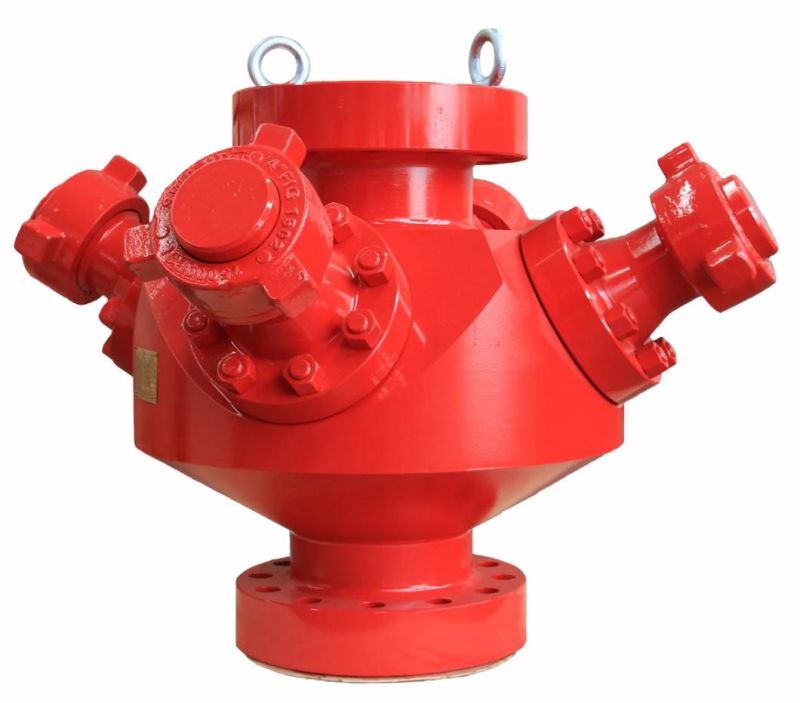

Goat Head Frac Adapter

Jiangsu Oruid Petroleum Machinery Co., Ltd.
  • Transport Package：Plywood Crate
  • Certification：ISO 9001:2015
  • Standard：API
  • Material：Alloy Steel
  • Molding Style：Forging
  • Specification：4-1,16" ~ 7-1,16"

Base Info

  • Model NO.：4-1,16" ~ 7-1,16"
  • Trademark：ORD
  • Origin：China

Description

Basic Info.

Model NO. 4-1/16" ~ 7-1/16" Trademark ORD Origin China

Product Description

Goat Head Frac AdapterGoat Head Frac AdapterGoat Head Frac Adapter

Goat Head Frac AdapterJiangsu Oruid Petroleum Machinery Co., Ltd. is dedicated to produce reliable oil/gas equipment for more than 15 years.
Our main products are oil drilling equipment and accessories (including valves, wellhead and Christmas tree equipment, downhole tools, choke and kill manifolds, cementing and fracturing equipment, fracturing systems, etc.) and design, machining and manufacturing of general parts.

Jiangsu Oruid Petroleum Machinery Co., Ltd. has API Q1, 6A, 16C, ISO 9001, ISO 14000, ISO18000 and other quality & environmental certificates. And we got Year 2020 Certificate of Export Commodity Brand from China Council for the Promotion of International Trade from China Chamber of International Commerce. Products are exported to the United States, Canada, the Middle East, South America, Europe and other countries and regions, which are deeply trusted by customers.

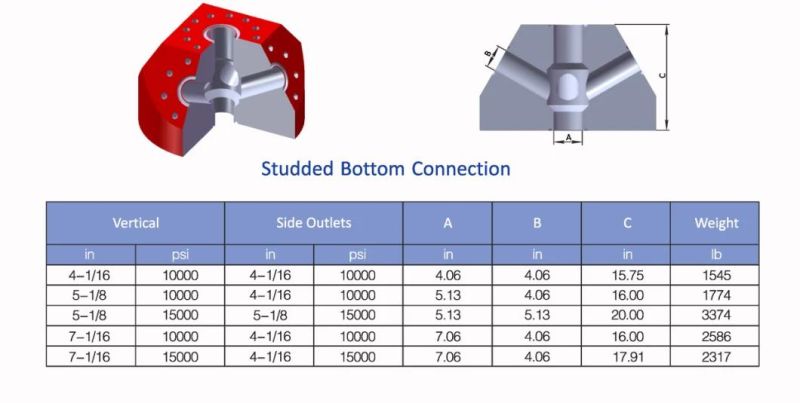

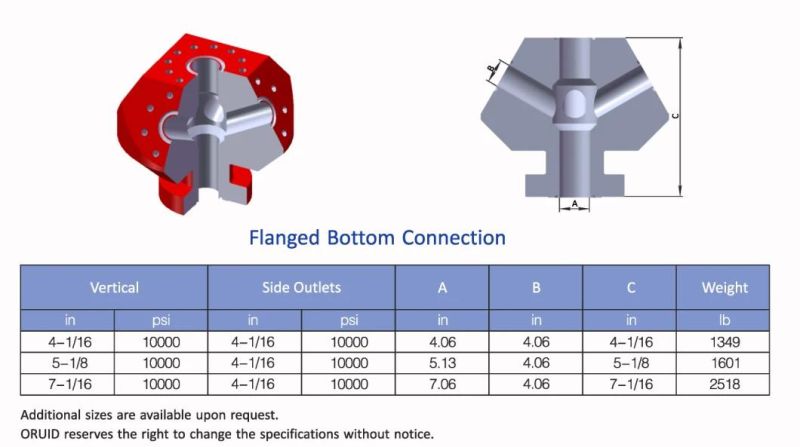

Goat Head Frac Adapter is a mixing block used on frac tree and frac stack during fracturing work for multiple fluids in oilfield applications. It is available in sizes from 4-1/16" through 7-1/16", working pressure up to 15,000psi, frac configuration of 3 through 6 outlets, flanged or studded bottom connection option.
Goat Head Frac Adapter
Goat Head Frac Adapter
