• Specification：installation mold dimension: 450-1100mm
• Transport Package：Naked
• Certification：CE, ISO 9001:2008
• Casting Surface Quality Level：1
• Tolerance Grade：5
• Pressure Chamber Structure：Holding Furnace
• Model NO.：J455-L
• Trademark：BQIAO
• Origin：China
• HS Code：8454309000
• Production Capacity：150 Sets Per Year

Basic Info.

Model NO. J455-L Pressure Chamber Structure Holding Furnace Tolerance Grade 5 Casting Surface Quality Level 1 Certification CE, ISO 9001:2008 Transport Package Naked Specification installation mold dimension: 450-1100mm Trademark BQIAO Origin China HS Code 8454309000 Production Capacity 150 Sets Per Year

Product Description

Product details:
Application:Motor housing,compressor housing,high pressure switch
Material:Cast aluminum alloy
Holding furnace:Graphite crucible holding furnace
Holding furnace capacity:500 -1000 kg
Static template dimension:2000-2700*1400-1800mm
Electric control system:Siemens PLC and touch screen control
Hydraulic system:Servo hydraulic system or Variable frequency hydraulic system
Cooling system:10-24 routes
Machine height:5400-7200 mm
Machine weight:20-30 tons

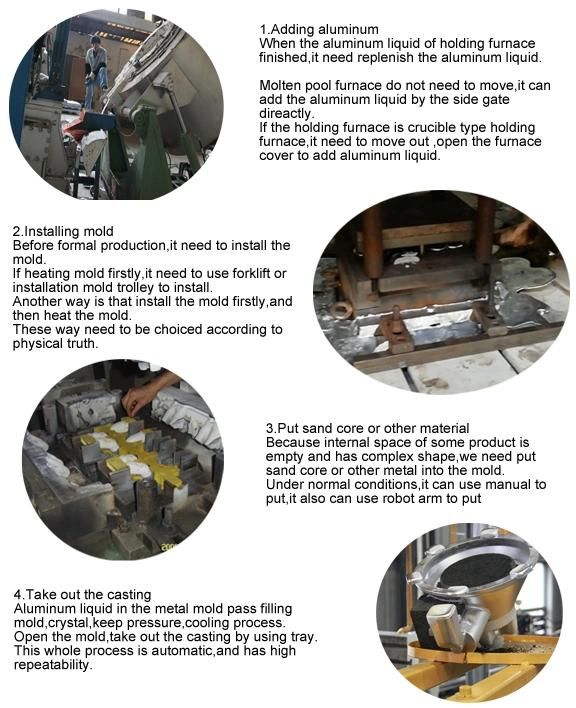

Main produce process:




Low pressure casting dvantages:

1.Higher mechanical property,and it is 10% higher than gravity casting.

2.Casting surface smoothness is better.

3.Can put sand core or other metal material into the mold

4.Have no riser.Pouring gate is small,10-20% of total weight.But gravity casting is 40-60% of total weight.

5.Easy to achieve automation,the repeatability of product is good,low labour intensity.

6.Low defective index,can up to over 95% percent of pass

7.Low investment cost,not limited by the size of the product.



Our advantages:

1.Different configuration is optional according to customer output,product size,customer investment intention.Make the only and cost-effective configuration for customer.

2.Over 10 years industry experience.

3.Professional team to design manufacturing technique according required mechanical property.

4.High percent of pass,high efficiency,low energy consumption

5.Making feasibility analysis including machines cost,operation cost,construction cost.

6.Quick delivery time to help customer create profit.




Company Information

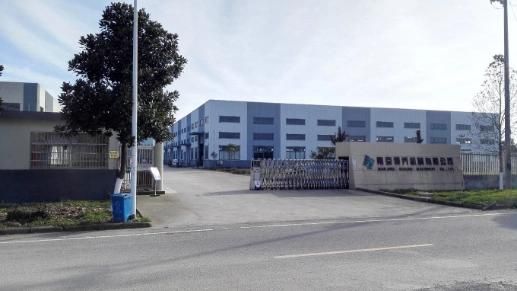

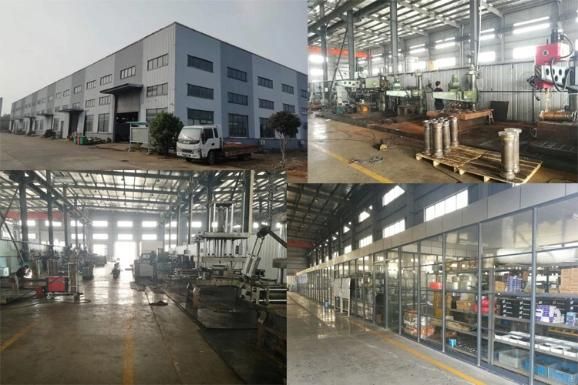

Company Photos:



FAQ

Q:Are you manufacturer or trade company?

 A:We are manufacturer

Q.What kind of products can be made with your machine?

 A:Theoretically,our machine can produce the all aluminum casting with thickness over 4mm.But it is better to ensure after seeing drawings or samples.

Q:How to ensure that we can produce qualified products by your machine?

 A:The solution is that firstly we check your product drawing or samples.If the product is ok,you pay 50% of mold price,we make mold for you.When the mold is made out,we try the mold and get the new samples.If the samples is qualified,you buy our machine.If no,we pay back  you the all money.

Q:What is your delivery time?

 A:Commonly,we deliver within 60 days.

Q:Can i visit your factory?

 A:Sure,welcome you.


Our address:Nanjing city,Jiangsu Province,China.

Nearest airport:Nanjing LuKou International Airport

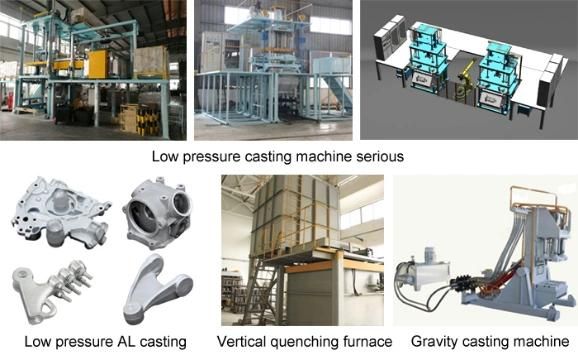

Other machines you may be interested in:
