• Pressure Chamber Structure：Vertical
• Tolerance Grade：4
• Casting Surface Quality Level：1
• Certification：CE, ISO 9001:2000
• Inner Diameter：4-10mm
• Range：Feed Machinery, Bimasss Machinery
• Pattern：Honey-Comb, Teeth
• Customized：for Cpm, Buhler, Andiritz, Muyang, Zhengchang Pel
• Transport Package：Iron Case
• Specification：500KG
• Trademark：FDSP
• Origin：Jiangsu China
• HS Code：8436990000
• Production Capacity：800-100h,400-500h

Basic Info.

Pressure Chamber Structure Vertical Tolerance Grade 4 Casting Surface Quality Level 1 Certification CE, ISO 9001:2000 Inner Diameter 4-10mm Range Feed Machinery, Bimasss Machinery Pattern Honey-Comb, Teeth Customized for Cpm, Buhler, Andiritz, Muyang, Zhengchang Pel Transport Package Iron Case Specification 500KG Trademark FDSP Origin Jiangsu China HS Code 8436990000 Production Capacity 800-100h/400-500h

Product Description

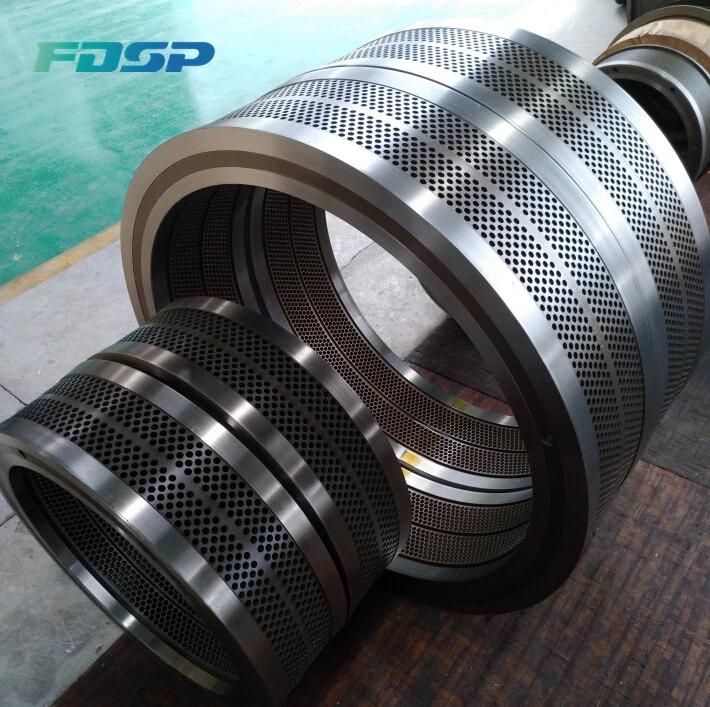

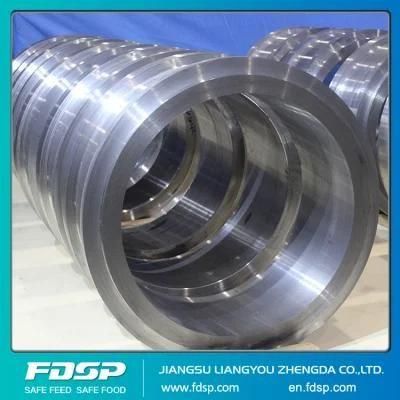

Biomass Pellet Machine With Ring Die Pellet Press Ring Die
---Ring die for Pellet Mill/Pellet Press/Pelletizer

---Ring die for wood pellet machine,bio-mass pellet machine

Other spare parts for pellet mill


Good tensile strength, Good abrasion resistance, Good corrosion resistance, Good impact resistance, Good heat resistance, Good fatigue resistance.
Application:
Ring die for pellet machine in poultry feed,livestock feed,aqua feed, bio-mass pellet machine,etc.
We could offer you OEM high chrome steel ring die,Such as for CPM, Buhler, Andiritz, Muyang, Zhengchang pellet mill with different specification.



High efficient stainless steel ring die,pellet die mill die for sale   ---Ring die for Pellet Mill/Pellet Press/Pelletizer     ---Ring die for wood pellet machine,bio-mass pellet machine   Other spare parts for pellet mill     Good tensile strength, Good abrasion resistance, Good corrosion resistance, Good impact resistance, Good heat resistance, Good fatigue resistance. Application: Ring die for pellet machine in poultry feed,livestock feed,aqua feed, bio-mass pellet machine,etc. We could offer you OEM high chrome steel ring die,Such as for CPM, Buhler, Andiritz, Muyang, Zhengchang pellet mill with different specification.       High efficient stainless steel ring die,pellet die mill die for sale   ---Ring die for Pellet Mill/Pellet Press/Pelletizer     ---Ring die for wood pellet machine,bio-mass pellet machine   Other spare parts for pellet mill     Good tensile strength, Good abrasion resistance, Good corrosion resistance, Good impact resistance, Good heat resistance, Good fatigue resistance. Application: Ring die for pellet machine in poultry feed,livestock feed,aqua feed, bio-mass pellet machine,etc. We could offer you OEM high chrome steel ring die,Such as for CPM, Buhler, Andiritz, Muyang, Zhengchang pellet mill with different specification.       Type for feed pellet mill, bio-mass pellet mill Pattern honey-comb, teeth,etc widely application  CPM, Buhler, Andiritz, Muyang, Zhengchang pellet mill,etc Feature of our ring die: 1Made of imported high-carbon high-chromium stainless billet steel,optimization carbon,thus enhancing wearing and corrosion resistance and  hardness. 2 It can deal with all kinds of die hole over &1.2mm (&1.2mm included) and compression ratio. 3Ring die can be produced up to 300mm-1500mm in diameter  and 500mm in height. 4In ring die processing, full automatic control, one-time molding for die hole, high smoothness.  strong tensile strength,good wear resistance, good corrosion resistance,high wear resistance,long life   Advantage of our ring die: 1.Material refining technology,fewer impurities,high purity,largely reducing harmful elements content(such as  elements S,P ), thus comprehensive mechanical performance of material is raised. 2.Through roll forging, material is processed and strengthened and material fibre is complete and uniform,  which increases integrated mechanical performance of material. 3.FDSP Company has the world advanced forging equipment and technology,electronic data processing  systems and perfect quality control system. 4.Ring die blank,generally chromiumalloy roll forgings, some factories use 45 ordinary carbon steel. 5.Hardness of blank must be controlled, ranging from HB170 to HB220.If the hardness is too high,the drill is  easy to break and happens with die hole when drilling. If hardness is too low, the surface finish of die hole  will be not good. 6.In order to control blank inner material uniformity, every blank must be carried out with fault detection,  which can avoid defects such as flaw, pore-free,crackle and inclusions etc. 7.After machining and heat treatment process, hardness of ring die can be up to HRC 52-58(inner diameter less than 350mm),HRC50-56(inner diameter more than 350mm),more wearable and  anti-corrosion. 8.In order to control hardness uniformity of ring die after heat treatment, we choose more than three points  in each part of trisection of peripheral direction to test hardness and take average.The difference of  hardness value between each part should not be higher than HRC4. 9.According to the principle of metal material science combined with gas quenching and C,Cr,Mn,Ni,V  elements content is optimized, forming the standard of ring die.     Relation between die hole structure and pelleting: Straight hole and release stepped hole is suitable for compound feed processing External conical hole suitable for the processing of high-fibre feed like de-fat chaff Internal conical hole and compression-type stepped hole applicable for the process of herbage powder feed of light proportion We should try to avoid using release stepped hole(pressure-relief vent) Because discharing is not easy for holes in the rows of the edge of ring die, pressure-relief vent is designed there.   Production process: 1.Precision Machining: CNC machining center CNC machining center assure high dimensional accuracy,geometric tolerance and surface roughness.     2.Hole Machining Germany gun drill     The quality and service life of die is guaranteed.   3.Vacuum Hardening         America vacuum furnace: 1.High vacuum degree, no oxidation reaction in ring die surface, ensuring original smoothness of die hole  inner surface. 2.High vacuum degree,twisting bottom and convection heating minimize ring die deformation. 3.CNC controls process program, ensuring ring die quality stability. 4.With rationally adjusting heat treatment, heat preservation and cooling rate and time, microstructure of  ring die can achieve its most suitable working conditions. 5.High cooling speed ensures more even distribution of carbide and hardenability and uniformity of ring die  is guaranteed, contributing to balance using of ring die.

FAQ
1.Q: How can I trust on your quality?
Answer:
1). All of the machine be tested successfully in Liangyou workshop before shipment.
2). The working lifespan of Liangyou machines is at least 20 working years.

2. Q: Does your company provide Engineers Abroad Service?
Answer: Sure, we provide it. And we can provide free training for on-site workers.

3. Q: How to train our staff about operation and maintenance?
Answer : We will provide every detailed technical instructive, pictures, videos to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.

4. Q:What shipment terms you offer?
Answer: We can offer FOB, CIF, CFR etc based on your request.

5. Q:What payment terms you take?
Answer: T/T, LC ,D/A,D/P etc.
