• Model NO.：OEM
• Surface Roughness：Ra3.2
• Machining Tolerance：+,-0.15mm
• Standard：BS
• Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
• Name：316L Stainles Steel Casting Investment Casting
• Technology：Steel Precision Casting Investment Casting Lost Wa
• Size：OEM
• Weight：0.1-50 Kg
• Color：Nature or Customize
• Delivery Time：15-30 Days
• Casting Part Lost Wax 1：Best Products
• Casting Part Lost Wax 2：Best Price
• Casting Part Lost Wax 3：Good Quality
• Casting Part Lost Wax 4：OEM and ODM 100%
• Transport Package：Wooden Crate or by Customer′s Reuirment
• Specification：From 0.010kg or OEM lost wax part
• Trademark：XH
• Origin：Qingdao
• HS Code：8460190000
• Production Capacity：1000tons Per Month

Item Name

 General Products

 Application/Service Area

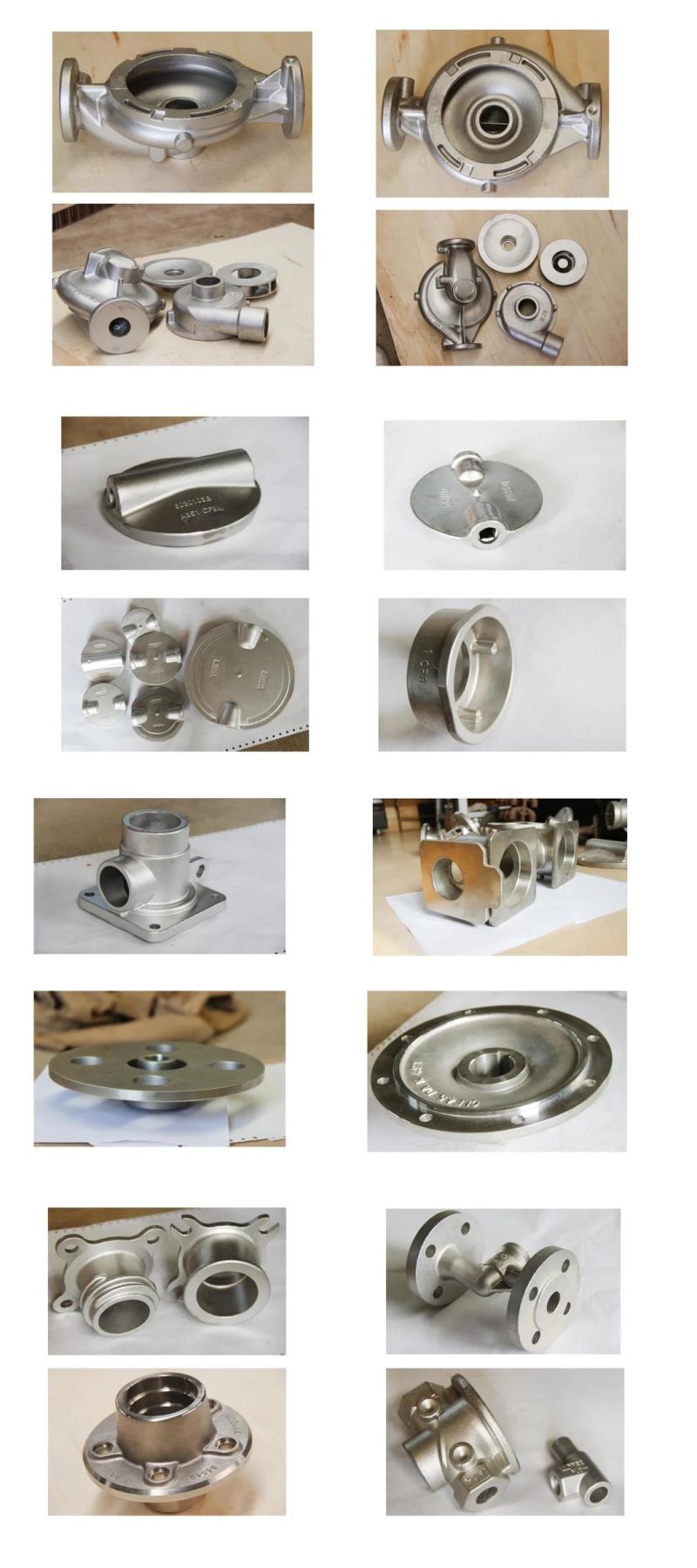

Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, Agriculture machine metal Parts, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc.

 Main blank Process for Steel  Casting

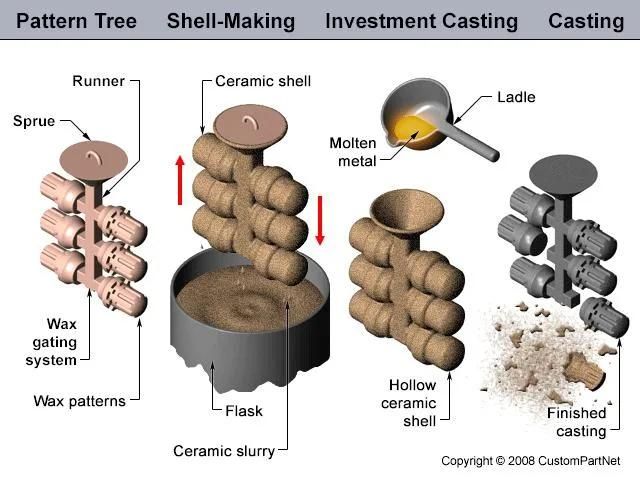

Investment  casting (wax mold made by middle temperature wax) /Precision  casting ;

Lost Wax Casting (wax mold made by low temperature wax)/ Precision  casting

 Blanks Tolerance -Casting  Tolerance

CT7-8 for Lost wax Casting Process

CT4-6 for Investment casting Process

 Applicable Material

Carbon steel, Low Carbon steel, middle carbon steel,WCB, WCA, WCC,  ISO 340-550,

Alloy Carbon steel: G25CrMo4, Heat Resistant Steel,

Stainless Steel:  CF8,  CF8M, . G-X6CrNiMo1810, G-X7CrNiNb1189, SUS 304, 304L, 316, 316L.

OR According to customer requirement

Copper alloy

Brass: HPb59-1, CuZn39Pb1/2/3, CuZn40, C36000, C37710, C67400, etc.

Aluminum Bronze: QAl11-6-6, CuAl10Fe2/3, CuAl10Ni5Fe5, C65500, C95600, C87500

Sn Bronze: CuPb5Sn5Zn5, C83600, C84400, C86500. etc.

Magnesium

 Casting Blank Size  /Dimensions

2 mm-600mm / 0.08inch-24inch  according to customer requirement

 Casting Blank Weight

Range from 0.01kg-85kg

 Applicable Machining Process

CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and  etc.

 Machining Tolerance

From 0.005mm-0.01mm-0.1mm

 Machined Surface Quality

Ra 0.8-Ra3.2 according to customer requirement

 Applicable Heat Treatment

Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching

 Applicable Finish Surface  Treatment

Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting,

 MOQ

For stainless steel casting : 200pcs

For machining: 50pcs

 Lead Time

45days from the receipt date of deposit for stainless steel casting
