Casting Forging

Automatic One Die Two Blows Screw Cold Heading Machine Screw Heading Machine

Xuchang Hongshuo Machinery Co., Ltd.
  • Molding Technics:Pressure Casting
  • Molding Style:Forging

Base Info

  • Transport Package:Wooden Cases or Sea Worthy
  • Certification:CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Material:Steel
  • Machining:Machining Center
  • Application:Machinery Parts
  • Model NO.:M3,M4,M5,M6,M8,M10,M12
  • Trademark:hongshuo
  • Origin:China
  • Production Capacity:200PCS,Month

Description

Basic Info.

Model NO. M3/M4/M5/M6/M8/M10/M12 Application Machinery Parts Machining Machining Center Material Steel Certification CE, RoHS, ISO 9001:2000, ISO 9001:2008 Transport Package Wooden Cases or Sea Worthy Trademark hongshuo Origin China Production Capacity 200PCS/Month

Product Description

Product Description
This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.

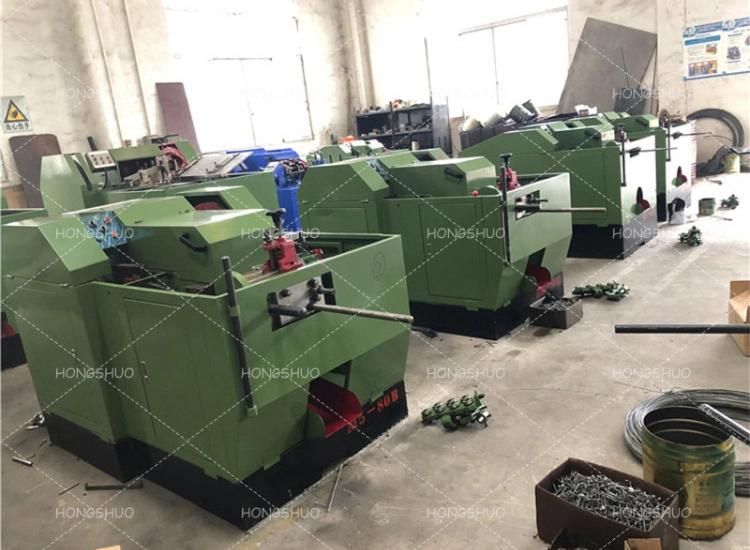

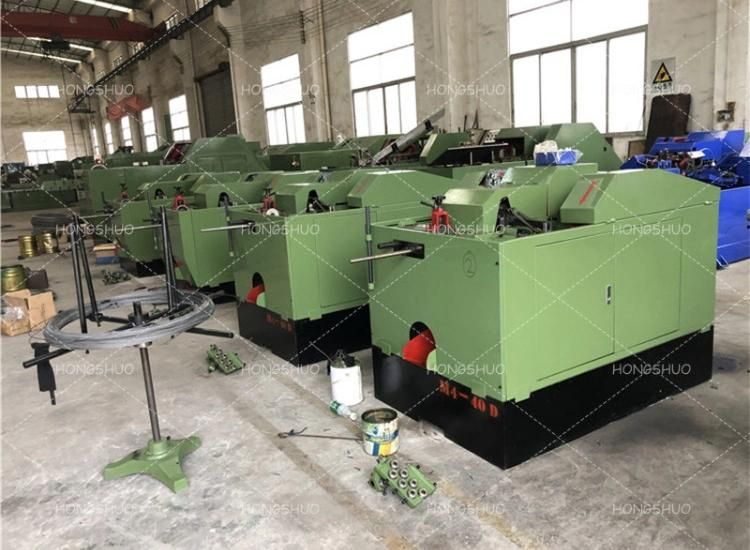

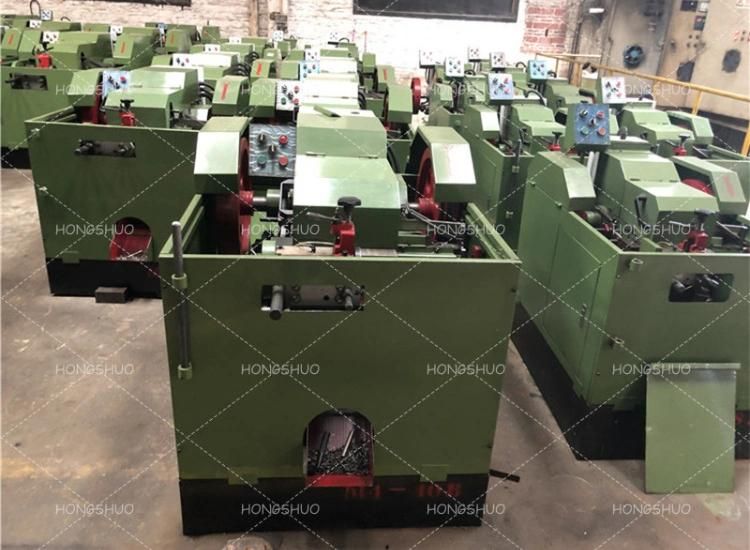

Product Photos
Automatic One Die Two Blows Screw Cold Heading Machine Screw Heading MachineAutomatic One Die Two Blows Screw Cold Heading Machine Screw Heading MachineAutomatic One Die Two Blows Screw Cold Heading Machine Screw Heading Machine
Main technical Parameters
ModelMax. Screw Dia (mm)Max. Screw length (mm)Capacity
(pcs/min)
Motor
(kw)
Weight
(Ton)
Overall size (m)
M3-18A/B318160-1800.75/0.370.61.3*0.75*0.9
M3-28A/B328160-1800.75/0.370.61.3*0.75*0.9
M4-28B428120-1601.5/0.370.971.5*0.9*0.9
M4-28D4.528180-2001.5/0.371.21.6*1*1.2
M4-40B440120-1501.5/0.370.971.5*0.9*1
M4-40D4.540180-2001.5/0.371.21.6*1.1*1.1
M5-40B640120-1502.2/0.371.81.8*1.1*1.1
M5-60B660110-1402.2/0.371.81.8*1.1*1.1
M5-80B68080-1002.2/0.371.92*1.1*1.2
M5-120B612050-703.6/0.372.32.8*1.3*1.3
M6-60B86080-1104/0.372.82.3*1.3*1.3
M6-100B810060-904/0.372.72.3*1.3*1.3
M6-120B812060-704/0.3732.4*1.3*1.4
M6-170B817040-704/0.373.73*1.3*1.5
M6-200B820040-554/0.373.73*1.3*1.5
M8-120B1012050-905.5/0.374.63.4*1.5*1.5
M8-130B1013050-905.5/0.374.63.4*1.51.5
M8-150C1015040-505.5/0.3753.5*1.7*1.7
M8-200B1020025-607.5/0.3763.8*1.6*1.7
M10-120B1212040-7011/0.7573.3*1.71.7
M10-170C1217040-6011/0.757.54.2*1.81.7
M10-220C1222035-6011/0.757.54.2*1.81.7
M10-250C1225030-4511/0.758.55*1.8*1.7
M10-300C1230025-3515/0.7595*1.9*2.1
M10-360C1236020-3015/0.75126.7*2*2.6
M12-150C1415040-5015/0.75103.9*1.9*1.8
M12-250C1425035-5015/0.75115.3*2.21.9
M14-250C1625035-4511/0.75115*2.2*2.15

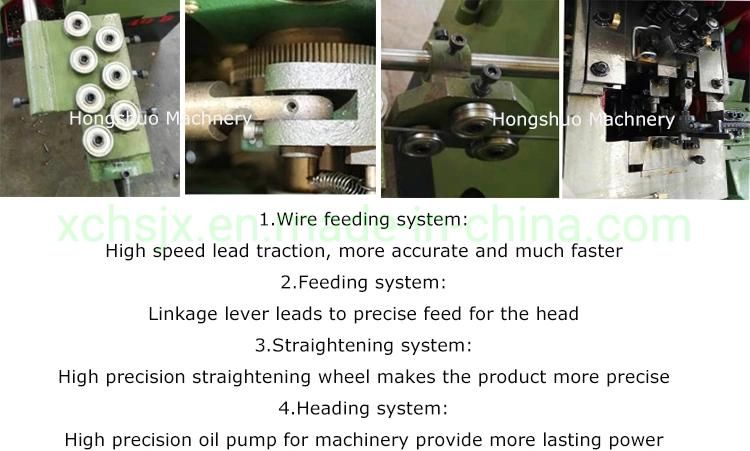

Detail Photos
Automatic One Die Two Blows Screw Cold Heading Machine Screw Heading Machine

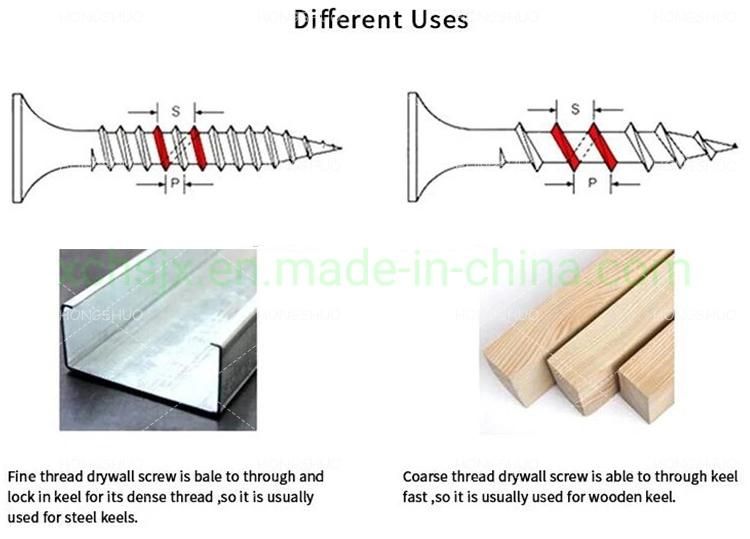

Application
Automatic One Die Two Blows Screw Cold Heading Machine Screw Heading Machine
Sales Market
Automatic One Die Two Blows Screw Cold Heading Machine Screw Heading Machine
Shipping Photo
Automatic One Die Two Blows Screw Cold Heading Machine Screw Heading Machine
FAQ

--1--Q: Are you trading company or manufacturer ?
A: We are manufacturer since 1990. As many manufacturers, we first do business in domestic trade, and then do exporting business right now. You're welcome to our factory to inspect every production details and accept free training for machines.
--2--Q:  How can i find suitable screw making machine ?
A: Please tell us the two factors, SIZE (diameter and length) & TYPE of screw you want to make, we will customize expert solution of screw making line for you.
--3--Q:  Can i use one machine to make screws?
A: No, at least two machines. The cold heading machine to make the screw blank, the thread rolling machine to thread.
--4--Q:  Can i make different size and type of screws by one machine?
A: Yes, it just need to change the mould.
--5--Q:  What's the material waste during the production for screws?
A:   The wastage is less than 3%, one ton wire can make about 970kg nails.
--6--Q: What's the guarantee of the machine?
A: We will provide 2 years warranty. 100% responsible within 24hrs timely response.
--7--Q: How long is your delivery time?
A: Generally 30 days if in stock for screw making machines.


Certifications
Automatic One Die Two Blows Screw Cold Heading Machine Screw Heading Machine
