• Trademark：Qiangxin
• Specification：50KG~30T
• Transport Package：Plywood Pallet
• Certification：CE, ISO 9001:2000, ISO 9001:2008
• Standard：ASME
• Surface Roughness：Ra3.2
• Surface Treatment：Sand Blast
• Model NO.：OEM
• Origin：Xinxiang City, Henan Province, China
• HS Code：7616999000
• Production Capacity：200ton-1000ton Per Month

Basic Info.

Model NO. OEM Surface Treatment Sand Blast Surface Roughness Ra3.2 Standard ASME Certification CE, ISO 9001:2000, ISO 9001:2008 Transport Package Plywood Pallet Specification 50KG~30T Trademark Qiangxin Origin Xinxiang City, Henan Province, China HS Code 7616999000 Production Capacity 200ton-1000ton Per Month

Product Description

Customized Advance Design Heavy Large Size Casting Parts in Cast Iron/Stainless Steel


Product Name	Large Size Casting Parts
Manufacturing technique	Lost foam casting, Resin boned sand casting, wooden pattern casting
Raw material	Grey Iron, Ductile iron
Testing equipment	Casting sand hardness tester ,Spectrum analyzer ,Carbon& sulfur analyzer ,Carbon &silicon analyzer, Tension tester, Rapid temperature measuring probe, Hardness tester, Metallographic analysis microscope;
Other Equipment	Gantry Machining Center, OKUMA 4 axis &5 axis, Inductothem Electric furnace 10 Ton , Sand blasting machine, Resin boned machine,
Application	Milling machine ,vehicle mould, steam turbine, mining machine, construction machine, Wind generator…
Advantages	complete testing equipment and testing procedure to ensure casting elements content fulfill requirements ; Testing proceeded in cast sand, raw material, molten iron , finished product
Customers	Doosan ,GM, Jeneng steam turbine
Undertake business	CNC machine base ,column, work plate, spindle box, sliding rail; Steam turbine parts, mining machine parts, construction machine base … Casting  products weight scope from 30kg to 15Tons
Needed information to quote	Material, Drawing, Heat treatment, work allowance, Need Machining or not.

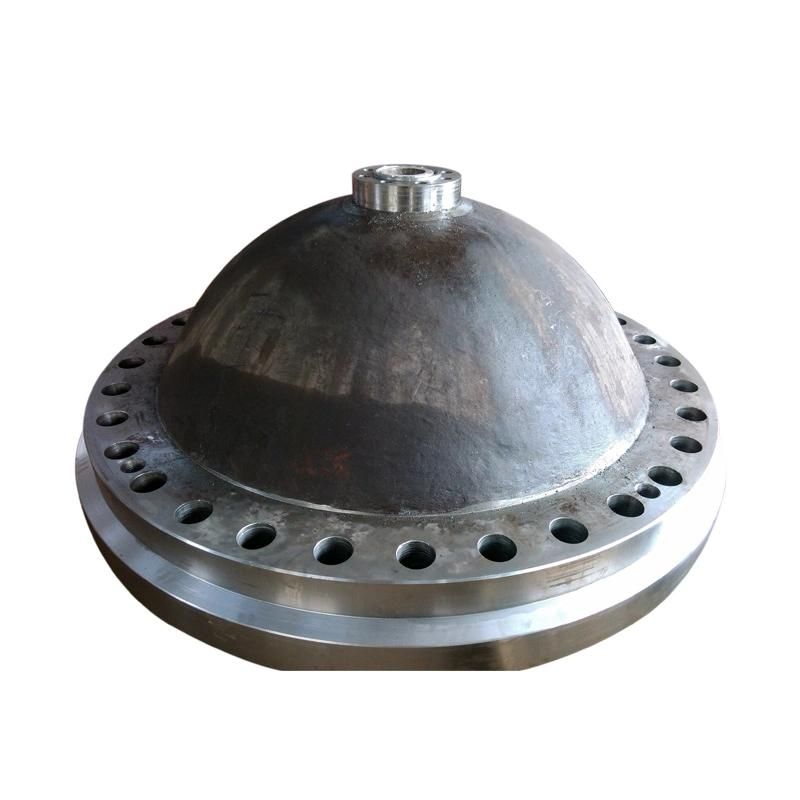

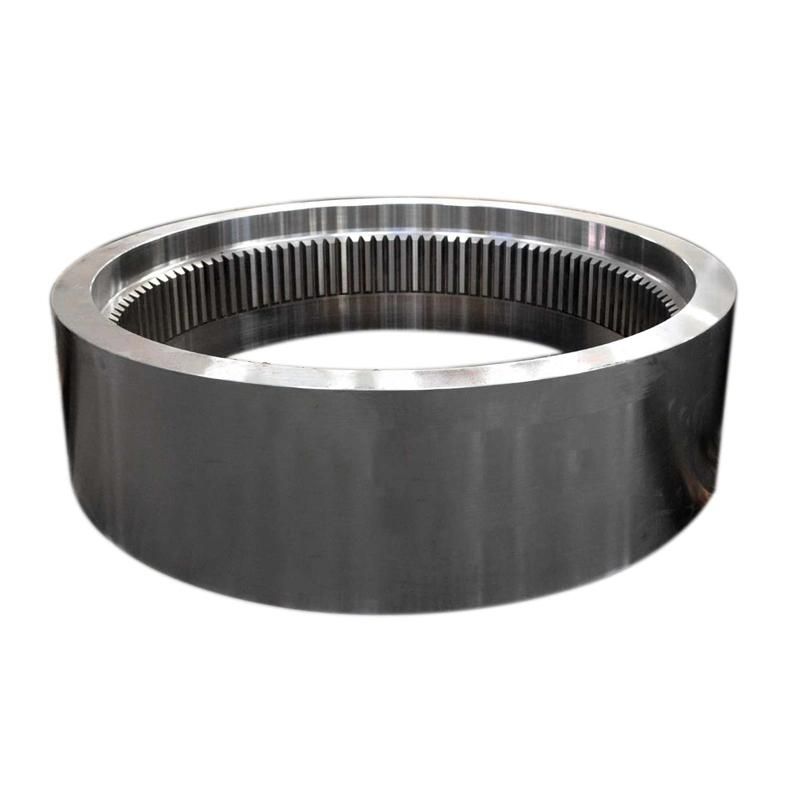

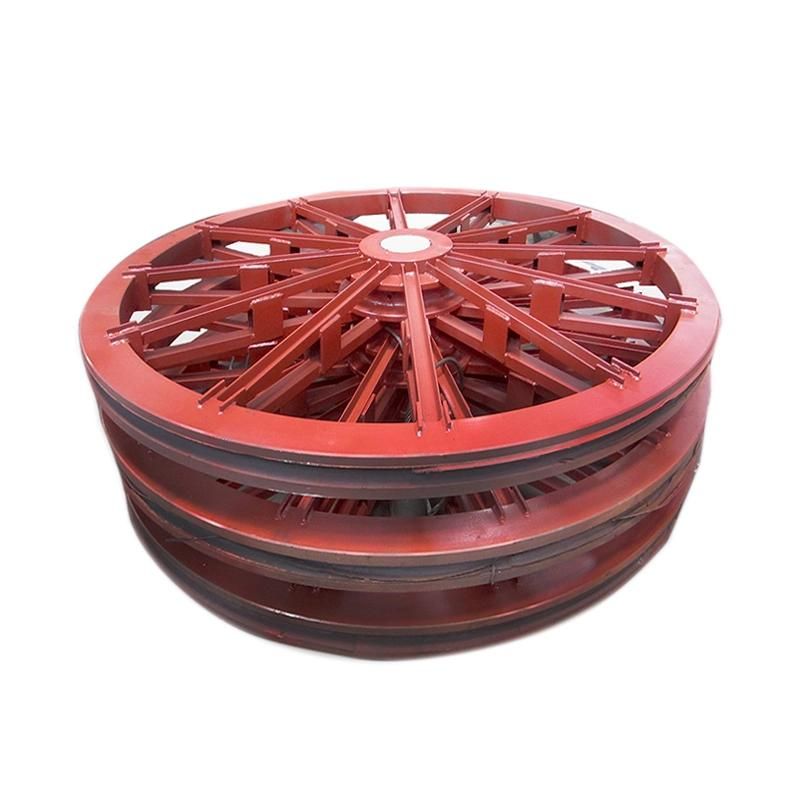

Product Show

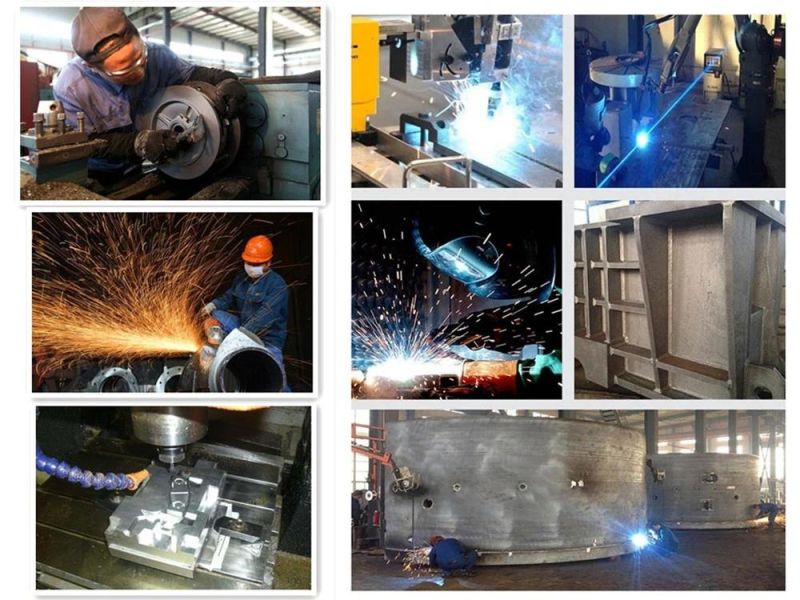

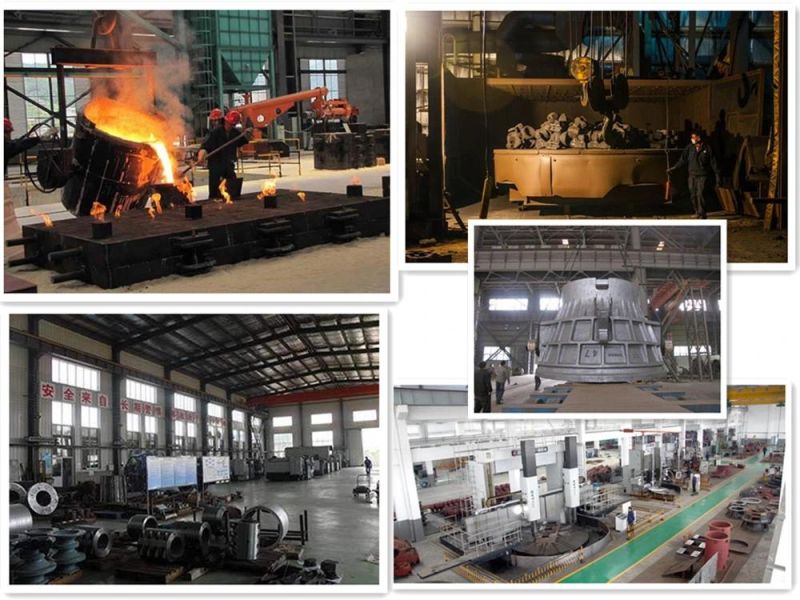

Factory

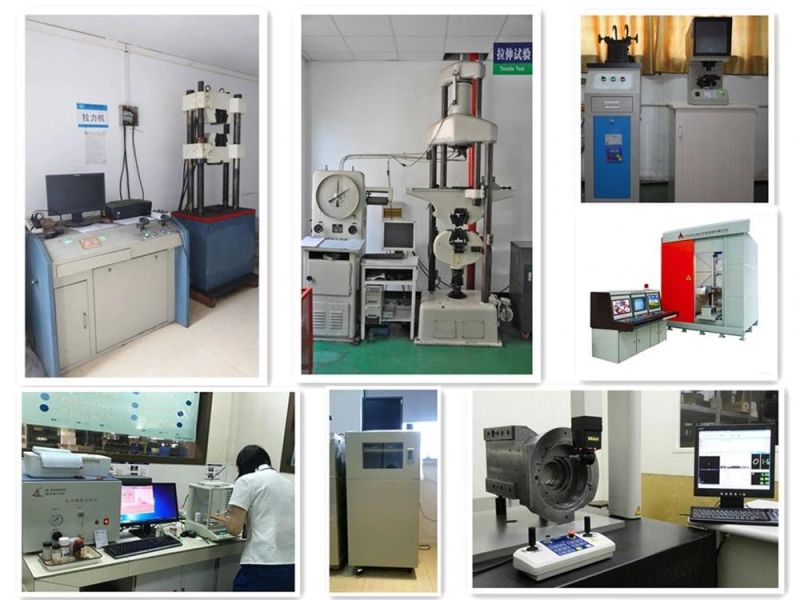

Inspection Tools


FAQ

1.How can I get the quotation?
Please give us your drawing,quantity,weight and material of the product.
2.If you don't have the drawing,can you make drawing for me? Yes,we are able to make the drawing of your sample duplicate the sample.
3.When can I get the sample and your main order time? Sample time: 35-40 days after start to make mold. Order time: 35-40 days, the accurate time depends on product.
4.What is your payment method? Tooling:100% T/T advanced Order time:50% deposit,50%to be paid before shipment.
5.Which kind of file format you can read? PDF, IGS, DWG, STEP, MAX
 6.What is your surface treatment? Including: powder coating, sand blasting, painting, polishing, acid pickling, anodizing, enamel, zinc plating, hot-dip galvanizing, electrophoresis, chrome plating.
7.What is your way of packing? Normally we pack goods according to customers' requirements.
