• Model NO.：as per drawing
• Surface Roughness：Ra12.5
• Machining Tolerance：+,-0.10mm
• Standard：ASTM
• Certification：RoHS, ISO 9001:2000
• Model No.：as Costomer Required
• Certificate：ISO 9001
• Transport Package：Plywood Packing
• Specification：According to The Customer′ s Requirement.
• Trademark：OEM
• Origin：China
• HS Code：86092100
• Production Capacity：500000PCS,Year

Basic Info.

Model NO. as per drawing Surface Roughness Ra12.5 Machining Tolerance +/-0.10mm Standard ASTM Certification RoHS, ISO 9001:2000 Model No. as Costomer Required Certificate ISO 9001 Transport Package Plywood Packing Specification According to The Customer′ s Requirement. Trademark OEM Origin China HS Code 86092100 Production Capacity 500000PCS/Year

Product Description

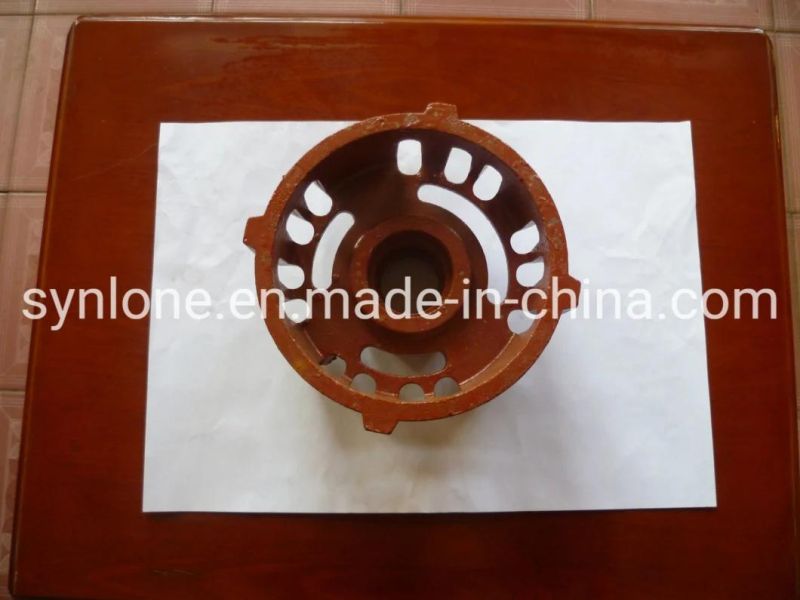

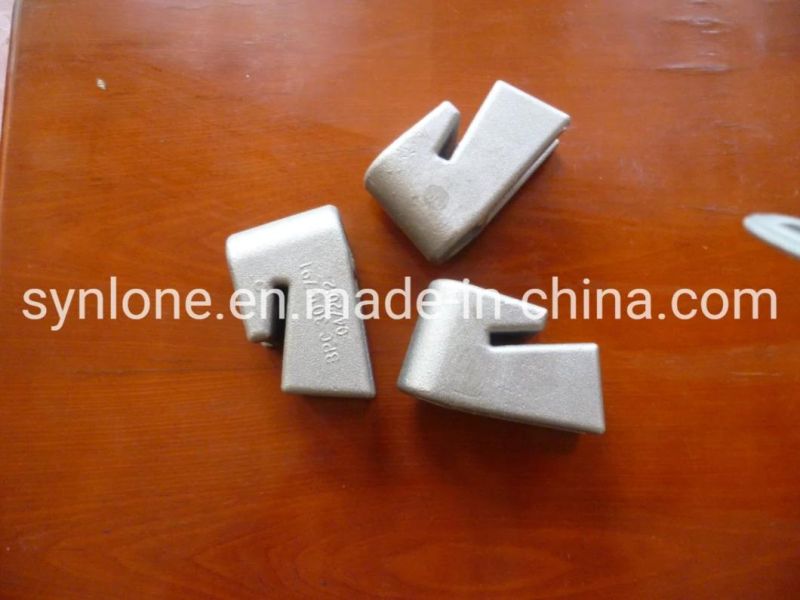

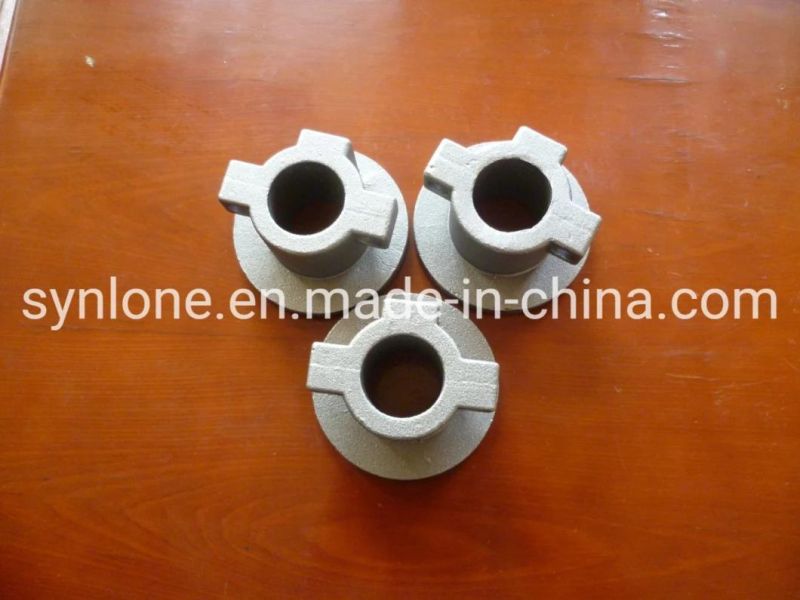

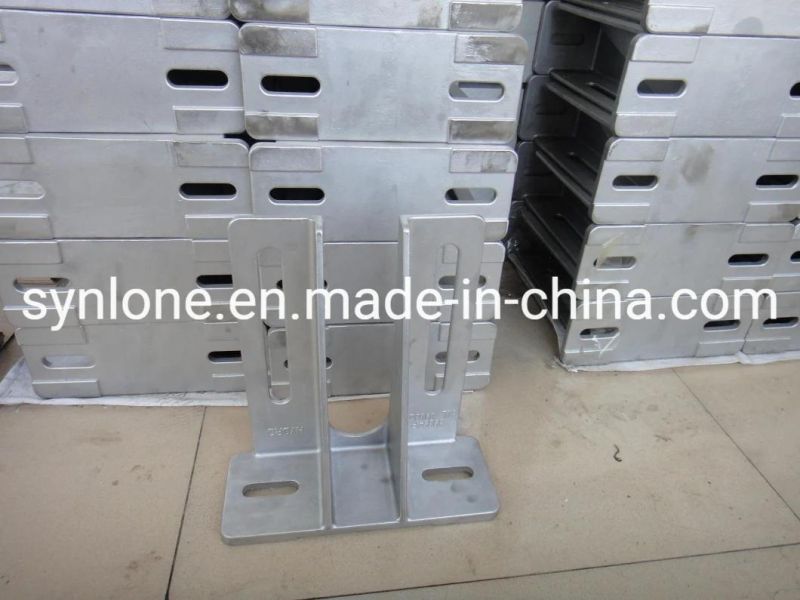

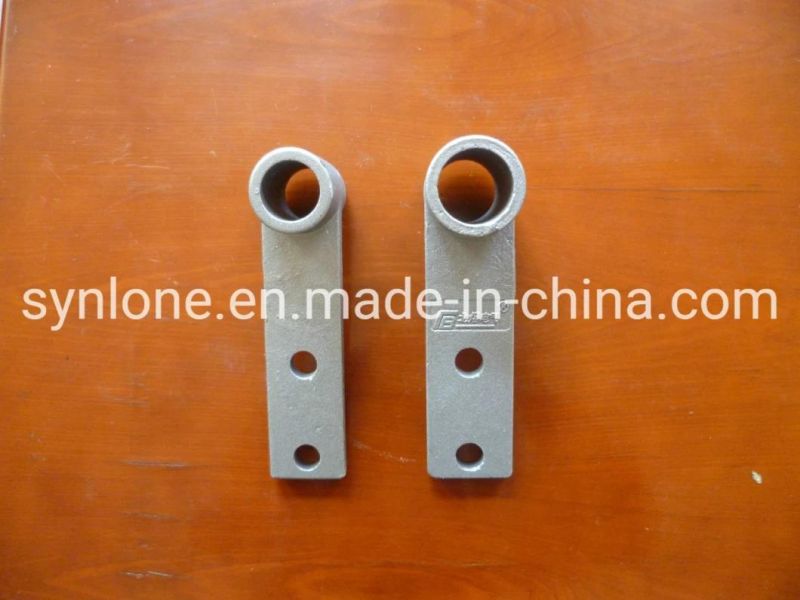

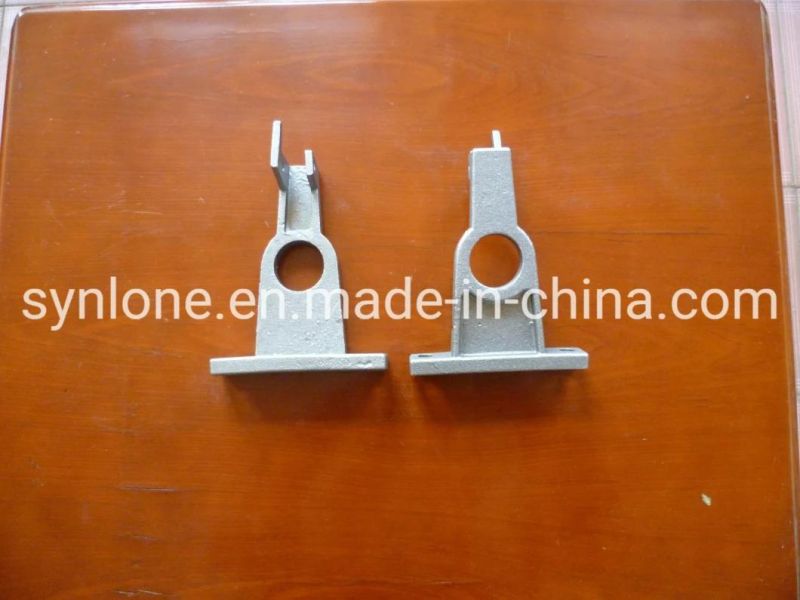

China Supplier Carbon Steel Alloy Steel Stainless Steel Gray Iron Ductile Iron Investment Casting
Specification:
1. Material: Stainless steel, carbon steel, alloy steel, gray iron, aluminum, bronze, brass
2. Standard: JIS, ASTM
3. Weight: 0.005-100kg
4. Process: Investment casting, sand casting
5. Manufacturing equipment: Middle -frequency electrical furnace, wax injection press, peening machine, shot-blasting machine, heat treatment furance, argon arc welder, plasma cutting machine, running balance indicating machine, CNC lathes, common lathes, drilling Machines, milling machines, radial drilling machines, dehumidifier and so on.
6. Finishing: Sand Blasting, Polishing, Plating, Acid Treatment, Anodizing, Painting and PVC Powder
Coating
7. OEM service.
8. Packing: Wooden cases.
9. Application: Industrial parts, Machinery parts, hardware, construction parts, valve/valve parts, train, craft, doorhandle, hinge, hydraulicpressure, construction, agricultural machinery
10. Small orders accepted.
11. Make machining service as your requirement or drawings
12. Professional service.
13. Surface treatment, polishing, machining, machining center, plating, Heat Treatment, ect.

OEM Sand Casting Hand wheel

Material: Ductile cast iron, grey cast iron
Sand casting CNC Machining
Pressure: PN10 PN16.
1. Material: Brass/ aluminum/ stainless steel/ carbon steel
2. Surface treatment: Nickel plating, silver plating and gold plating
3. Able to produce parts with external diameters between 2 and 100mm with tolerance of +/-0.02mm
4. Main processes: Groove, milling, grinding, drilling, treading, broaching and knurling
5. Equipment: CNC lathe, CNC milling machine, meter lathes, automatic lathing machines
6. Parts can be supplied according to drawings or samples
7. Minimum order quantity: Comply with customer's demand
8. OEM order is welcome
9. Competitive price, high quality, and quick delivery


description	Steel Casing Stainless Steel Casting Precision Casting
Material	Carbon steel, alloy steel, stainless steel, High Mn Steel, Ductile Iron, Gray Iron, High Cr Iron, Aluminum , brass Etc.
Material Brand :	Low Alloy Steels: 1020, 1045, 1050, 1095, 4130, 4140, 4150, 4340, 6150, 8620, 8650 Stainless Steel: 303, 304, 304L, 316, 316L, CF-8, CF-3, CF-8M, CF-3M, 330, 347, 20-CB3, Alloy 20, CN-7M, CF10-SMnN
Processes	Lost wax casting +L CNC machining
Software	Solid work, ProE, Auto CAD ( .stl / .igs /.stp /.dwg etc )
Casting dimension tolerance	CT7
Casting surface roughness	Ra 12.5um
Casting weight range	0.1-90kg
Size	Max linear size: 1200mm, Max diameter size: 600mm
Machining surface roughness	Ra0.8~6.3um
Max Machining Turning Diameter	830mm
Material standard	GB, ASTM, AISI, DIN, BS, JIS, NF, AS, AAR.......
Surface treatment	Sand Blasting, Painting, Hot galvanizing, Polishing, Mirror Polishing, Zinc plating, Phosphorylation, Anodizing, KTL (E-coating),   black oxide, Powder coating, Nickel plating.
Service available	OEM
Quality control	Material control, process control, production management control, final inspection control
Inspection Report	Spectrum analysis,hardness test,tensile strength test,impact test ,dimension inspection , Visual inspection,ect .
Application	Agricultural machinery, architecture, petroleum machinery, train & railway, automobile and truck, valve and pumps, electric material, engineering machinery, power equipment, Vessel, Convey Machinery, Excavator and so on.
