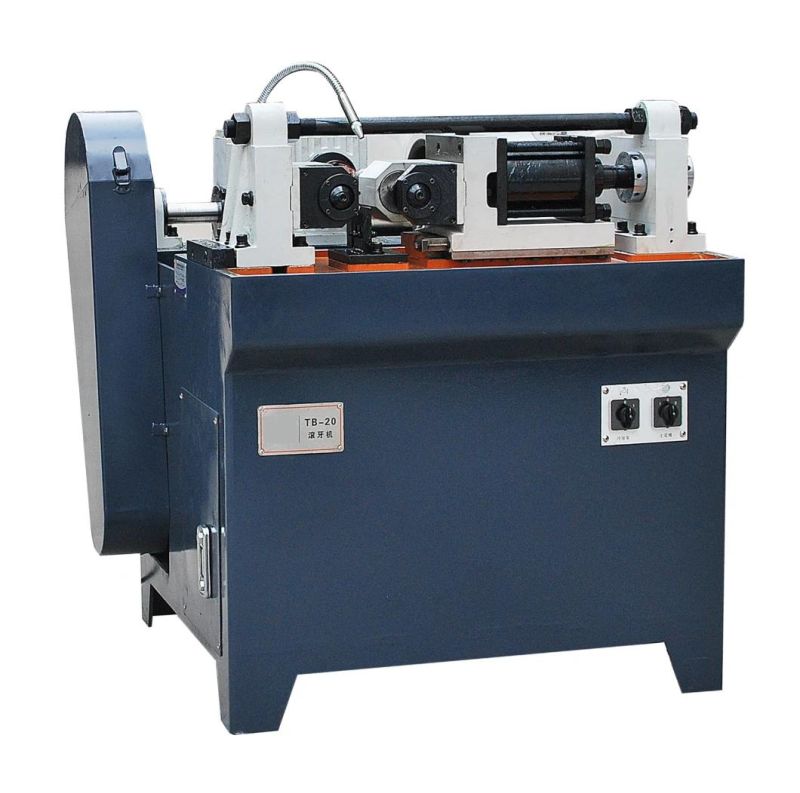

Roll Threading Machine for Bolt Threading
Hangzhou Suntech Machinery Co., Ltd.- Machining:Roll Threading Machine
- Application:Any Rod Parts
- Molding Technics:Cold Rolling
- Molding Style:Stamping
- Processing Object:Metal
- Material:Steel
Base Info
- Origin:China
- Trademark:suntechmach
- Transport Package:Plywood Case
- Certification:CE, ISO 9001:2000
- Surface Treatment:Zinc Plating
- Model NO.:TBS-20
- HS Code:8459700000
- Production Capacity:10PCS
Description
Basic Info.
Model NO. TBS-20 Surface Treatment Zinc Plating Certification CE, ISO 9001:2000 Transport Package Plywood Case Trademark suntechmach Origin China HS Code 8459700000 Production Capacity 10PCSProduct Description
SPECIFICATIONS FOR THREAD ROLLING MACHINE TBS-20Diameter for the threads rolled φ4-φ16/mm
Range of pitch rolled 0.4-2.0P
Length of thread rolled In feed or Thru feed
Spindle speed 16/25/40/63rpm (variable speed)
Outside diameter of rolling die φ100-φ118mm
Inside diameter of rolling die(keyway) φ50.5mm
Thickness of rolling die 50mm
Range of distance between the roller shaft 100-135mm
Output(pcs/min) 4-25(pcs/min)
Main power motor 3HP

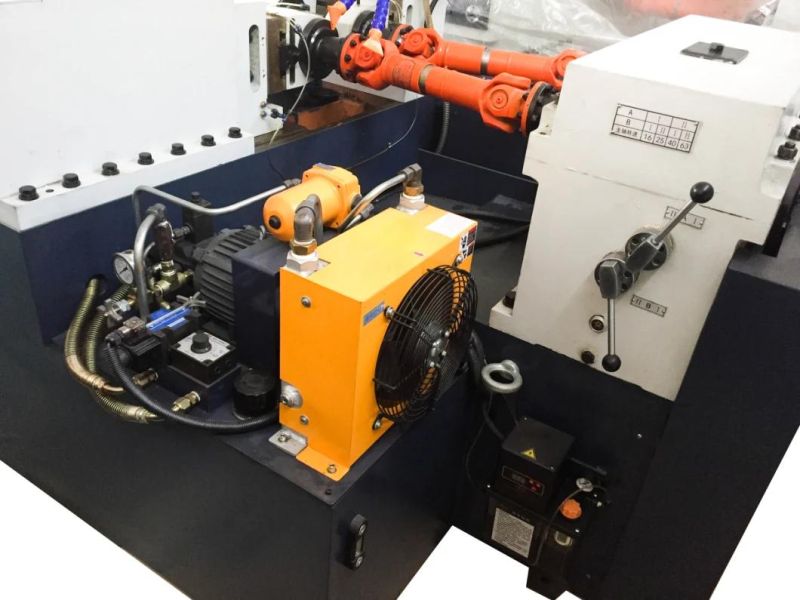

Hydraulic motor 2HP
Max rolling pressure 6T
Supply voltage 380V
Weight(reference) 600(KG)
Package Dimension(L*W*H) 1100*1100*1300
Dimension(L*W*H) 1000*1000*1200

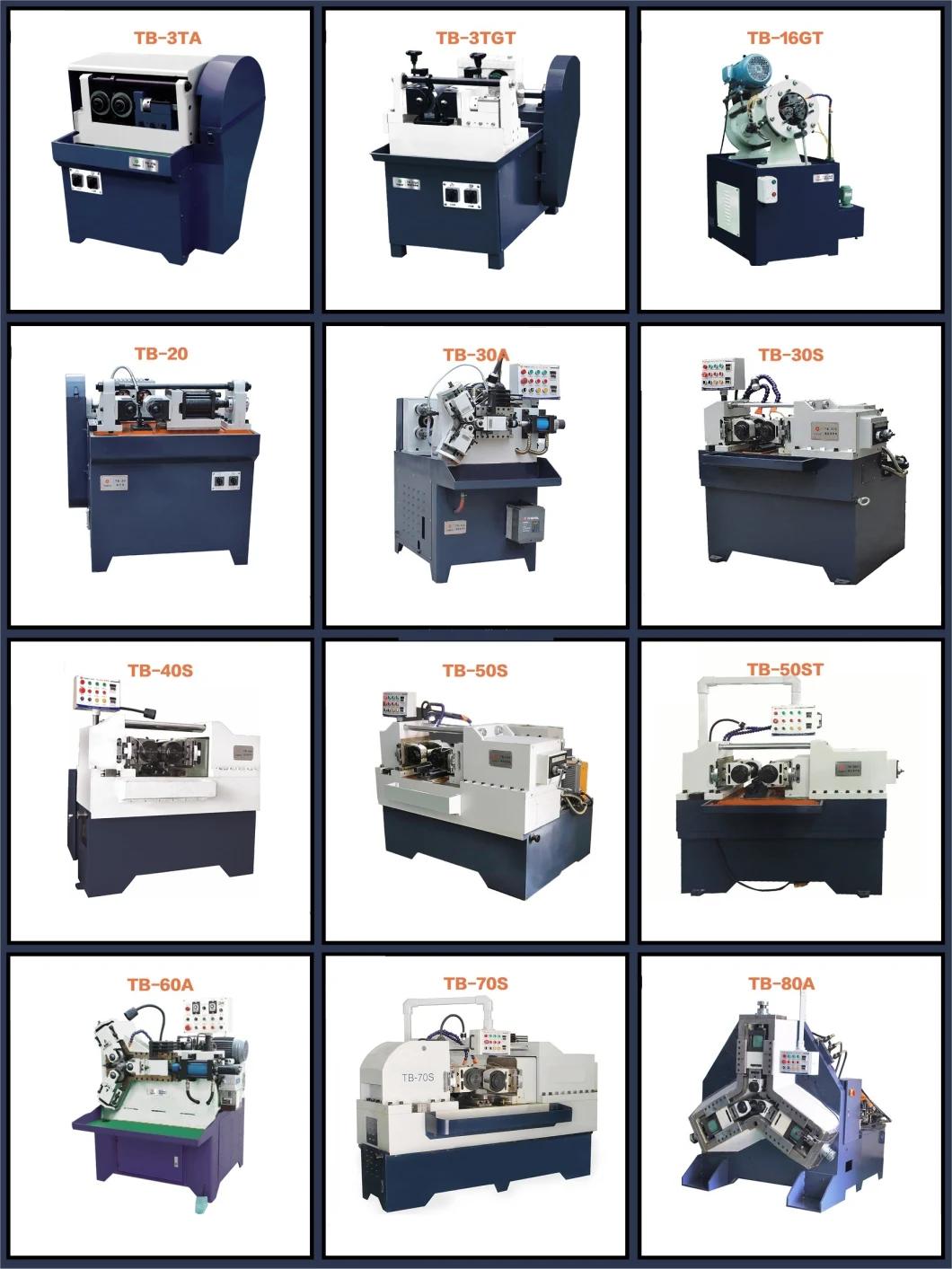

Other size in option
