OEM Gray/Ductile Iron Sand Cast Clay Iron Sand Cast Parts

Qingdao Xinghe Machinery Co., Ltd.
  • Type：Chemical Hardening Sand
  • Casting Method：Vacuum Aspirated Casting
  • Sand Core Type：Resin Sand Core
  • Application：Machinery Parts
  • Machining：EDM Machining
  • Material：Iron

Base Info

  • Model NO.：Custom iron casting
  • Surface Treatment：Spray-Paint
  • Surface Roughness：Ra3.2
  • Standard：ASME
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • Product：OEM Gray Ductile Iron Cast Clay Iron Sand Cast
  • Weight：0.1-100kg
  • Delivery Time：15-30days
  • Technology：Sand Casting + Machining
  • Secondary Machining：Milling, Tapping, Grinding, etc.
  • Other Surfacetreatment：Polishing, Anodising, Powder Coating etc
  • Post-Process：Heat Treatment
  • Sand Casting Material：Iron, Brass, Aluminum, Steel
  • Tolerance：+,-0.5mm
  • Transport Package：Wooden Crate or by Customer′s Requirment
  • Specification：OEM iron parts
  • Trademark：XH
  • Origin：Qingdao China
  • HS Code：8208200000
  • Production Capacity：10000tons, Year

Description

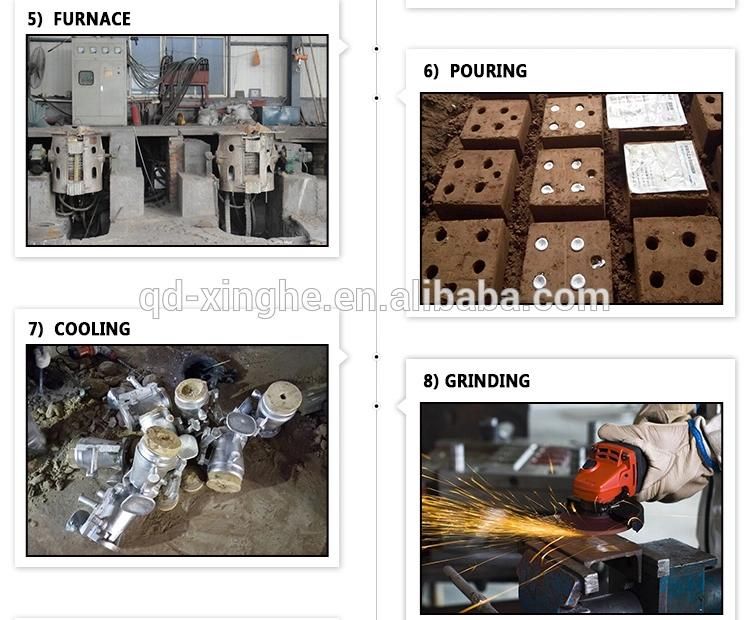

Process

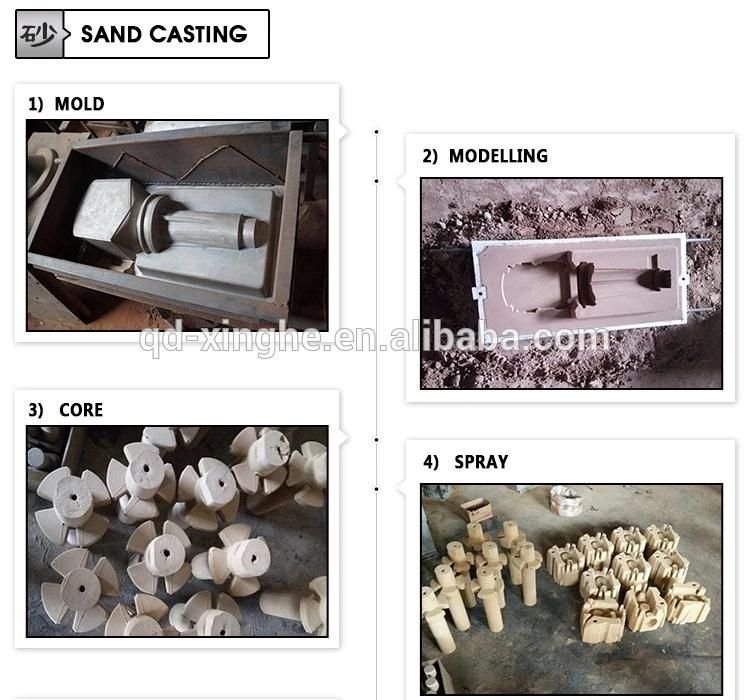

Sand casting

Common material

Technical parameters

Casting weight range: 0.6kg-2000kg

CNC Machined Surface Roughness (Ra/μm): 0.8

Casting Min. Wall Thickness 4mm

Casting Min. Linear tolerance 0.2mm

Casting Min. Position tolerance: 0.3mm

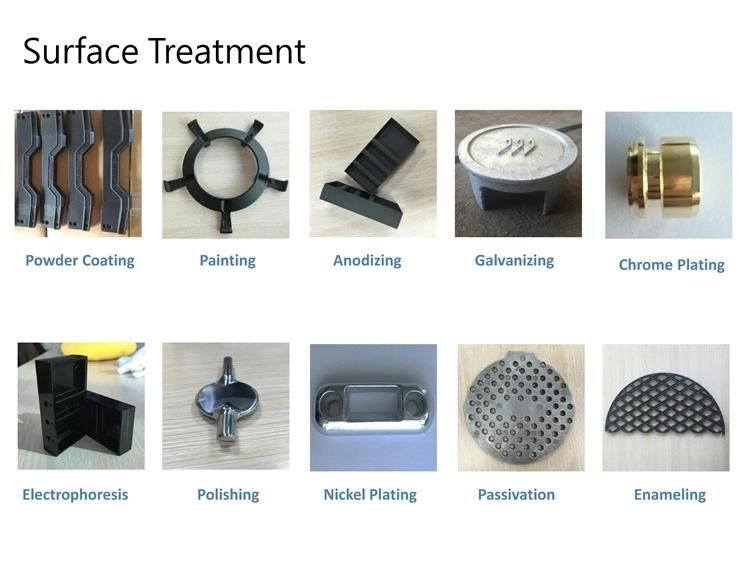

Surface treatment

Sand blasting, shot blasting, painting, polishing, powerd coating, anti-rust plaining, QPQ or galvanization etc.

Software

PRO/E, Auto CAD, Solid Works, Ug, CAD, CAM

Standard

AISI, ASTM, DIN, ISO, BS, JIS

Packing

A. Plastic Bag+ Carton box

B. Plastic Bag+ Carton Box + Wooden Case

C: Packing according to customer design requirement

All our products will be well packed to keep off damage or moisture.

Delivery Days

Nomally 30 days after receiving the prepayment, subject to the volume of the practical order.


OEM Gray/Ductile Iron Sand Cast Clay Iron Sand Cast Parts
