• Model NO.：aluminum heat sink
• Pressure Chamber Structure：Horizontal
• Tolerance Grade：4
• Casting Surface Quality Level：Customized
• Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
• Name：Aluminum Die Cast Heatsink for Electronics
• Technology：Aluminum Casting
• Brand Name：Xh
• Tolerance：+,-0.1mm
• Post-Processs：Hest Teatment
• Roughness：Ra 3.6-Ra6.3

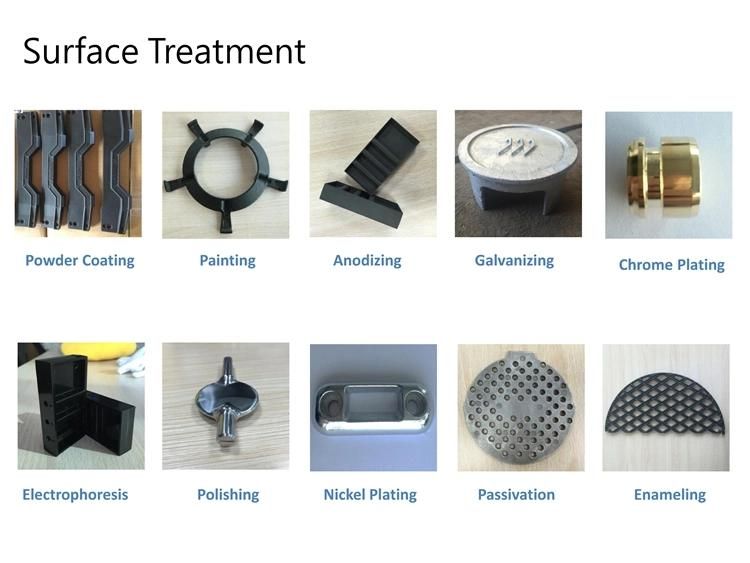

• Finish：Sand Blasting, Painting, Powder Coating
• Delivery Time：30 Days
• Transport Package：Wooden Crate or by Customer′s Requirement
• Specification：Customized small rack and pinion gears
• Trademark：XH
• Origin：Qingdao China
• HS Code：84834090
• Production Capacity：10000tons , Year

Product NameAluminum Die Cast Heatsink for ElectronicsMaterialAluminum ( Other material is also available)StandardDIN931,DIN933,DIN912,DIN125,DIN127,DIN934,DIN603 , SAE or GBProcesssand castingSizeaccording to the drawings or customer's requirementsCasting parts weight0.1 to 100KG, some aluminum sand casting parts can be several tonsMachiningCNC machiningsurface treatmentZine palting, Painting, Powder coating, or as customers' requirementsApplicationmachinery, machining partsPackageUsually is standard export packing with Plywood Case and also can upon customers' requirementDelivery timeTooling: roughly 30 days; Production: roughly 35 daysShippingBy air, by express or by sea

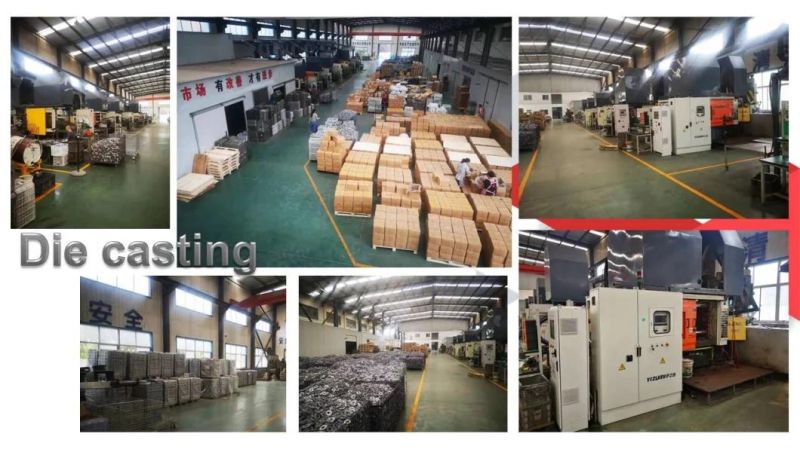

Die Casting Factory


Company&Clients

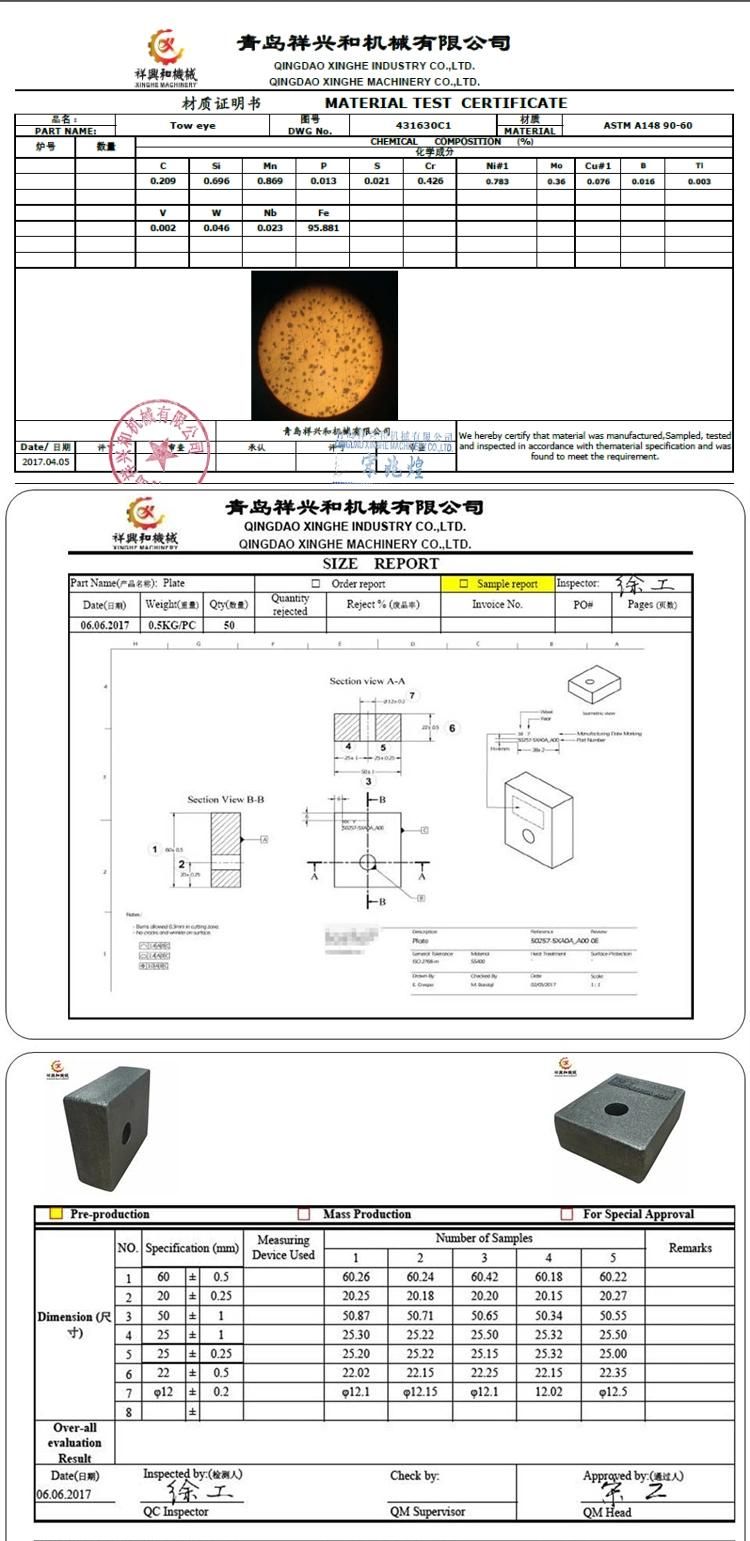

Inspection Report
