• Transport Package：Seaworthy Packing
• After Sale Service：Supply
• Color：as Customer′s Request
• Warranty：1 Year
• Item：Speed Increaser
• Certification：CE, ISO 9001:2000, ISO 9001:2008
• Standard：AISI
• Model NO.：HJ-A0020
• Specification：depend on
• Trademark：hangji
• Origin：China Shaaxi
• Production Capacity：50sets,Year

Basic Info.

Model NO. HJ-A0020 Standard AISI Certification CE, ISO 9001:2000, ISO 9001:2008 Item Speed Increaser Warranty 1 Year Color as Customer′s Request After Sale Service Supply Transport Package Seaworthy Packing Specification depend on Trademark hangji Origin China Shaaxi Production Capacity 50sets/Year

Product Description

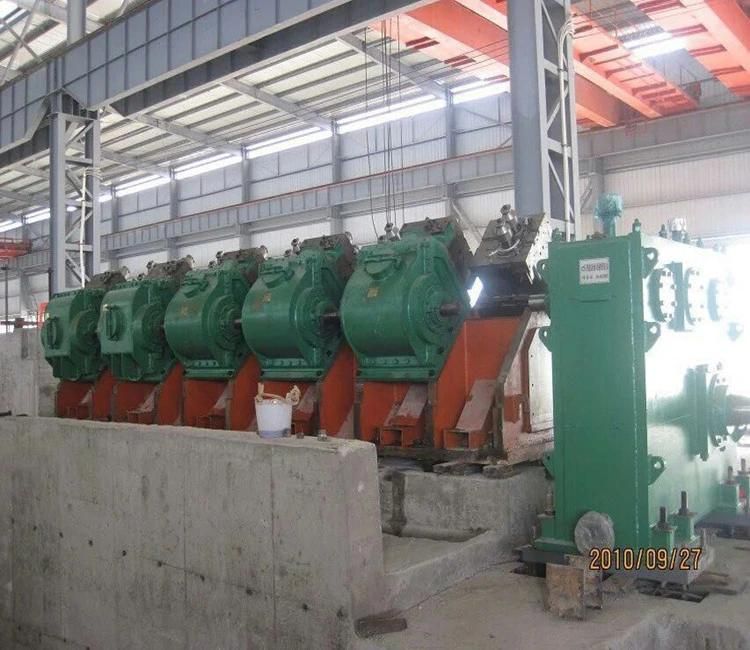

Composition of speed increaser for wire rod block mill
Spare parts of speed increasing gearbox case, support base, big gear, transmission axis, bevel wheel and lubrication system.

Technical characteristics
1, technical parameter

Highest speed output ratio45/157=0.2866
Lowest speed output ratio60/157)x(55/60)=0.3503
Motor power4500kW
Motor speed1000/1300r/min
High-speed output shaft speed4019r/min
Low-speed output ratio3288r/min
Gear meshed speed77.2m/s
The backlash is less than0.36mm

2, Technical characteristics
Box is melt with thick steel with great quality to reach the intensity that the case required. Case should take stress aging treatment before the produce to reach the stability that required.
Big gears and gear shaft used carbon alloy steel forging blank, after roughing, workpiece need to take ultrasonic flaw detection process to quench. In order to ensure the tooth surface with high hardness, tooth surface need to take carburizing and quenching treatment after semi-finishing. Fine grind of tooth surface to insure the high accuracy, after finishing the production of gear, the balance test is needed, the experience speed is 1500r/min and the balance level is G2.5.
Transmission shaft use the alloy steel forging blank, transmission shaft takes quenched to make sure the intensity and durableness. After the semi- finishing, transmission need to grind to guarantee the accuracy of every workpiece.
When the assemble finished, the no-loading test should be keep 2-4hours, the speed is 1200r/min, the temperature of shaft should not exceed 60º C, the work of gear should be smooth, no hitting noise and concussion, every joint surface should not have oil spill phenomenon.
