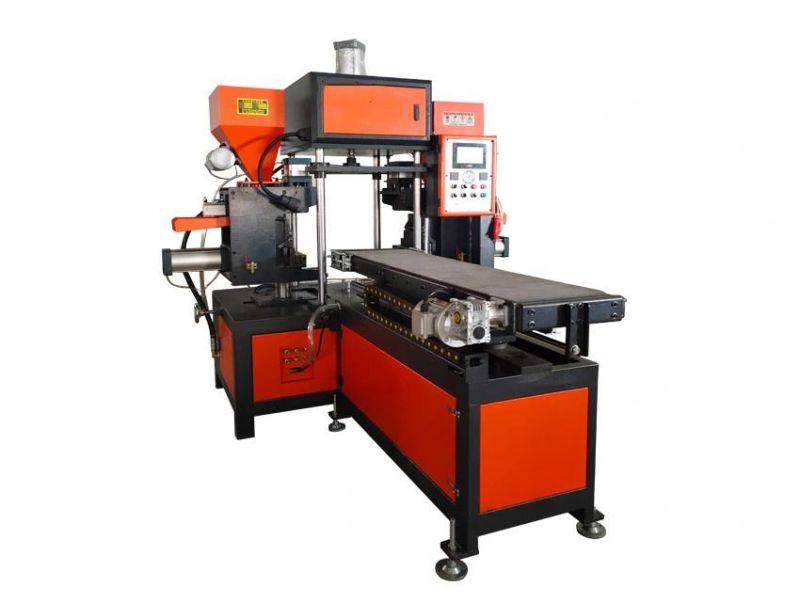

Double Head Heat Core Box Shooting Machine for Dry or Wet Sand

QUANZHOU YUELI AUTOMATION CO., LTD.
  • Material：Copper and Copper Alloy
  • Machining：CNC Machining
  • Sand Core Type：Resin Sand Core
  • Casting Method：Vacuum Aspirated Casting
  • Type：Clay Wet Sand
  • Surface Treatment：Sand Blast

Base Info

  • Origin：China
  • Trademark：Yueli
  • Specification：3218*1850*2618
  • Transport Package：Wooden Package
  • Certification：ISO 9001:2000
  • Standard：GB
  • Surface Roughness：Ra0.05
  • Model NO.：YL-500-S
  • HS Code：8458912090
  • Production Capacity：3000PCE,Year

Description

Double Head Heat Core Box Shooting Machine for Dry or Wet SandDouble Head Heat Core Box Shooting Machine for Dry or Wet SandDouble Head Heat Core Box Shooting Machine for Dry or Wet Sand

II.Technical Parameter
ContentsYL-500-S(conveyor belt)
Max sand core weight3.5kg*2
Max mould size30s/m
Sand humidity2.5%-3.5%
Driving modeelectric+penumatic+hydraulic
Using electricAV380V 50Hz
Equipment power13.5kw
Net weight7100kg
Dimension3218*1850*2618mm

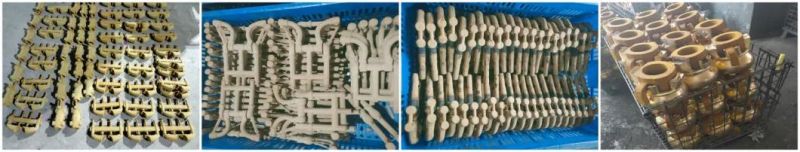

III.Finished production
Double Head Heat Core Box Shooting Machine for Dry or Wet Sand

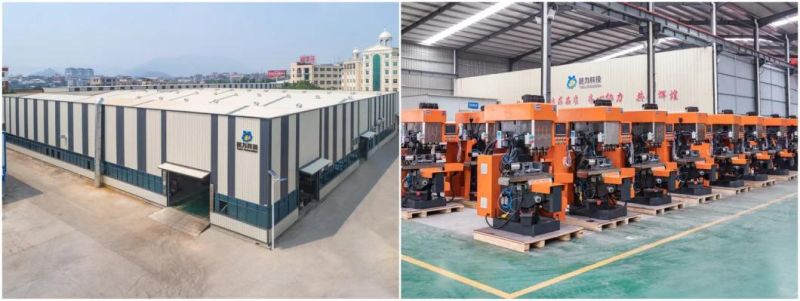

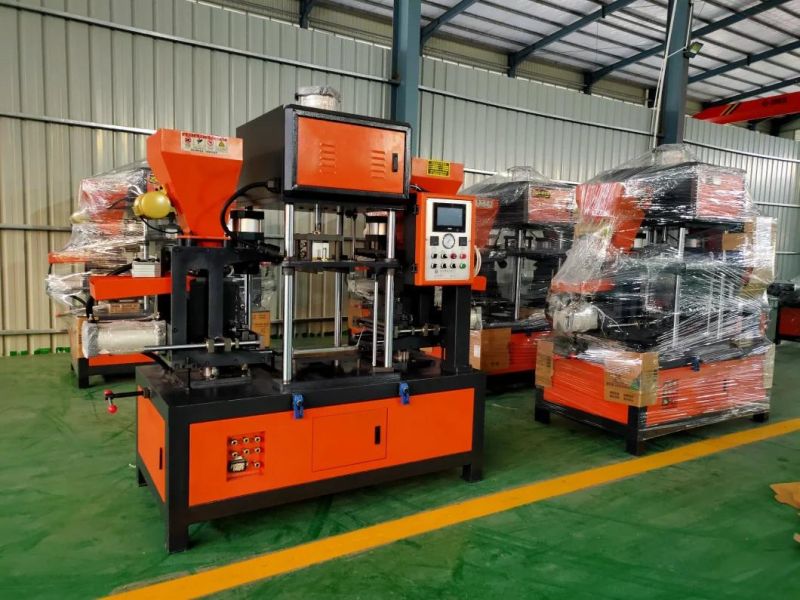

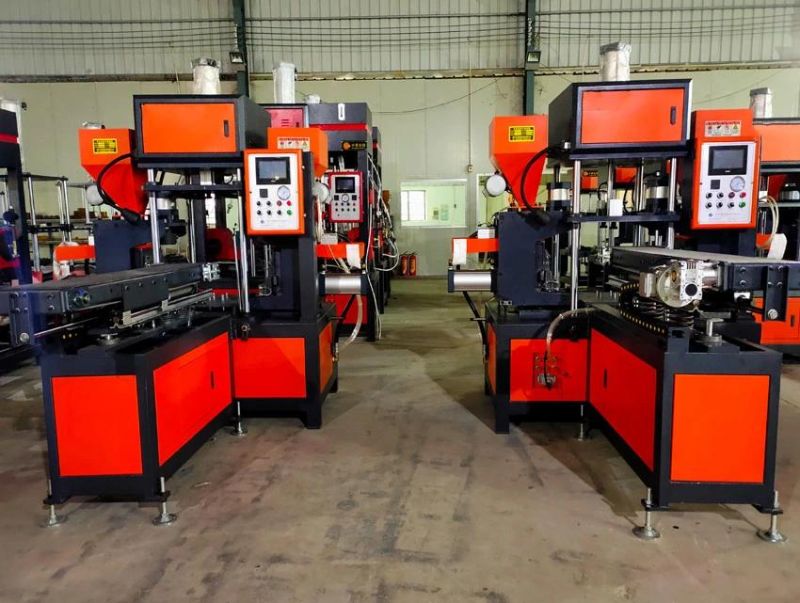

IV.Production workshopDouble Head Heat Core Box Shooting Machine for Dry or Wet Sand

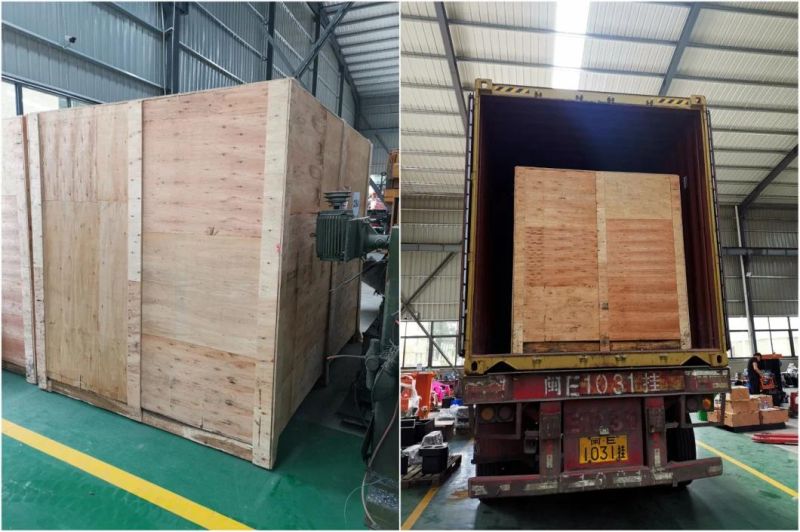

V.Package and Loading
Double Head Heat Core Box Shooting Machine for Dry or Wet Sand
If you have any interest, pls feel free to contact at any time.
