• Model NO.：Y3725
• Surface Treatment：Polishing
• Surface Roughness：Ra0.05
• Standard：GB
• Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008

Basic Info.

Model NO. Y3725 Surface Treatment Polishing Surface Roughness Ra0.05 Standard GB Certification CE, RoHS, ISO 9001:2000, ISO 9001:2008

Product Description

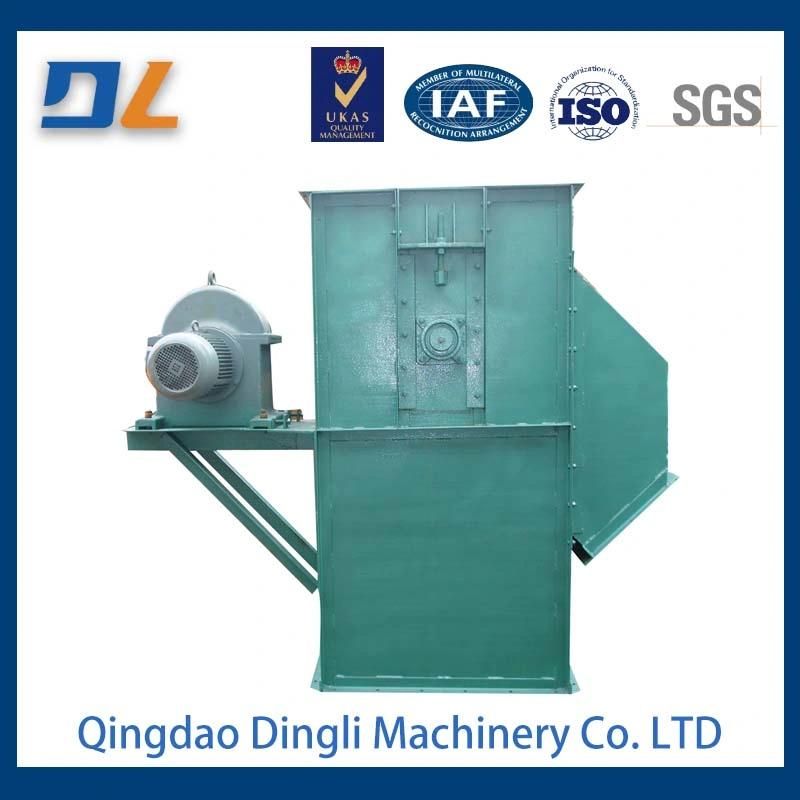

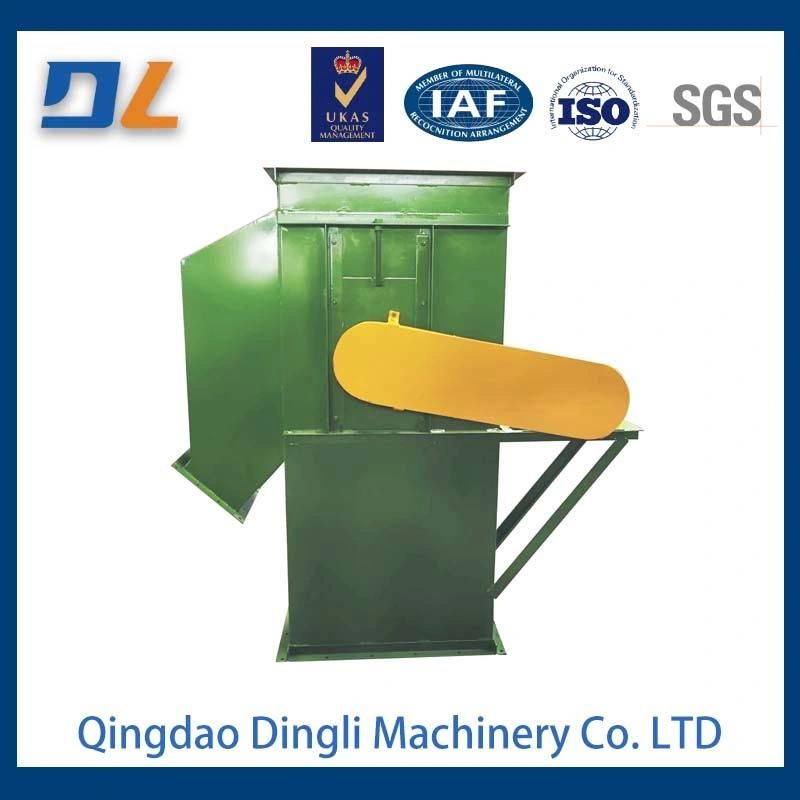

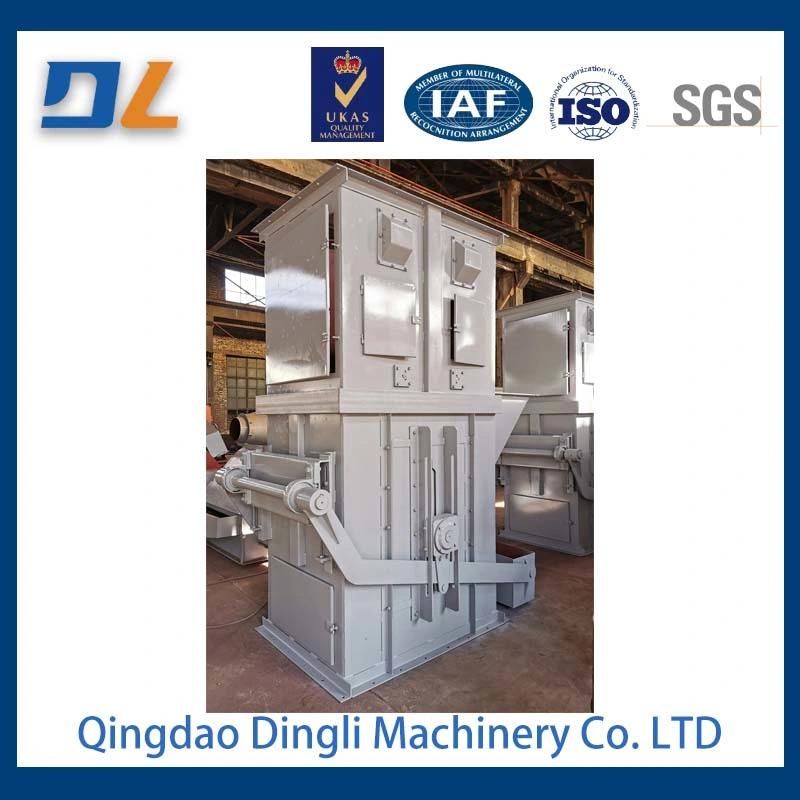

Y37 series bucket hoist is a kind of vertical conveying equipment which is widely used in mechanized foundry workshop. It is mainly used for old sand, waste sand, new sand, clay sand, coke powder, iron ball cleaning and so on. It can also be used to raise clay powder, clay molding sand and other materials. With belt conveyor and other equipment, it can be arranged into a variety of transport systems, the machine has the characteristics of small shape size, small area, large lifting height, good sealing, compact arrangement and so on. Technical performance: Type Y3725 Deep bucket Shallow bucket Material Bucket Bucket width (mm) 250 Capacity (L) 7.8 5.0 Bucket pitch (mm) 400 Conveyance capacity (m / h) 42 15 Weight per metre of hopper and tape (kg) 13.9 12.1 Conveying tape Width (mm) 270 Layer number 4 Number of outer layers (mm) 1.5/1.5 Hopper speed (m / s) 1.25 Rotary number of driving drum (rotary / minute) 47.5 Maximum size of material (mm) 45 Note: the conveying capacity in the table is 0.6 for the deep bucket and 0.4 for the shallow bucket. Configuration: Ka series brake deceleration motor, control the upper end wheel equipped with a detection system.
