• Model NO.：131
• Surface Treatment：Sand Blast
• Surface Roughness：Ra12.5
• Standard：AISI
• Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
• Name：Slurry Pump Casing
• Mqq：1 Set
• OEM：Accept
• Certificate：ISO 9001, Ce
• After Sales：Yes
• Transport Package：Packed with Wooden Box or as Customer′s Request
• Specification：CE, ISO, SGS
• Trademark：Naipu Or OEM
• Origin：Shijiazhuang, China
• HS Code：8413910000
• Production Capacity：500 Set Per Month

Basic Info.

Model NO. 131 Surface Treatment Sand Blast Surface Roughness Ra12.5 Standard AISI Certification CE, RoHS, ISO 9001:2000, ISO 9001:2008 Name Slurry Pump Casing Mqq 1 Set OEM Accept Certificate ISO 9001, Ce After Sales Yes Transport Package Packed with Wooden Box or as Customer′s Request Specification CE, ISO, SGS Trademark Naipu Or OEM Origin Shijiazhuang, China HS Code 8413910000 Production Capacity 500 Set Per Month

Product Description

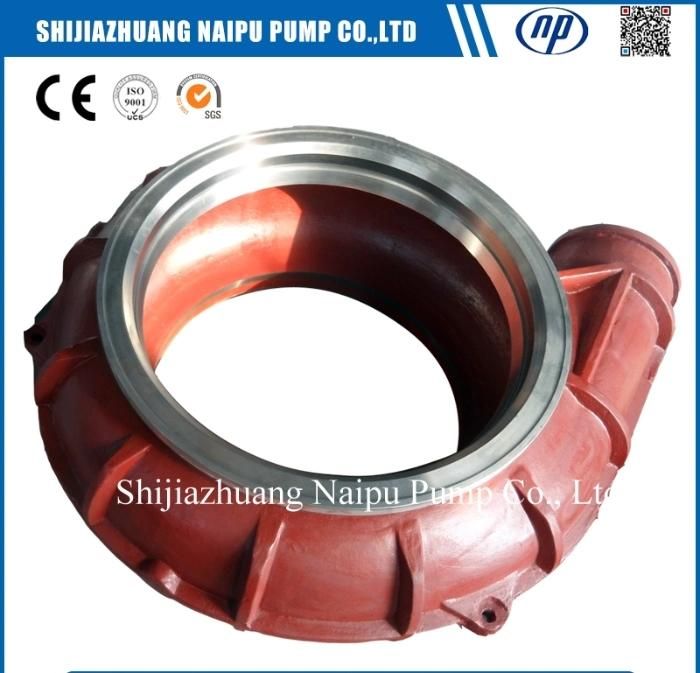

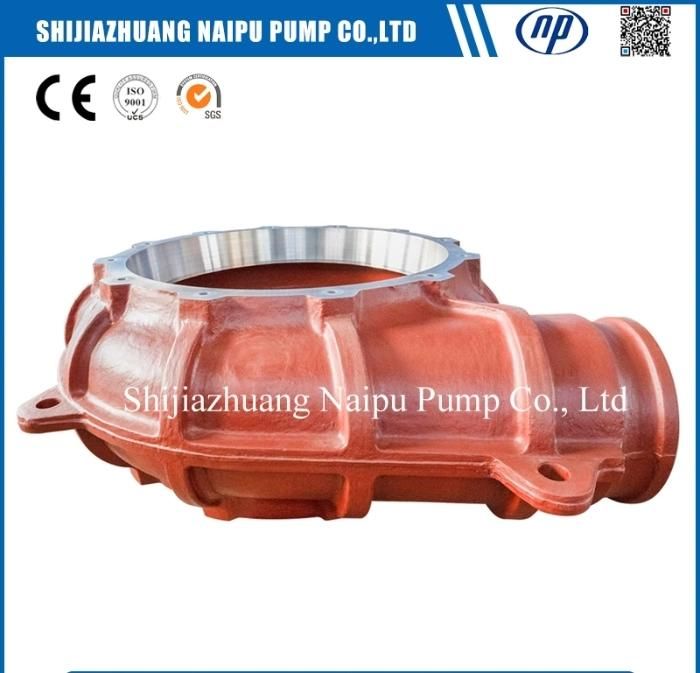

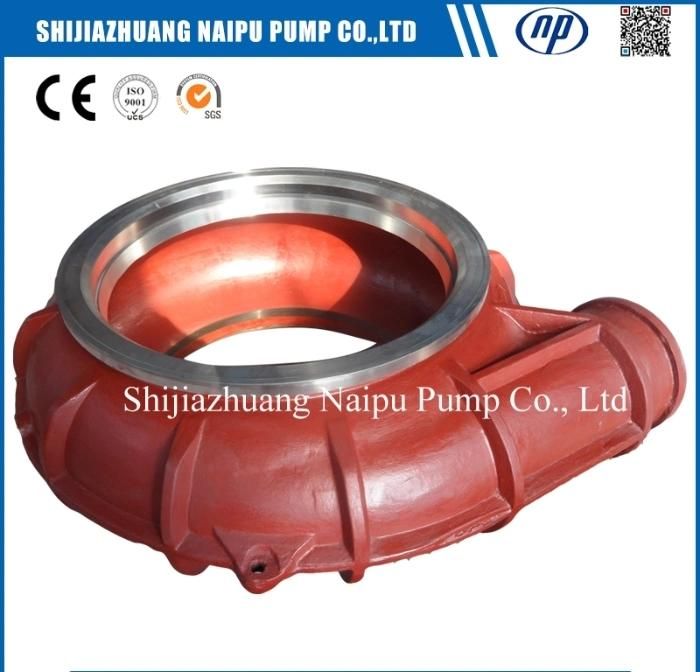

OEM 6 ton Sand Casting Chrome A05 Slurry Pump Casing Parts
 Shijiazhuang Naipu Pump Co., Ltd is a professional factory of slurry pump, sand gravel pump, dredging pump, with 30 years production experience.

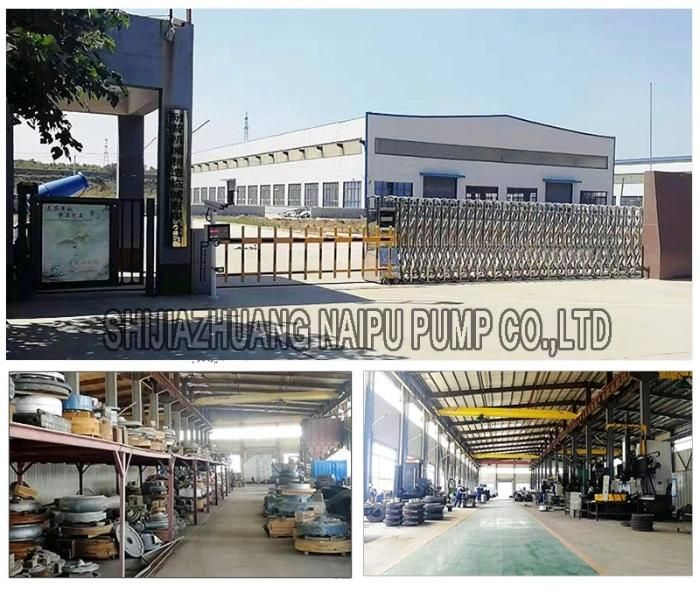

Naipu®  own Mould Workshop, Casting Workshp, Machining Workshop and Assembly Workshop .

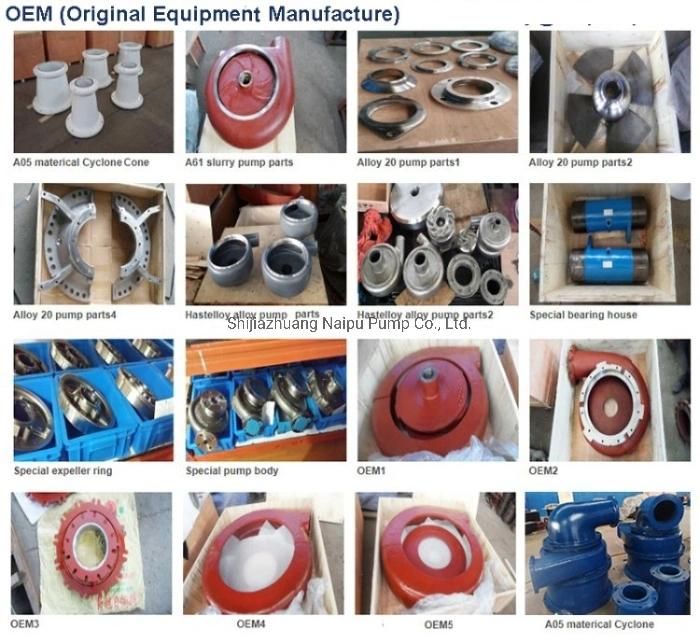

OEM Service
Naipu is willing to undertake any OEM(Origin Equipment Manufacture) order for pump and mining equipment accoring to the drawing or sample.

Considering various requirement for material in the market, we can supply wet end part material as following, metal material A05,A07,A12,A33,A49,A61 and etc. Rubber material R08, R26, R33,R55, S01, S12, S21, S31, S42 and etc. Given customer's special request for abrasion and erosion in pumping environments, we can supply the material according to customer's material formula or sample to meet your need.


Application:

The parts are widely used in Main Applications: Heavy Mining | Mineral Processing | Sand and Gravel |Coal Prep | Cyclone Feeds | Aggregate Processing | Fine Primary Mill Grinding | Chemical Slurry Service | Tailings | Secondary Grinding | Industrial Processing | Pulp And Paper | Food Processing | Cracking Operations | Ash Handling | Pipeline Transport | High Velocity Hydraulic Transport |Food Processing | Explosive Sludge In Metal Smelting | River And Pond Dredging | Heavy Refuse Removal | Larger Particle Or Low NPSHA Applications | Continuous (Snore) Sump Pump Operation | Abrasive Slurries | High Density Slurries | Large Particle Slurries | Sump Drainage | Wash down | Floor Drainage | Mixing | Iron Ore | Cooper | Diamond | Alumina | Coal | Gold | Kaolin | Phosphorite | Steel | Palm | Suger | Chemical | Power | FGD | Frac Sand Blending | Construction | City Sewage | etc.



OEM Service



Pump Material


Code	Material #	Hardness  HRC	Performance	Application
A05	KmTBCr26	≥56	Ranks second only to A07 in abrasion-resistant performance; fair corrosion-resistant performance.	High impact load abrasion condition; PH rate ranging from 5 to 12
A07	KmTBCr15Mo3	≥59	Best abrasion-resistant performance; corrosion-resistant performance is inferior to A05	High impact load abrasion condition
A11	KmTBCrMnMo3	38-42	Mild corrosion-resistant; lower hardness; drilling and tapping operations are applicable.	Fine particles with light abrasion.
A33		≥35	Abrasion-resistant performance is close to A03; fair corrosion-resistant performance	Oxide slurry with PH rate no less than 1, like phosphor-gypsum in phosphate fertilizer plant, nitric acid, sulph-oacid and phosphoric acid, etc.
A49		≥43	Fair abrasion-resistant performance, close to A03; fair corrosion-resistant performance in media with lower PH rate.	Corrosion conditions with low PH rate, especially for flue gas and FGD devices for media of PH≥4; general suitable for lower acid condition.
A12		≥62	Higher abrasion-resistant performance than A05; fair corrosion-resistant performance; suitable for media with PH rate is 6-16, where A05 is not suitable.	High abrasive slurry with fine particles.
A61		63-68	Optimized abrasion-resistant performance than A12	High abrasive slurry with fine particles.

Welcome to contact us


Shijiazhuang Naipu Pump Co.,Ltd
Contact person :Katherine Hou


Welcome to contact me  for  Wear Spare Parts catalogue and price list .
