as Drawing Heavy Duty Machinery Parts Lost Form Process Investment Sand Casting in Grey ...

HENAN QIANGXIN PRECISION MACHINERY CO., LTD.
  • Application：Machinery Parts
  • Sand Core Type：Resin Sand Core
  • Casting Method：Directional Crystallization
  • Type：Clay Dry Sand
  • Machining：Machining Center
  • Material：Steel

Base Info

  • Trademark：Qiangxin
  • Specification：1kg-500kg
  • Transport Package：Pallet
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • Standard：ASME
  • Surface Roughness：Ra3.2
  • Surface Treatment：Sand Blast
  • Model NO.：OEM
  • Origin：Xinxiang City, Henan Province, China
  • HS Code：7307190000
  • Production Capacity：200ton-500ton Per Month

Description

Basic Info.

Model NO. OEM Surface Treatment Sand Blast Surface Roughness Ra3.2 Standard ASME Certification CE, ISO 9001:2000, ISO 9001:2008 Transport Package Pallet Specification 1kg-500kg Trademark Qiangxin Origin Xinxiang City, Henan Province, China HS Code 7307190000 Production Capacity 200ton-500ton Per Month

Product Description

as Drawing Heavy Duty Machinery Parts Lost Form Process Investment Sand Casting in grey ion/cast steel

Henan Qiangxin Precision Machinery Co., LTD. Is a set of technology research and development, production, sales, service as one of the modern casting enterprises, specializing in the production of steel casting, large cast steel.

Founded in 2000, our company can provide various types and specifications of carbon steel and alloy steel castings for mining, building materials, forging and pressing, metallurgy, road and bridge, hydraulic and other industries, with large vertical lathe and gear hobbing machine.

The company mainly produces grey iron, ductile iron, alloy cast iron and other resin sand castings. The main products are stainless steel castings, wear-resistant material castings, machine tool castings, valve castings, large generator castings, reducer castings, water pump castings, heavy vehicle spare parts castings, construction machinery castings, rail transit castings, wind power castings and other general machinery parts castings.

Work Process Show

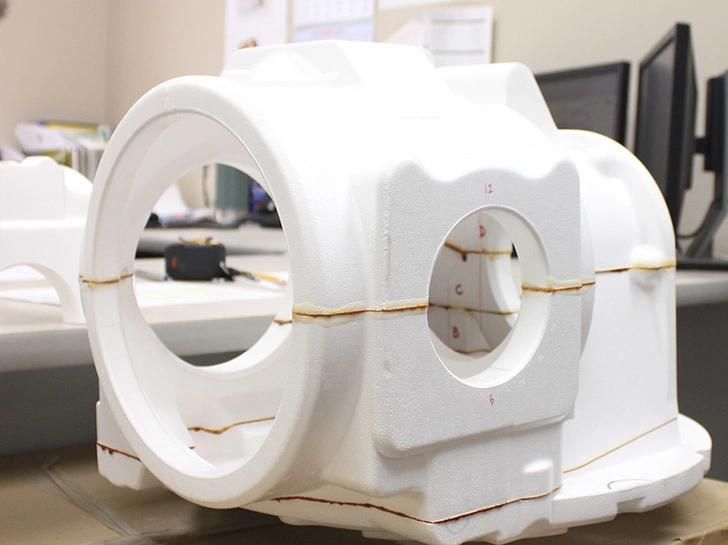

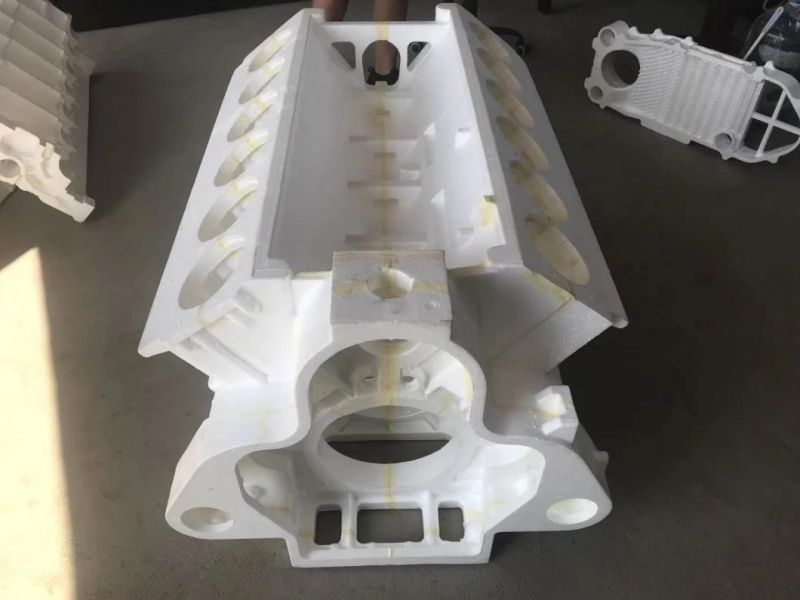

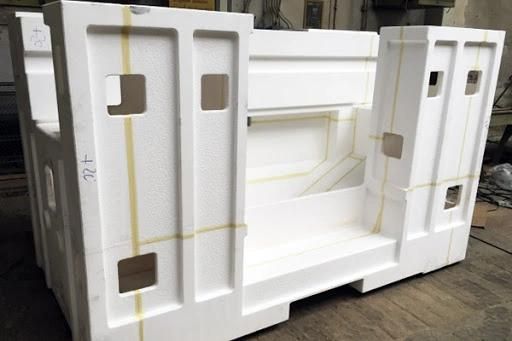

1.Mold Making
as Drawing Heavy Duty Machinery Parts Lost Form Process Investment Sand Casting in Grey Ion/Cast Steel
as Drawing Heavy Duty Machinery Parts Lost Form Process Investment Sand Casting in Grey Ion/Cast Steel
as Drawing Heavy Duty Machinery Parts Lost Form Process Investment Sand Casting in Grey Ion/Cast Steel
as Drawing Heavy Duty Machinery Parts Lost Form Process Investment Sand Casting in Grey Ion/Cast Steel
as Drawing Heavy Duty Machinery Parts Lost Form Process Investment Sand Casting in Grey Ion/Cast Steel

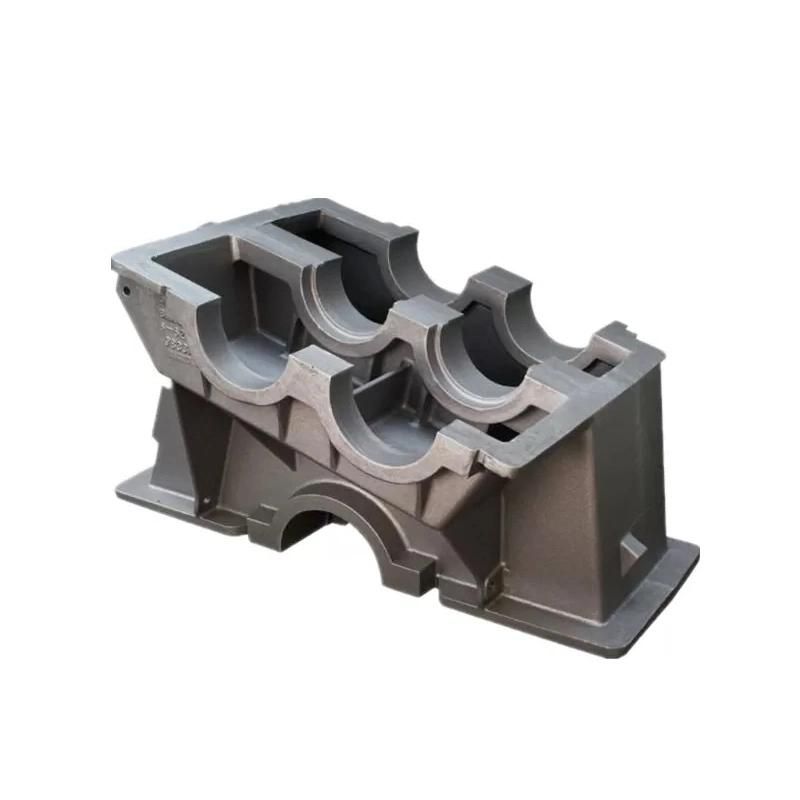

Product Show
as Drawing Heavy Duty Machinery Parts Lost Form Process Investment Sand Casting in Grey Ion/Cast Steel

as Drawing Heavy Duty Machinery Parts Lost Form Process Investment Sand Casting in Grey Ion/Cast Steel

as Drawing Heavy Duty Machinery Parts Lost Form Process Investment Sand Casting in Grey Ion/Cast Steel

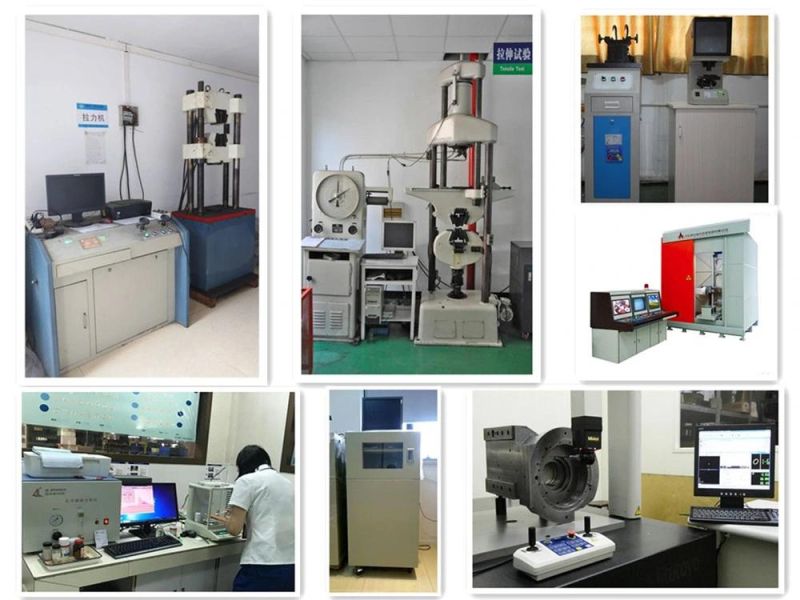

Inspection
as Drawing Heavy Duty Machinery Parts Lost Form Process Investment Sand Casting in Grey Ion/Cast Steel
General Products

Application		Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, Agriculture machine metal Parts, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc.
Main blank Process for CastingSand Casting , Resin Sand Casting, Green Sand Casting, Shell Molding, Automatic Molding, Lost Wax Casting, Lost Foam Molding Casting etc.
Blanks Tolerance -Casting ToleranceCT9-10 for Machine Molding Process,

CT8-9 for Shell Molding and Lost Foam Molding Casting Process

CT10-11 for Manual Molding Sand casting Process
Applicable MaterialSee Table Below (Ductile Iron Casting, Grey Iron Casting)

OR According to customer requirement
Casting Blank Size /Dimensions2 mm-2000mm / 0.08inch-79inch for  free forging pressaccording to customer requirement
Casting Blank WeightRange from 0.01kg-1000kg for  free forging press
Applicable Machining ProcessCNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc.
Machining ToleranceFrom 0.005mm-0.01mm-0.1mm
Machined Surface QualityRa 0.8-Ra3.2, according to customer requirement
Applicable Heat TreatmentNormalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching
Applicable Finish Surface TreatmentShot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting etc.
MOQFor cast iron: 100pcs

For Machining: 50pcs

FAQ
1.How can I get the quotation?
Please give us your drawing,quantity,weight and material of the product.
2.If you don't have the drawing,can you make drawing for me? Yes,we are able to make the drawing of your sample duplicate the sample.
3.When can I get the sample and your main order time? Sample time: 35-40 days after start to make mold. Order time: 35-40 days, the accurate time depends on product.
4.What is your payment method? Tooling:100% T/T advanced Order time:50% deposit,50%to be paid before shipment.
5.Which kind of file format you can read? PDF, IGS, DWG, STEP, MAX
 6.What is your surface treatment? Including: powder coating, sand blasting, painting, polishing, acid pickling, anodizing, enamel, zinc plating, hot-dip galvanizing, electrophoresis, chrome plating.
7.What is your way of packing? Normally we pack goods according to customers' requirements.
