OEM Resin Sand Cast Iron Foundry China

Qingdao Xinghe Machinery Co., Ltd.
  • Type:Chemical Hardening Sand
  • Casting Method:pressure Crystallization
  • Sand Core Type:Resin Sand Core
  • Application:Machinery Parts
  • Machining:CNC Machining
  • Material:Aluminium & Aluminum Alloy

Base Info

  • Model NO.:cast iron foundry china
  • Surface Treatment:Spray-Paint
  • Surface Roughness:Ra6.3
  • Standard:ASME
  • Certification:CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • OEM:OEM Resin Sand Cast Iron Foundry China
  • Demension:with Drawing
  • Post- Processing:Heat Treatment
  • Testing:Magnetic, Particle Inspector CMM
  • OEM and ODM:100%
  • Technology:Casting + Machining
  • Weight Range:0.5-5000kgs
  • Delivery:30 Days After Payment
  • Finish:Paint
  • Roughness:Ra 3.2
  • Transport Package:Gunny Bag,Wooden Crate,Iron Drum+Pallet
  • Specification:SGS
  • Trademark:XINGHE
  • Origin:Qingdao China
  • Production Capacity:200tons to 500tons Per Month

Description

Process

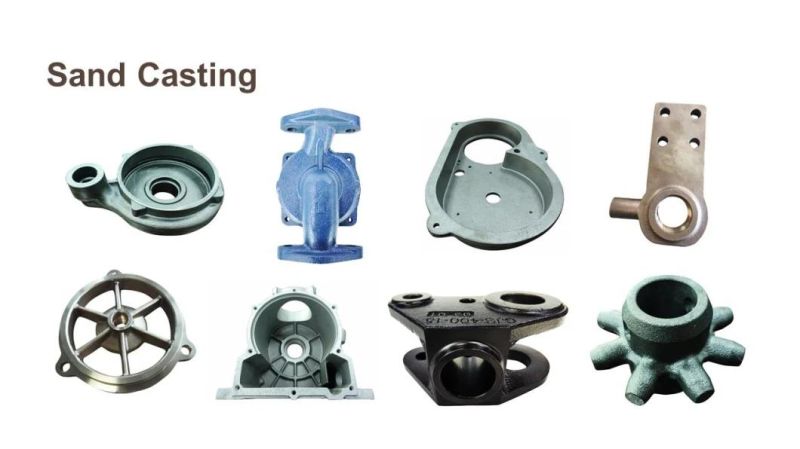

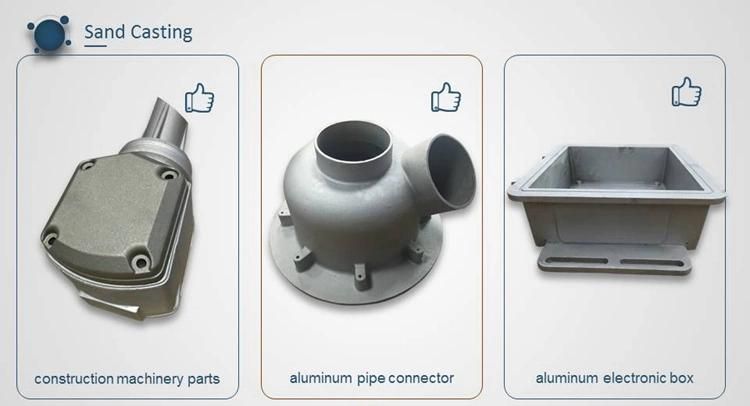

Sand casting/furan resin casting

Common material

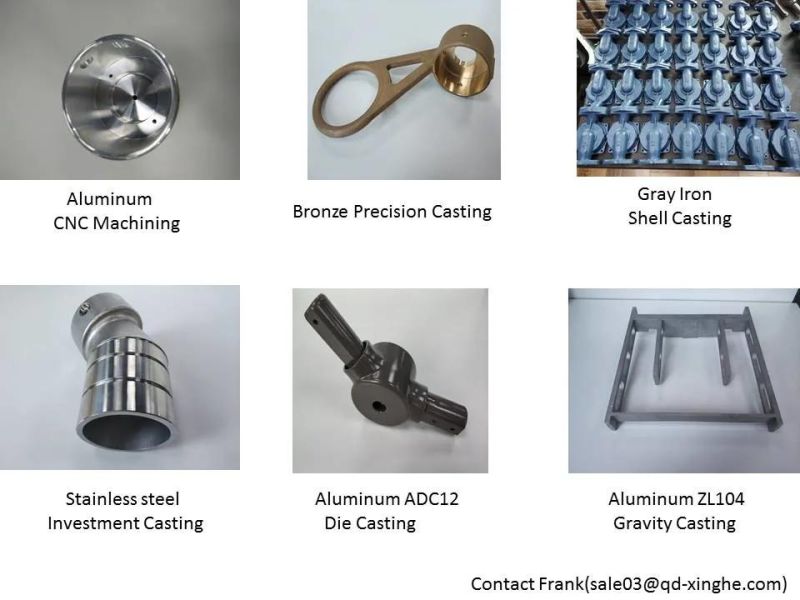

iron , Grey iron, Ductile iron, Aluminum, Bronze , ADI

Technical parameters

Casting weight range:0.6kg-2000kg

CNC Machined Surface Roughness (Ra/μm): 0.8

Casting Min. Wall Thickness 4mm

Casting Min. Linear tolerance 0.2mm

Casting Min. Position tolerance: 0.3mm

Surface treatment

Sand blasting, shot blasting, painting, polishing, powerd coating , anti-rust plaining ,QPQ or galvanization etc.

Software

PRO/E, Auto CAD, Solid Works, Ug, CAD, CAM

Standard

AISI, ASTM, DIN, ISO, BS, JIS

Packing

A. Plastic Bag+ Carton box

B. Plastic Bag+ Carton Box + Wooden Case

C: Packing according to customer design requirement

All our products will be well packed to keep off damage or moisture.

Delivery Days

Nomally 30 days after receiving the prepayment, subject to the volume of the practical order.
