Desktop Laminator Machine for Laminating Sample Sizes up to 200*140*15mm

Hangzhou Zhongneng Photoelectricity Technology Co., Ltd.
  • Trademark：PEROVS
  • Transport Package：Wooden Box Shockproof
  • Type：Vacuum Die Casting
  • Origin：Hangzhou

Base Info

    Description

    Product Description

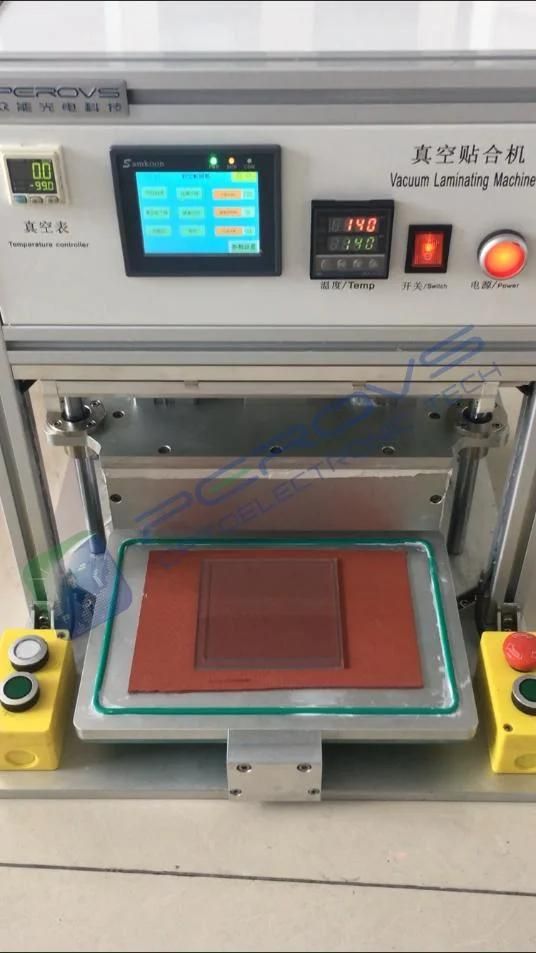

    Vacuum Desktop Laminator

    The laminator is a mechanical device that presses multiple layers of materials together. It is an important device required for manufacturing solar cell modules, and it is a device that presses EVA, solar cell sheets, tempered glass and backsheet (TPT, PET and other materials) into a whole with certain rigidity under the condition of high temperature vacuum.

    This equipment vacuum laminator is equipped with vacuum pump, can laminate sample size up to 100mm * 100mm * 2.5mm (equipment maximum lamination size about: 200 * 140 * 15mm); heating temperature can be adjusted: 0 ºC - 150 ºC; vacuum time and holding time: 0-999s; vacuum degree: ≤ -99kpa.

    Desktop Laminator Machine for Laminating Sample Sizes up to 200*140*15mm
    The equipment is small, compact, simple and convenient to operate, and can be placed directly on the laboratory table.

    Photovoltaic industry cell packaging.Specially used in the laboratories of materials departments of some universities in China.
