• Model NO.：Cusotmized
• Pressure Chamber Structure：Vertical
• Tolerance Grade：CT5-7
• Casting Surface Quality Level：OEM
• Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008, as Customer Request
• Item Name：Farm Tool Bracket A380 Aluminum Die Casting
• Casting Material：Zl101, A356, A380 Alsi7mg, ADC12
• Casting Tolerance：CT5-7 for Aluminum Casting
• Machining Process：CNC Machining, Lathing, Milling, Turning, Boring,
• Machining Tolerance：up to It7, Ra 0.8~3.2, According to Customer Req
• Surface Treatment：Anodize, Painting, Powder Coating
• Rough Surface Roughness：Ra3.2-25 for Aluminum Die Casting
• Package Specification：Multiplayer Wood Box,Pallet, with Big Plastic Bag
• Lead Time：45 Days for Die Casting
• Service：Custom Parts Based on Drawing or Sample
• Transport Package：Multiply Wood Box with Big Plastic Bag Inside
• Specification：OEM Customized
• Trademark：Matech
• Origin：Zhejiang
• HS Code：8432900000
• Production Capacity：300 Tons,Month

Basic Info.

Model NO. Cusotmized Pressure Chamber Structure Vertical Tolerance Grade CT5-7 Casting Surface Quality Level OEM Certification CE, RoHS, ISO 9001:2000, ISO 9001:2008, as Customer Request Item Name Farm Tool Bracket A380 Aluminum Die Casting Casting Material Zl101, A356, A380 Alsi7mg, ADC12 Casting Tolerance CT5-7 for Aluminum Casting Machining Process CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Machining Tolerance up to It7, Ra 0.8~3.2, According to Customer Req Surface Treatment Anodize, Painting, Powder Coating Rough Surface Roughness Ra3.2-25 for Aluminum Die Casting Package Specification Multiplayer Wood Box/Pallet, with Big Plastic Bag Lead Time 45 Days for Die Casting Service Custom Parts Based on Drawing or Sample Transport Package Multiply Wood Box with Big Plastic Bag Inside Specification OEM Customized Trademark Matech Origin Zhejiang HS Code 8432900000 Production Capacity 300 Tons/Month

Product Description

Product Detail

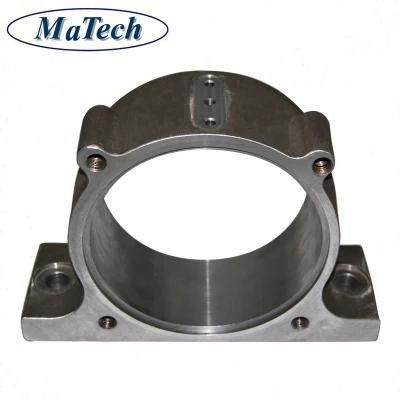

Item Name	Farm Tool Bracket A380 Aluminum Die Casting
General Products         Application/Service Area	Metal Parts Solution for Vehicle, Agriculture machine,    Agriculture machine metal Parts, Industry parts etc.
Main blank Process for Aluminum Casting	Die casting,Low Pressure Casting, .
Blanks Tolerance -Casting  Tolerance	ISO2768-m for Die Casting,
Applicable Material for casting	A356.0/ZL101,GAlSi7Mg A380,ADC12 Or according to customer requirement
Casting Blank Size  /Dimensions	2 mm-1500mm / 0.08inch-60inch , or according to customer requirements
Casting Blank Weight	Range from 0.01kg-50kg
Applicable Machining Process	CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/  Broaching/Reaming /Grinding/Honing and  etc.
Machining Tolerance	From 0.005mm-0.01mm-0.1mm
Machined Surface Quality	Ra 0.8-Ra3.2 according to customer requirement
Applicable Heat Treatment	T5~T6
Applicable Finish Surface  Treatment	Shot/sand blast, polishing,  Primer Painting , Powder coating, Finish Painting,
MOQ	For aluminum casting : 2000pcs
Lead Time	45days from the receipt date of deposit for Aluminum Die Casting

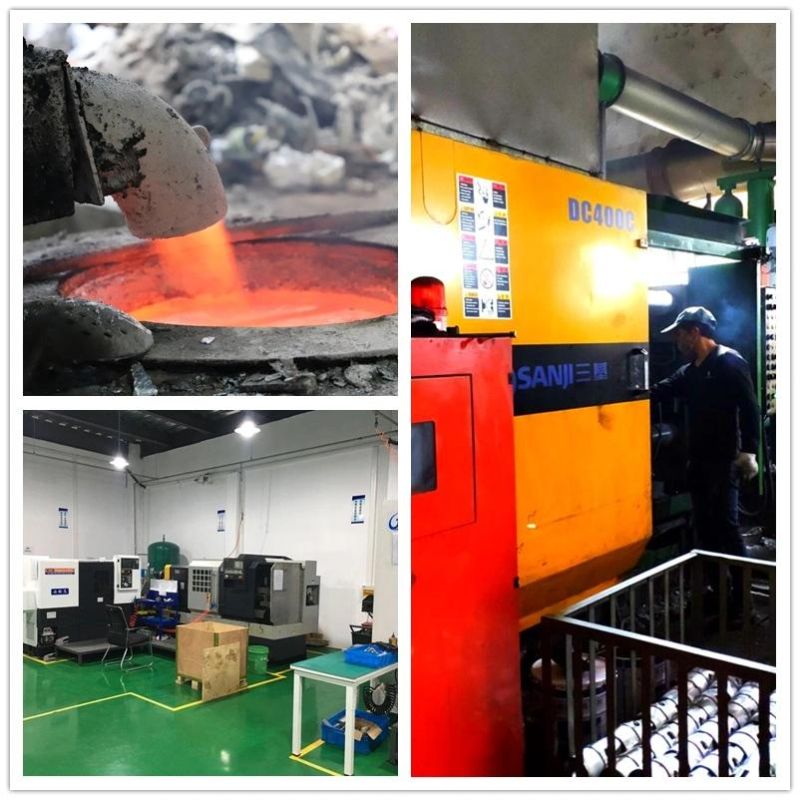

Factory show

Packaging & shipping





Technology

Match Industry Ltd.can supply ONE-STOP service to you from die casting, machining to surface treatment. Time and cost will be saved for you.

There are 12 die casting machines and furnaces in factory. The casting machine specification is from 200 ton, 400 ton to 800 tons.  The capacity is over 25 tons per month.  The furnace size is 500 Kg.

There are 15 professional engineers whose experience over 8 years. We can supply feasible analysis for you. Speed and precision are our aim.

Casting pouring simulation can be supplied if it's needed. Melting filling the mold and cooling status (speed and consequence) are clearly simulated, concentration of over heat positions and potential casting shrinkage can be early identified and  avoid by pre-actions.

What we supplied is high precision customized part of vehicle and machinery. It is sure that we can bring value to you.
