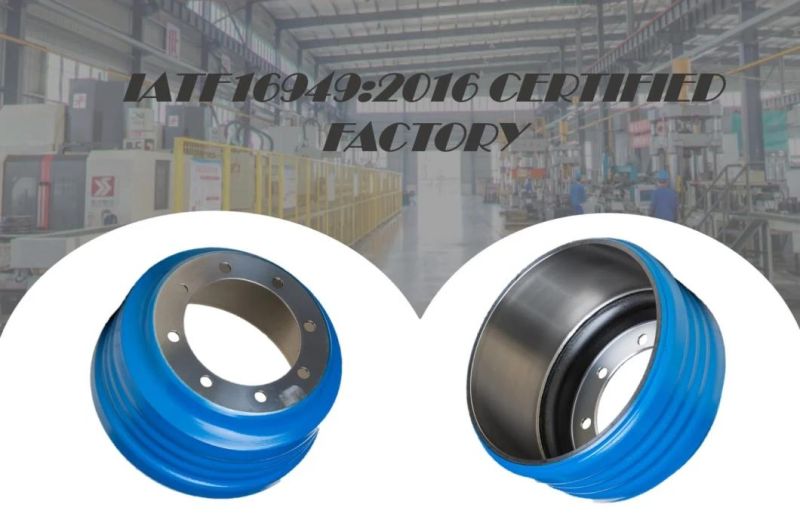

Commercial Vehicle OEM Lightweight Durable Bimetal Composite Brake Drum 16.5*7inches

Zhumadian Hengjiu Machinery Manufacturing Co., Ltd.

Transport Package：Fumigated Wooden Pallet Packaging
Specification：16.5"*7"
Trademark：HJ
Origin：China

Base Info

Model NO.：40007X
Production Capacity：500000,Year

Description

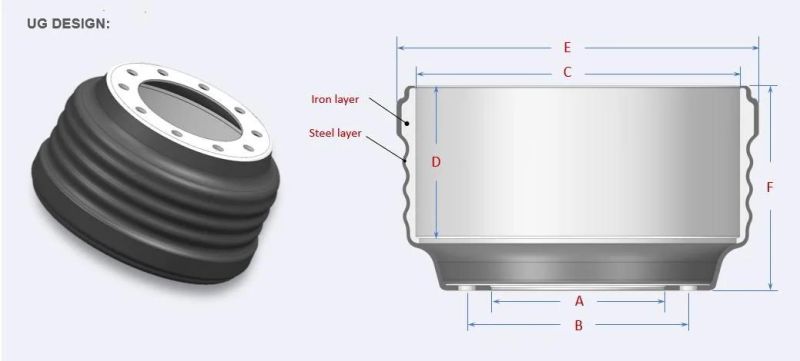

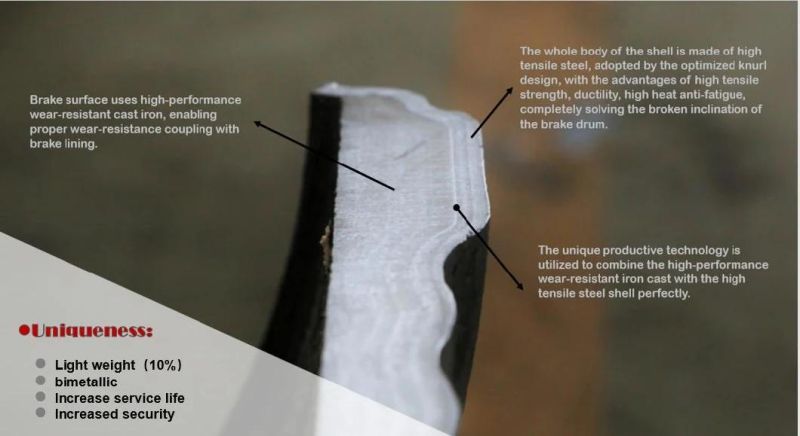

DRUM WEIGHT40.5 kgB BOLT CIRCLE DIAMETER275 mm DRUM MOUNTOUTBOARDC BRAKE SURFACE DIAMETER419.1 mm DRUM MATERIALZDG400/HT250 COMPOSITED BRAKE SHOE WIDTH194 mm NO.OF BOLT HOLES 8E OVERAL DIAMETER468 mmA PILOT DIAMETER228 mmF OVERAL DEPTH264.5 mm
Commercial Vehicle OEM Lightweight Durable Bimetal Composite Brake Drum 16.5*7inches

Commercial Vehicle OEM Lightweight Durable Bimetal Composite Brake Drum 16.5*7inches

Related products :

NO.	HJ Part No.	Weight	Key Sizes	Notes
1	96893B	40.5	16.5"×7" 10 Bolt 11.25" pilot 8.78" PCD	Share blank dies
2	96875B	40.5	16.5"×7" 10 Bolt 11.25" pilot 9" PCD	Share blank dies
3	MBD190L	40.5	16.5"×7" 10 Bolt 11.25" pilot 9" PCD	Share blank dies
4	40001X	40.5	16.5"×7" 10 Bolt 11.25" pilot 8.78" PCD	Share blank dies
5	96864B	40.5	16.5"×7" 10 Bolt 11.25" pilot 8.78" PCD	Share blank dies

Tolerance:	0.0001-0.1mm
Finish:	Shot blasting,Cleaning,Painting, Rust proof processing surface

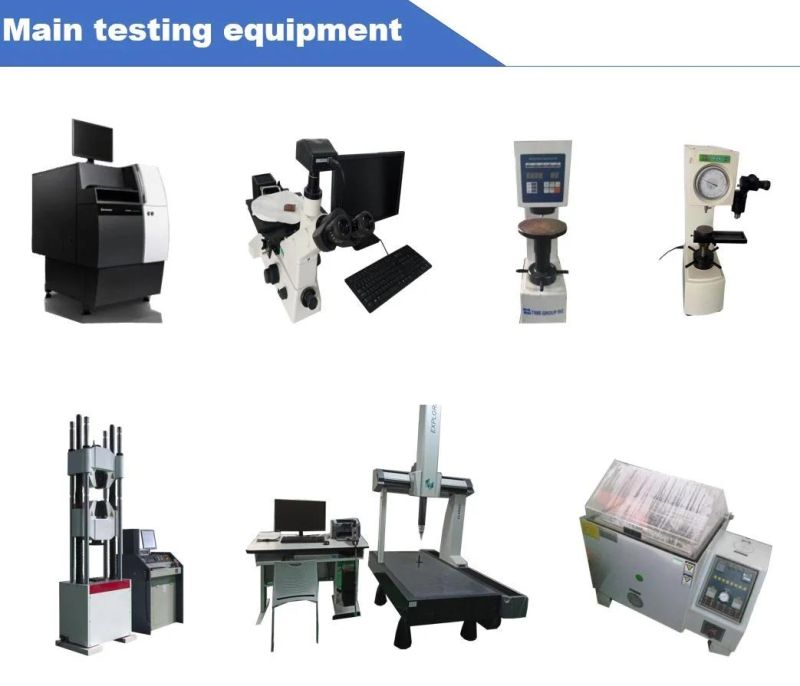

Inspection:	Key dementions 100% inspection on line and 100% inspection before shipping
Package:	Standard suitable package/pallet or container/as per customized specifications
Payment Terms:	30% T/T in advance,the balance before delivery
Shipment Terms:	1.0-100kg :air freight priority2.>100kg:Sea fright priority
Trade Terms:	EXW,FOB
Drawing Format:	PDF,DWG,CAD,UG
Notes:	The products shown here is only to present the scope of our business activities,We can manufacture custom parts

Step	Item	Description
1	Quotation	We will quote you the products according to your requirements(drawing or sample,material,quantity,weight,and other special requirements)
2	Design	If both parties agree on the quotation, we will start to design the product mold and process according to the requirements of your product drawings or samples, and send the design results to you for confirmation.
3	Mould making	We will spend a certain amount of time to make molds or entrust three parties to make molds.
4	First trial	After the mold is made, we will start the mold trial and start the first trial production. If necessary, we will send you the sample.
5	Quality confirm	You may confirm the product quality according to sample or you can come to our plant for checking and accepting the product quality,If you need adjust the product,we can help you to adjust the product design.
6	Order	If PPAP or sample quality is approved by you, you can place an order with us. We will make batch production strictly in accordance with the production process control document. You can also come to the factory for inspection before the first batch of products are delivered
7	Delivery	Ship the products after they're completely ok according your delivery requirement, Using fumigate pallet packaging.
